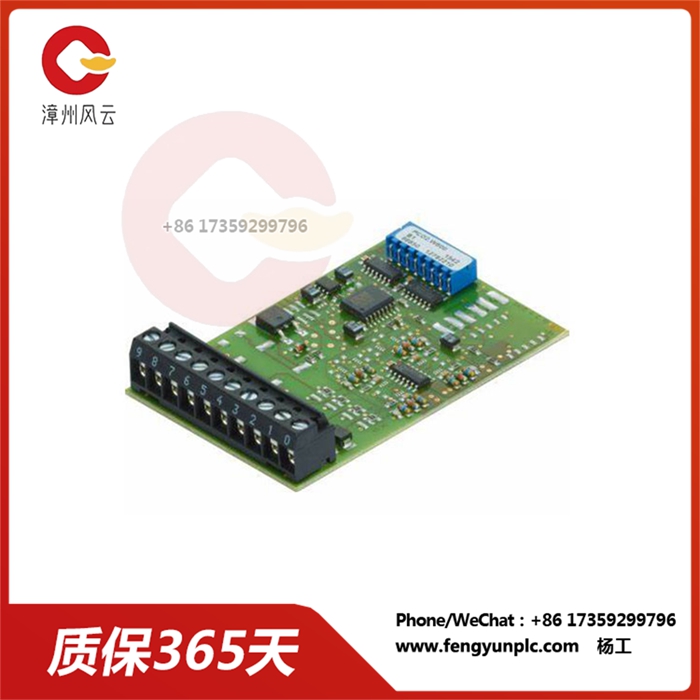

PCD2.W610 高速度模拟输出模块

PCD2.W610 高速度模拟输出模块

产品概述

The PCD2.W610 是由 Saia-Burgess Controls 开发的用于工业控制系统的高速模拟输出模块。它提供四个独立的模拟输出通道，可配置为生成电压或电流信号。该模块专为需要快速、精确模拟输出的应用而设计，例如伺服控制、过程控制和数据采集。

主要特点

4 个独立的模拟输出通道

可配置电压或电流输出

12 位分辨率

输出更新速率高达 1 kHz

短路和过载保护

通道和电源之间的电流隔离

技术规格

产品编号：PCD2的。W610型

制造者：Saia-Burgess 控制

组件类型：工业控制模块

子组件类型：模拟量输出模块

通道数：4

输出类型：电压或电流

分辨率：12 位

输出更新速率：高达 1 kHz

输出范围： 电压：0 V 至 10 V，-10 V 至 +10 V

电流：0 mA 至 20 mA

电源：24 VDC

功耗：约 5 W

工作温度：-20°C 至 60°C

储存温度：-40°C 至 80°C

相对湿度：0% 至 95%（非冷凝）

PCD2.W610 高速度模拟输出模块

Product overview

The PCD2.W610 is a high-speed analog output module developed by Saia-Burgess Controls for industrial control systems. It provides four independent analog output channels that can be configured to generate voltage or current signals. The module is designed for applications that require fast, accurate analog outputs, such as servo control, process control, and data acquisition.

Main feature

4 independent analog output channels

Configurable voltage or current output

12-bit resolution

Output update rate up to 1 kHz

Short circuit and overload protection

Current isolation between channel and power supply

Technical specification

Product number: PCD2. W610

Manufacturer: Saia-Burgess Controls

Component type: Industrial control module

Subcomponent type: analog output module

Number of channels: 4

Output type: voltage or current

Resolution: 12 bits

Output update rate: up to 1 kHz

Output range: Voltage: 0 V to 10 V, -10 V to +10 V

Current: 0 mA to 20 mA

Power Supply: 24 VDC

Power consumption: about 5 W

Operating temperature: -20°C to 60°C

Storage temperature: -40°C to 80°C

Relative humidity: 0% to 95% (non-condensing)
