HMCPE100T3C 电机电路保护器

HMCPE100T3C 电机电路保护器

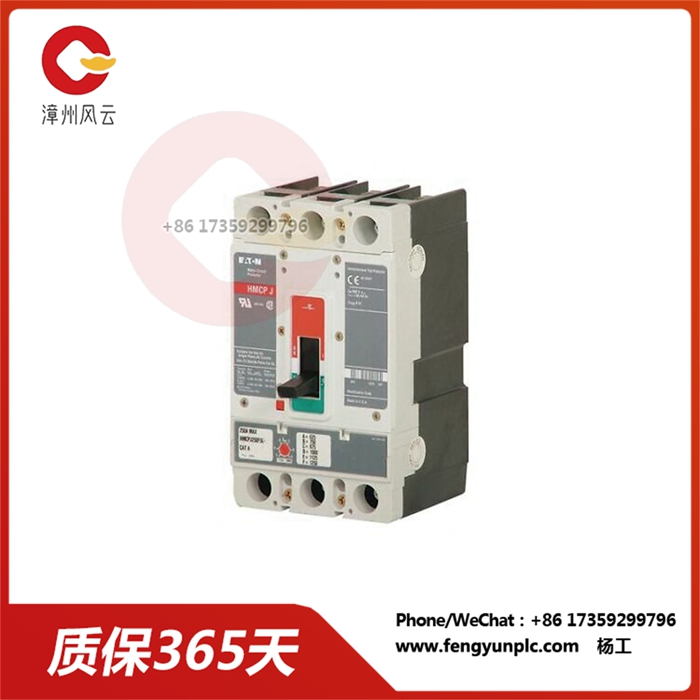

HMCPE100T3C电机电路保护器 （MCP） 是一种塑壳断路器 （MCCB），设计用于保护电机免受工业和商业应用中的过流情况的影响。它提供短路和过载保护，以确保电机的安全可靠。

主要特点：

电机保护：专为电机应用而设计，提供精确的过载和短路保护。

磁力跳闸：利用磁跳闸机构快速响应大电流故障，防止损坏电机。

可调过载保护：允许设置过载电流阈值以匹配特定的电机要求。

不可互换的脱扣单元：确保脱扣单元不会被篡改，保持保护设置的完整性。

直通式连接类型：提供方便的线路和负载侧连接，便于安装。

模制外壳设计：提供坚固的结构和防止环境危害的保护。

应用：

HMCPE100T3C电机电路保护器适用于广泛的电机应用，包括：

工业电机：保护各种工业机械中的电机，如泵、风扇、压缩机和输送机。

商用电机：保护空调机组、制冷系统和自动扶梯等商业设备中的电机。

暖通空调系统：确保供暖、通风和空调 （HVAC） 系统中电机的保护。

机床：保护钻床、铣床和车床等机床中的电机。

输送系统：保护输送系统中的电机，用于物料搬运和运输。

好处：

电机安全：防止过流情况造成的电机损坏，延长电机寿命并减少停机时间。

提高系统可靠性：确保电机和整个系统的可靠运行。

降低维护成本：最大限度地减少了因过流故障而导致的电机维修和更换的需要。

增强消防安全：防止因过热或短路引起的电气火灾。

符合标准：符合电机保护的相关电气安全标准。

规格：

规范价值

额定电流 100 安培

额定电压 480V 交流，600Y/347V 交流

两极 3

行程类型 仅磁性

磁跳闸范围 500-1500 安培

框架尺寸 例如

中断额定值 400V 时为 15kA

外壳类型 NEMA 1

安装方式 DIN导轨或面板安装

工作温度 -40°C 至 +40°C

尺寸（长 x 宽 x 高） 150 x 100 x 80 毫米

重量 1.5 千克

HMCPE100T3C 电机电路保护器

The HMCPE100T3C Motor Circuit Protector (MCP) is a plastic-case circuit breaker (MCCB) designed to protect motors from overcurrent conditions in industrial and commercial applications. It provides short circuit and overload protection to ensure the safety and reliability of the motor.

Main features:

Motor protection: Designed for motor applications, it provides precise overload and short circuit protection.

Magnetic trip: The use of magnetic trip mechanism to quickly respond to large current faults to prevent damage to the motor.

Adjustable overload protection: Allows overload current thresholds to be set to match specific motor requirements.

Non-interchangeable trip unit: ensures that the trip unit cannot be tampered with, maintaining the integrity of the protection Settings.

Straight-through connection type: Provides convenient line and load side connection for easy installation.

Molded housing design: provides robust construction and protection against environmental hazards.

Applications:

The HMCPE100T3C motor circuit protector is suitable for a wide range of motor applications, including:

Industrial motors: Protect motors in various industrial machinery, such as pumps, fans, compressors and conveyors.

Commercial motors: Protect motors in commercial equipment such as air conditioning units, refrigeration systems and escalators.

HVAC systems: Ensure the protection of motors in heating, ventilation and air conditioning (HVAC) systems.

Machine tools: Protect motors in machine tools such as drill presses, milling machines and lathes.

Conveyor system: Protects the motor in the conveyor system for material handling and transportation.

Benefits:

Motor safety: Prevents motor damage due to overcurrent conditions, prolongs motor life and reduces downtime.

Improve system reliability: Ensure reliable operation of the motor and the entire system.

Reduced maintenance costs: Minimizes the need for motor repair and replacement due to overcurrent failures.

Enhanced fire safety: Prevent electrical fires caused by overheating or short circuits.

Compliance: Meets the relevant electrical safety standards for motor protection.

Specifications:

Normative value

Rated current 100 amps

Rated voltage 480V AC, 600Y/347V AC

Bipolar 3

Stroke type magnetic only

Magnetic trip range 500-1500 amps

Frame size for example

15kA at 400V interrupt rating

Shell type NEMA 1

Mounting method DIN rail or panel mounting

Operating temperature -40°C to +40°C

Dimensions (L x W x H) 150 x 100 x 80 mm

Weight 1.5 kg
