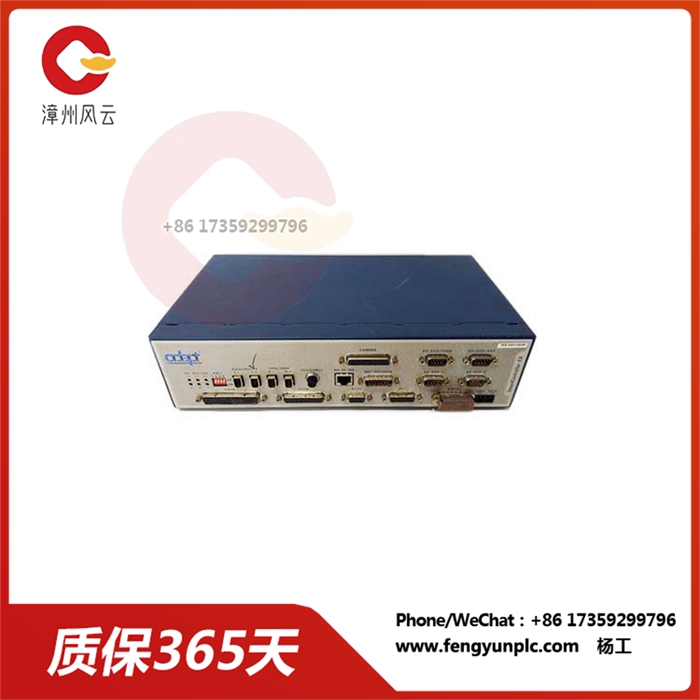

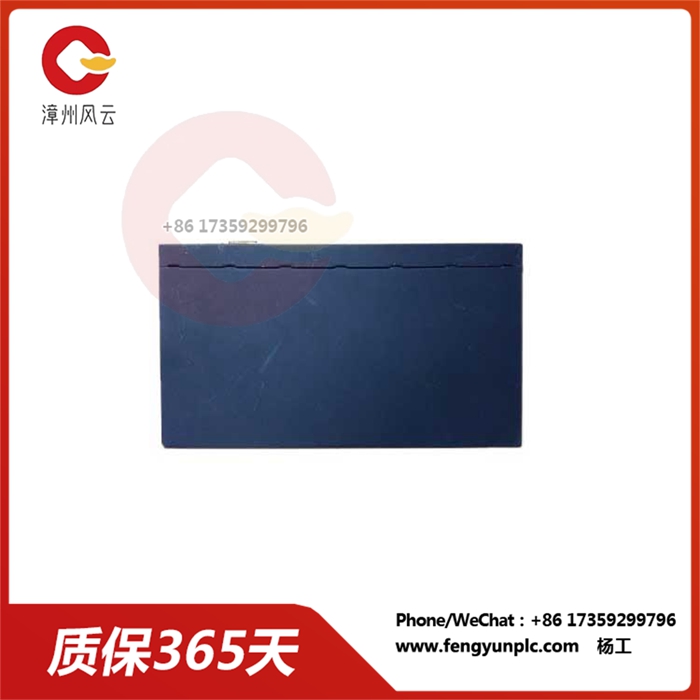

20000-310 智能M16运动接口模块

20000-310 智能M16运动接口模块

ABB 20000-310智能M16运动接口模块是一款高性能、多功能的运动控制解决方案，专为工业自动化系统而设计。它是控制器和伺服驱动器之间的重要接口，能够精确和协调地控制自动化机械中的各种运动轴。

主要特点：

运动控制轴：

支持多个运动控制轴，允许同步控制多个伺服驱动器和连接的电机。

能够高效控制复杂的多轴运动系统，如机械臂、龙门系统和机床。

伺服驱动器兼容性：

与各种 M16 伺服驱动器兼容，确保无缝集成到现有的 M16 运动控制系统中。

支持各种伺服驱动器型号和额定功率，以满足不同的应用要求。

通讯接口：

配备标准通信接口，如以太网或 RS-485，可与控制器和其他自动化组件进行可靠通信。

能够集成到更大的控制网络中，并促进数据交换和实时控制。

运动控制算法：

采用先进的运动控制算法，确保精确、平稳和动态的运动控制。

支持位置控制、速度控制、转矩控制等多种运动控制模式，满足多样化的应用需求。

诊断功能：

可能包括内置诊断工具，用于监控模块的运行状况、检测运动控制错误并识别伺服驱动器的潜在问题。

有助于保持系统可靠性并防止意外停机。

坚固的结构：

专为灰尘、湿气、振动和极端温度等恶劣工业环境而设计。

确保在苛刻的工业环境中可靠运行并延长使用寿命。

应用：

ABB 20000-310智能M16运动接口模块在各种工业自动化环境中得到了广泛的应用，包括：

机器人系统：实现对机械臂的精确控制，用于焊接、装配和材料搬运等任务。

机床：控制车床、铣床、钻床等机床的运动，实现高精度加工操作。

包装系统：协调产品和包装材料在自动化包装线中的移动。

输送系统：控制传送带的速度和方向，以实现高效的物料搬运和产品运输。

运动模拟系统：为培训、研究和娱乐应用中使用的模拟器提供精确的运动控制。

20000-310 智能M16运动接口模块

The ABB 20000-310 Intelligent M16 Motion Interface module is a high-performance, versatile motion control solution designed specifically for industrial automation systems. It is an important interface between the controller and the servo drive, enabling precise and coordinated control of various axes of motion in automated machinery.

Main features:

Motion control axis:

Multiple motion control shafts are supported, allowing simultaneous control of multiple servo drives and connected motors.

Efficient control of complex multi-axis motion systems such as robotic arms, gantry systems and machine tools.

Servo driver compatibility:

Compatible with a wide range of M16 servo drives, ensuring seamless integration into existing M16 motion control systems.

Various servo drive models and power ratings are supported to meet different application requirements.

Communication interface:

Equipped with standard communication interfaces such as Ethernet or RS-485 for reliable communication with controllers and other automation components.

Enables integration into larger control networks and facilitates data exchange and real-time control.

Motion control algorithm:

Advanced motion control algorithm is adopted to ensure accurate, smooth and dynamic motion control.

Support position control, speed control, torque control and other motion control modes to meet diverse application needs.

Diagnostic functions:

This may include built-in diagnostic tools to monitor module health, detect motion control errors, and identify potential problems with servo drives.

Helps maintain system reliability and prevent unplanned downtime.

Robust construction:

Designed for harsh industrial environments such as dust, moisture, vibration and extreme temperatures.

Ensures reliable operation and extended service life in demanding industrial environments.

Applications:

ABB 20000-310 Intelligent M16 Motion interface modules are used in a wide range of industrial automation environments, including:

Robotic systems: Precise control of robotic arms for tasks such as welding, assembly and material handling.

Machine tool: Control the movement of lathe, milling machine, drilling machine and other machine tools to achieve high-precision machining operation.

Packaging systems: Coordinate the movement of products and packaging materials in automated packaging lines.

Conveyor system: Control the speed and direction of the conveyor belt for efficient material handling and product transportation.

Motion simulation systems: Provide precise motion control for simulators used in training, research and entertainment applications.
