3IF661.9 2005接口模块 电气隔离且支持网络

3IF661.9 2005接口模块 电气隔离且支持网络

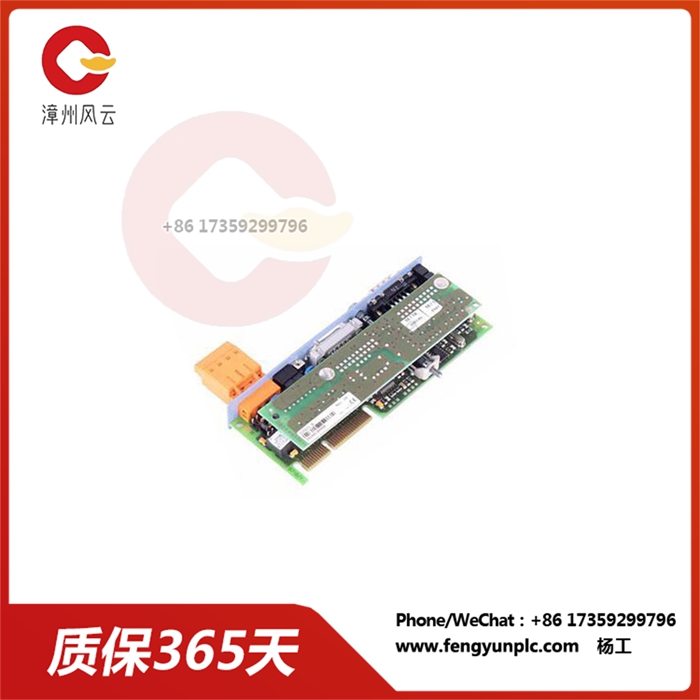

3IF661.9是贝加莱于2005年制造的接口模块。 它是一个电气隔离且具有网络功能的模块，允许用户将贝加莱PLC作为从站连接到PROFIBUS DP网络。 3IF661.9 是一款多功能且可靠的模块，可用于广泛的工业自动化应用。

主要特点：

PROFIBUS DP从接口：3IF661.9提供PROFIBUS DP从接口，允许贝加莱PLC与PROFIBUS DP网络上的其他设备进行通信。这使PLC能够与其他设备交换数据，如传感器，驱动器和其他PLC。）交换数据。

电气隔离：3IF661.9为电气隔离，这意味着PROFIBUS DP网络上的电信号与贝加莱PLC的内部电路隔离。这种隔离可保护 PLC 免受网络上的电气故障和噪声的影响。

网络能力：3IF661.9 支持网络，这意味着它可以使用标准PROFIBUS DP电缆连接到PROFIBUS DP网络。这使得该模块可以很容易地集成到现有的PROFIBUS DP网络中。

紧凑型设计：3IF661.9 是一个紧凑的模块，可以很容易地安装在 DIN 导轨上。这使得它非常适合在空间受限的应用中使用。

配置简单：3IF661.9可以使用贝加莱的Automation Studio软件轻松配置。该软件提供了一个用户友好的界面，用于设置模块的参数，例如站号和波特率。

应用：

3IF661.9适用于广泛的工业自动化应用，包括：

机器控制：将贝加莱PLC连接到机器控制应用中的PROFIBUS DP网络，如包装机、数控机床和机器人系统。

过程控制：将贝加莱PLC集成到过程控制应用中的PROFIBUS DP网络中，如石油和天然气精炼厂、化工厂和发电厂。

楼宇自动化：在楼宇自动化应用（如暖通空调系统、照明系统和安全系统）中将贝加莱PLC连接到PROFIBUS DP网络。

运输系统：将贝加莱PLC集成到运输系统中的PROFIBUS DP网络中，例如输送系统、分拣系统和行李处理系统。

技术规格：

接口：PROFIBUS DP从站

传输协议：PROFIBUS DP

站号：0 至 15

波特率：9600 bps 至 12 Mbit/s

电气隔离：250 V AC

网络能力：RS-485

电源：24 VDC

工作温度：-20°C 至 +60°C

防护等级：IP67

3IF661.9 2005接口模块 电气隔离且支持网络

3IF661.9 is an interface module manufactured by B&R in 2005. It is an electrically isolated and network-enabled module that allows users to connect a B&R PLC as a slave station to the PROFIBUS DP network. The 3IF661.9 is a versatile and reliable module for a wide range of industrial automation applications.

Main features:

PROFIBUS DP Slave Interface: 3IF661.9 provides a PROFIBUS DP slave interface that allows B&R PLC to communicate with other devices on the PROFIBUS DP network. This enables the PLC to exchange data with other devices such as sensors, drives, and other PLCS.) Exchange data.

Electrical isolation: 3IF661.9 is electrical isolation, which means that the electrical signals on the PROFIBUS DP network are isolated from the internal circuitry of B&R PLC. This isolation protects the PLC from electrical failures and noise on the network.

Network capability: 3IF661.9 supports networking, which means it can be connected to PROFIBUS DP networks using standard PROFIBUS DP cables. This allows the module to be easily integrated into existing PROFIBUS DP networks.

Compact design: The 3IF661.9 is a compact module that can be easily mounted on a DIN rail. This makes it ideal for use in space-constrained applications.

Simple configuration: The 3IF661.9 can be easily configured using B&R's Automation Studio software. The software provides a user-friendly interface for setting the parameters of the module, such as station number and baud rate.

Applications:

3IF661.9 is suitable for a wide range of industrial automation applications, including:

Machine control: Connect B&R PLCS to PROFIBUS DP networks in machine control applications such as packaging machines, CNC machine tools and robotic systems.

Process Control: Integrate B&R PLCS into PROFIBUS DP networks in process control applications such as oil and gas refineries, chemical plants and power plants.

Building automation: B&R PLC is connected to the PROFIBUS DP network in building automation applications such as HVAC systems, lighting systems and security systems.

Transport systems: Integration of B&R PLCS into the PROFIBUS DP network in transport systems such as conveyor systems, sorting systems and baggage handling systems.

Technical specifications:

Interface: PROFIBUS DP secondary station

Transmission protocol: PROFIBUS DP

Station number: 0 to 15

Baud rate: 9600 bps to 12 Mbit/s

Electrical isolation: 250 V AC

Network capability: RS-485

Power Supply: 24 VDC

Operating temperature: -20°C to +60°C

Protection level: IP67
