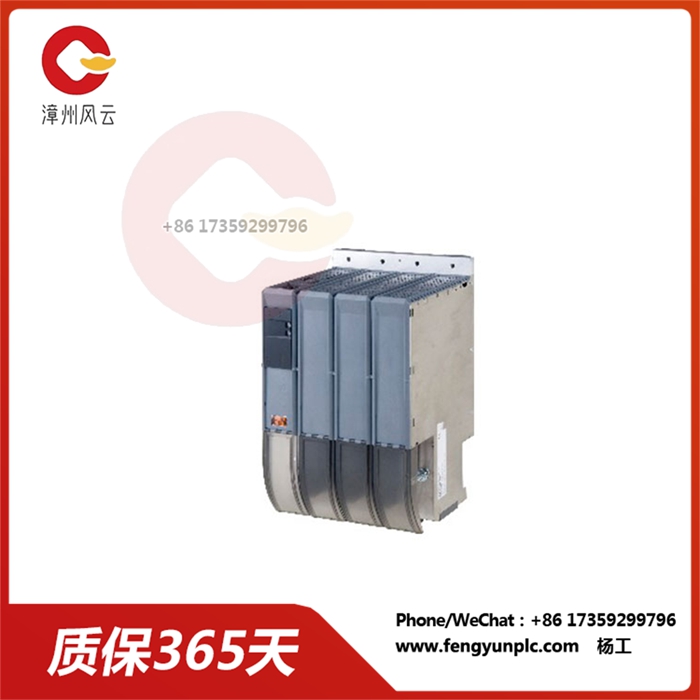

8BVP0880HW00.004-1 数字输入模块 控制器

8BVP0880HW00.004-1 数字输入模块 控制器

8BVP0880HW00.004-1数字量输入模块是贝加莱X20自动化系统的一个组件。它用于将数字输入信号连接到控制器，例如开关、传感器和编码器。该模块具有 8 个数字输入通道，每个通道均可配置为单端或差分输入。该模块还为输入通道提供反极性保护和短路保护。

8BVP0880HW00.004-1 数字量输入模块的主要特性：

8 个数字输入通道：支持8个独立的数字输入信号。

单端或差分输入：每个通道都可以配置为单端或差分输入。

反极性保护：防止输入线路上的极性意外反转。

短路保护：保护模块免受输入线路短路的影响。

高输入阻抗：将信号失真降至最低，并确保准确的信号表示。

快速响应时间：能够快速处理实时控制应用的输入信号。

8BVP0880HW00.004-1数字量输入模块的应用：

机器控制：监控机器状态，跟踪生产过程，并根据数字输入信号控制执行器。

过程控制：使用来自传感器的数字输入信号监控过程参数，例如温度、压力和流量。

安全系统：使用来自安全设备的数字输入信号实现安全联锁和紧急停止功能。

位置传感：使用来自编码器和其他位置传感器的数字输入信号跟踪物体的位置和移动。

事件检测：使用数字输入信号检测事件，例如按钮按下、限位开关激活和机器故障。

8BVP0880HW00.004-1 数字输入模块 控制器

The 8BVP0880HW00.004-1 Digital input module is a component of B&R X20 automation system. It is used to connect digital input signals to controllers such as switches, sensors and encoders. The module has eight digital input channels, each of which can be configured as single-ended or differential inputs. The module also provides reverse polarity protection and short circuit protection for the input channels.

8BVP0880HW00.004-1 Main features of the digital input module:

8 digital input channels: Support 8 independent digital input signals.

Single-ended or differential input: Each channel can be configured as single-ended or differential input.

Reverse polarity protection: prevents unexpected polarity reversals on the input line.

Short circuit protection: Protects the module from short circuit of the input line.

High input impedance: Minimizes signal distortion and ensures accurate signal representation.

Fast response time: The ability to quickly process input signals for real-time control applications.

8BVP0880HW00.004-1 Application of digital input module:

Machine control: Monitor the state of the machine, track the production process, and control the actuator according to the digital input signal.

Process control: Use digital input signals from sensors to monitor process parameters, such as temperature, pressure, and flow.

Safety system: Use digital input signals from safety equipment to achieve safety interlocking and emergency stop functions.

Position sensing: Use digital input signals from encoders and other position sensors to track the position and movement of objects.

Event detection: Use digital input signals to detect events such as button presses, limit switch activation, and machine failure.

8BVP0880HW00.004-1 数字输入模块 控制器
