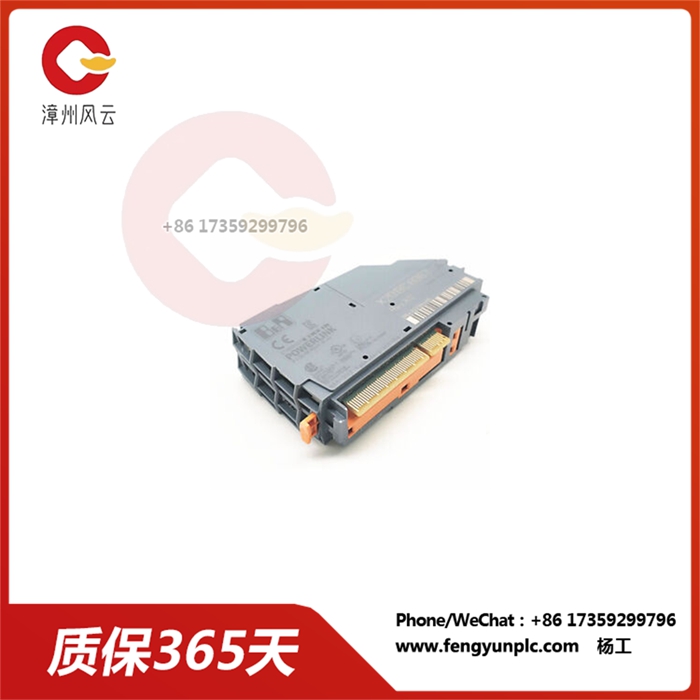

X20BC8084 数字输入模块 控制器

X20BC8084 数字输入模块 控制器

X20BC8084是用于控制器的数字输入模块，旨在与各种类型的数字输入信号连接。它为扩展控制系统的数字输入功能提供了紧凑而高效的解决方案，从而能够监控和处理外部事件和信号。

X20BC8084数字量输入模块的主要特点：

8 个数字输入：提供 8 个独立的数字输入通道，用于连接各种传感器、开关和其他数字信号源。

高速加工：支持扫描速率高达 1 kHz 的高速信号处理，确保及时响应输入变化。

电气隔离：在输入通道和控制器之间提供电气隔离，保护控制器免受外部噪声和电压尖峰的影响。

LED 状态指示灯：包括每个输入通道的 LED 状态指示灯，提供输入状态的视觉指示。

紧凑型设计：采用紧凑的DIN导轨安装设计，可节省控制柜安装空间。

X20BC8084数字量输入模块的应用：

机器控制：监控机器状态，如限位开关、安全联锁和传感器输出，确保安全高效的运行。

过程控制：跟踪过程参数，如阀门位置、流量和温度信号，以实现准确的过程监测和控制。

报警系统：检测火灾报警、入侵报警、机器故障等报警情况，及时通知和响应。

数据采集系统：从传感器和执行器收集数据，用于分析、可视化和决策。

定制自动化解决方案：集成到定制自动化系统中，适用于需要数字输入监控和处理的各种应用。

使用 X20BC8084 数字输入模块：

安装：

将X20BC8084数字输入模块安装在控制柜内的DIN导轨上，确保正确对齐和安全安装。

按照用户手册中提供的接线图和规格将电源线连接到模块的电源端子。

将传感器、开关和其他数字信号源的输入电缆连接到模块的输入端子，确保适当的极性和信号兼容性。

X20BC8084 数字输入模块 控制器

The X20BC8084 is a digital input module for controllers designed to connect with various types of digital input signals. It provides a compact and efficient solution for expanding the digital input capabilities of the control system, enabling the monitoring and processing of external events and signals.

Main features of X20BC8084 digital input module:

8 digital inputs: Provides 8 independent digital input channels for connecting various sensors, switches and other digital signal sources.

High-speed processing: Supports high-speed signal processing with scan rates up to 1 kHz, ensuring timely response to input changes.

Electrical isolation: Provides electrical isolation between the input channel and the controller, protecting the controller from external noise and voltage spikes.

LED Status indicator: Includes LED status indicator for each input channel to provide visual indication of input status.

Compact design: With compact DIN rail mounting design, control cabinet installation space is saved.

X20BC8084 digital input module application:

Machine control: Monitor machine status such as limit switches, safety interlocks and sensor outputs to ensure safe and efficient operation.

Process control: Track process parameters such as valve position, flow and temperature signals for accurate process monitoring and control.

Alarm system: detect fire alarm, intrusion alarm, machine failure and other alarms, timely notification and response.

Data acquisition systems: Collect data from sensors and actuators for analysis, visualization, and decision making.

Custom automation solutions: Integrated into custom automation systems for a variety of applications that require digital input monitoring and processing.

Using the X20BC8084 digital input module:

Installation:

Mount the X20BC8084 digital input module on the DIN rail inside the control cabinet to ensure proper alignment and safe installation.

Connect the power cable to the power terminal of the module according to the wiring diagram and specifications provided in the user manual.

Connect input cables for sensors, switches, and other digital signal sources to the input terminals of the module to ensure proper polarity and signal compatibility.
