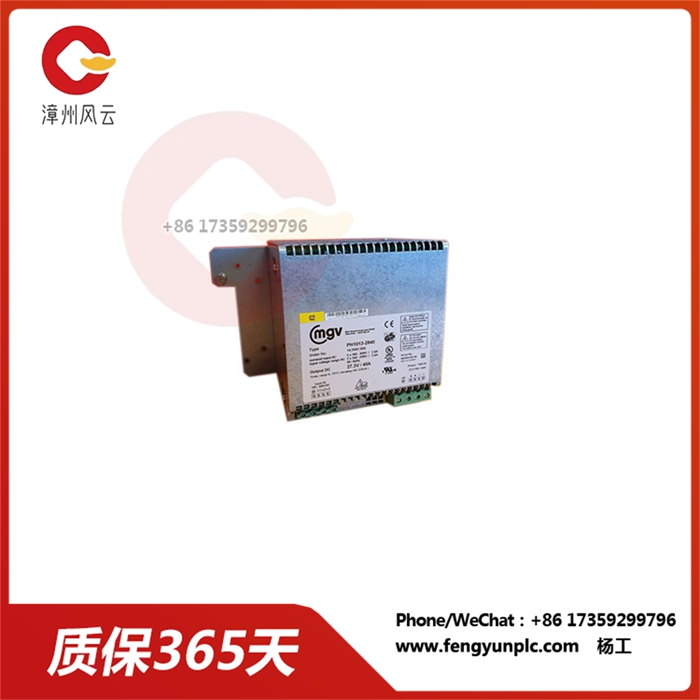

PH1013-2840 MGV 开关电源

PH1013-2840 MGV 开关电源

PH1013-2840 是 MGV 的 DIN 导轨安装式 AC/DC 电源，设计用于各种工业应用。 它为控制系统、机器人设备和其他自动化组件提供可靠高效的电源。 以下是 PH1013-2840 MGV 开关电源 的主要特性、应用和用途摘要：

主要特点：

高输出功率：提供 27 的高输出功率。3 VDC 在 40 安培，能够为要求苛刻的自动化设备供电。

宽输入电压范围：接受 3 × 340-550 VAC 的宽输入电压范围，适用于各种电源配置。

高效率：效率高达90%，减少能源消耗和热量产生。

紧凑型设计：设计紧凑，可节省控制柜和外壳的安装空间。

保护特性：包括过压保护，过流保护，短路保护，确保安全运行。

应用：

工业自动化系统：为控制柜供电，PLCs，HMI面板，和其他自动化组件。

机器人设备：为机械臂、夹持器和运动控制系统供电。

机床控制系统：为机床、数控设备和物料搬运系统提供动力。

测试和测量设备：为测试设备、数据采集系统和实验室仪器供电。

定制自动化解决方案：集成到定制自动化系统中，适用于各种工业应用。

用法：

安装：

将 PH1013-2840 电源模块安装在控制面板或外壳内的 DIN 导轨上，确保正确安装和通风。

按照用户手册中提供的接线图和规格将输入电源线连接到模块的输入端子。

将输出电源线连接到模块的输出端子，并将它们路由到连接的设备。

配置：

使用模块上的电压调节电位器（如果可用）将输出电压设置为所需值。

根据特定应用的需要配置任何其他设置，例如电流限制和保护参数。

测试和调试：

对电源模块进行全面测试，以确保正确的电压输出、电流调节和保护功能。

执行调试测试以验证电源模块与连接设备之间的正确交互。

验证电源系统在预期应用中的整体功能和性能。

PH1013-2840 MGV 开关电源

The PH1013-2840 is the MGV's DIN rail mounted AC/DC power supply designed for a variety of industrial applications. It provides a reliable and efficient power source for control systems, robotic equipment and other automation components. The following is a summary of the main features, applications and uses of the PH1013-2840 MGV switching power supply:

Main features:

High output power: provides 27 high output power. 3 VDC at 40 amps, capable of powering demanding automation equipment.

Wide input voltage range: Accepts a wide input voltage range of 3 × 340-550 VAC for various power supply configurations.

High efficiency: up to 90% efficiency, reducing energy consumption and heat generation.

Compact design: Compact design saves installation space for control cabinets and enclosures.

Protection features: including over voltage protection, over current protection, short circuit protection, to ensure safe operation.

Applications:

Industrial automation systems: Power control cabinets, PLCs, HMI panels, and other automation components.

Robotic equipment: Provides power for robotic arms, grippers and motion control systems.

Machine tool control systems: Power machine tools, CNC equipment and material handling systems.

Test and measurement equipment: Power test equipment, data acquisition systems and laboratory instruments.

Custom automation solutions: Integrated into custom automation systems for a variety of industrial applications.

Usage:

Installation:

Mount the PH1013-2840 power module on a DIN rail inside the control panel or housing to ensure proper installation and ventilation.

Connect the input power cable to the input terminal of the module according to the wiring diagram and specifications provided in the user manual.

Connect the output power cables to the output terminals of the module and route them to the connected devices.

Settings:

Use the voltage regulating potentiometer on the module (if available) to set the output voltage to the desired value.

Configure any additional Settings, such as current limits and protection parameters, according to the needs of the specific application.

Testing and debugging:

Power modules are thoroughly tested to ensure correct voltage output, current regulation and protection.

Debug tests are performed to verify proper interaction between the power module and the connected device.

Verify the overall functionality and performance of the power system in the intended application.
