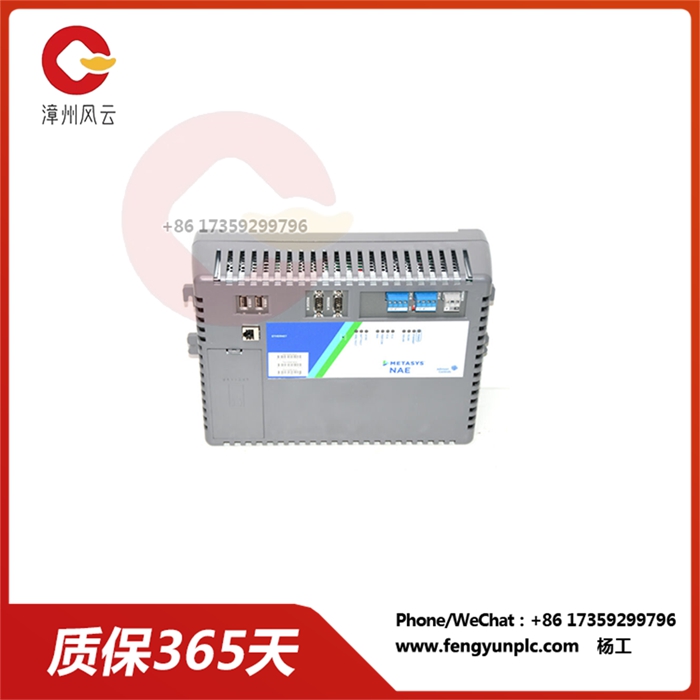

MS-NAE5510-3 网络引擎控制器通讯系统

MS-NAE5510-3 网络引擎控制器通讯系统

主要特点：

BACnet/IP 和 BACnet/SC 协议支持：MS-NAE5510-3 支持 BACnet/IP 和 BACnet/SC 协议，支持与各种符合BACnet标准的设备和应用程序进行通信。

多个通信端口：网络引擎提供各种通信端口，包括以太网，RS-232串口，RS-485串口，和 USB，允许连接到各种类型的设备和网络。

数据记录和趋势：该模块提供数据记录和趋势分析功能，实现建筑系统的历史数据分析和性能监控。

报警管理：MS-NAE5510-3 支持报警管理，提供系统警报和故障的集中通知和处理。

可扩展架构：网络引擎可以集成到更大的Metasys系统中，支持可扩展且灵活的 BMS 解决方案。

技术规格：

处理器：高性能工业处理器

记忆：用于程序存储的RAM和闪存，数据处理，和日志记录的 RAM 和闪存

通讯端口：以太网RS-232串口，RS-485串口，USB接口

支持的协议：BACnet/IP、BACnet/SC、LonWorks、Modbus、M-Bus、KNX

工作电压：24 VAC

工作温度：0°C 至 40°C

工作湿度：0% 至 95%，无冷凝

应用：

江森自控 MS-NAE5510-3 网络发动机控制器通信系统广泛应用于各种类型的建筑物，包括：

商业建筑：网络引擎常用于写字楼、零售空间、酒店等，用于集成和控制暖通空调系统、照明系统、门禁系统、安防系统等。

教育机构：MS-NAE5510-3 用于学校、大学和研究机构，以管理能源消耗、优化教室环境并确保安全。

医疗机构：网络引擎部署在医院、诊所和疗养院，以控制关键系统，如温度和湿度控制、空气质量监测和患者监测系统。

政府大楼：MS-NAE5510-3 用于政府办公室、法院和军事基地，以管理能源效率、增强安全性并确保遵守法规。

总体而言，江森自控 MS-NAE5510-3 网络发动机控制器通信系统在现代楼宇自动化中发挥着至关重要的作用，可在广泛的楼宇应用中实现集中控制、高效操作并提高居住者的舒适度和安全性。

MS-NAE5510-3 网络引擎控制器通讯系统

Main features:

BACnet/IP and BACnet/SC protocol support: MS-NAE5510-3 supports BACnet/IP and BACnet/SC protocols, enabling communication with a wide range of BACNET-compliant devices and applications.

Multiple communication ports: The network engine offers a variety of communication ports, including Ethernet, RS-232 serial port, RS-485 serial port, and USB, allowing connections to various types of devices and networks.

Data logging and trend: This module provides data logging and trend analysis functions to realize historical data analysis and performance monitoring of building systems.

Alarm Management: MS-NAE5510-3 supports alarm management, providing centralized notification and handling of system alarms and failures.

Scalable architecture: The network engine can be integrated into larger Metasys systems, supporting scalable and flexible BMS solutions.

Technical specifications:

Processor: High performance industrial processor

Memory: RAM and flash memory for program storage, data processing, and logging

Communication port: Ethernet RS-232 serial port, RS-485 serial port, USB interface

Supported protocols: BACnet/IP, BACnet/SC, LonWorks, Modbus, M-Bus, KNX

Operating voltage: 24 VAC

Operating temperature: 0°C to 40°C

Operating humidity: 0% to 95%, no condensation

Applications:

Johnson Controls MS-NAE5510-3 Networked engine controller communication systems are used in a wide variety of buildings, including:

Commercial buildings: Network engines are commonly used in office buildings, retail Spaces, hotels, etc., for integrating and controlling HVAC systems, lighting systems, access control systems, security systems, etc.

Educational institutions: MS-NAE5510-3 is used in schools, universities, and research institutions to manage energy consumption, optimize classroom environments, and ensure safety.

Healthcare: Network engines are deployed in hospitals, clinics, and nursing homes to control critical systems such as temperature and humidity control, air quality monitoring, and patient monitoring systems.

Government Buildings: MS-NAE5510-3 is used in government offices, courthouses and military bases to manage energy efficiency, enhance security and ensure compliance with regulations.

Overall, the Johnson Autonomous MS-NAE5510-3 Network engine controller communication system plays a vital role in modern building automation, enabling centralized control, efficient operation and improved occupant comfort and safety in a wide range of building applications.

MS-NAE5510-3 网络引擎控制器通讯系统
