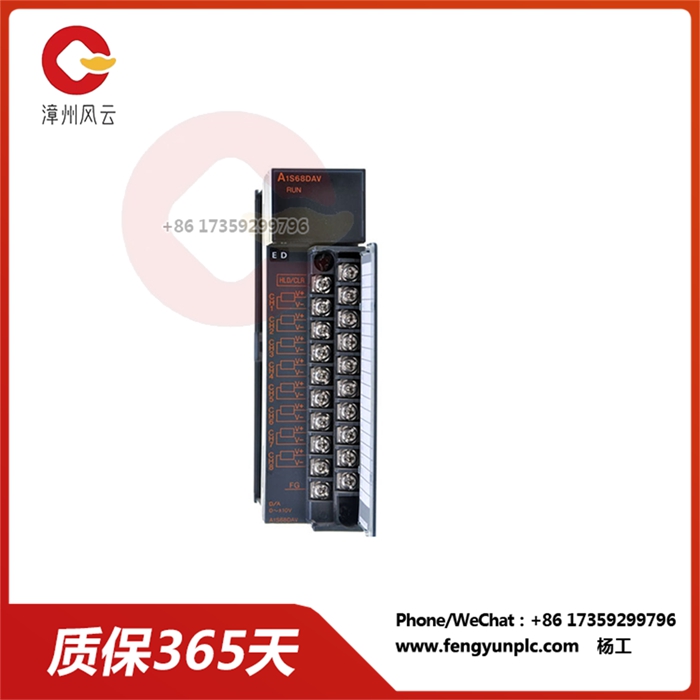

MITSUBISHI A1S68DAV 通信模块

MITSUBISHI A1S68DAV 通信模块

三菱A1S68DAV是由三菱电机制造的 8 通道模拟输出模块。 它旨在将来自可编程逻辑控制器 （PLC） 或其他控制设备的数字信号转换为可用于控制执行器、阀门、和其他设备。

三菱A1S68DAV模拟量输出模块的主要特点：

8 个模拟输出通道：

每个通道可输出-10V至+10V的电压

分辨率为 12 位

输出更新速率高达 2。5 千赫兹

D/A 转换：

将来自PLC或其他控制设备的数字信号转换为模拟电压信号

使用高性能数模转换器 （DAC） 实现准确可靠的输出

隔离：

每个通道都与PLC和其他通道隔离，以防止噪声和接地故障

隔离电压： 2500Vrms

紧凑型设计：

The module is designed for DIN rail mounting in a control cabinet

它是紧凑的尺寸，易于在狭小空间内安装

应用：

过程控制

机器控制

测试与测量

数据采集

附加功能：

短路保护：

每个通道都有短路保护，以防止损坏模块

过压保护：

每个通道都具有过压保护，以防止损坏模块

状态 LED：

该模块具有指示每个通道状态的 LED

与三菱电机 PLC 兼容：

该模块与各种三菱电机 PLC 兼容

总体而言，三菱A1S68DAV是一款多功能且可靠的模拟输出模块，非常适合各种工业应用。它的八个通道、高分辨率和快速更新速率使其成为过程控制、机器控制、测试和测量以及数据采集的宝贵工具。

MITSUBISHI A1S68DAV 通信模块

The Mitsubishi A1S68DAV is an 8-channel analog output module manufactured by Mitsubishi Electric. It is designed to convert digital signals from programmable logic controllers (PLCS) or other control devices into ones that can be used to control actuators, valves, and other devices.

The main features of Mitsubishi A1S68DAV analog output module:

8 analog output channels:

Each channel can output voltage from -10V to +10V

The resolution is 12 bits

Output update rate up to 2. 5 kilohertz

D/A conversion:

Converts a digital signal from a PLC or other control device into an analog voltage signal

High performance digital-to-analog converters (DAC) for accurate and reliable output

Isolation:

Each channel is isolated from the PLC and other channels to prevent noise and ground failures

Isolation voltage: 2500Vrms

Compact design:

The module is designed for DIN rail mounting in a control cabinet

It is compact in size and easy to install in tight Spaces

Applications:

Process control

Machine control

Test and measurement

Data acquisition

Additional features:

Short circuit protection:

Each channel has short circuit protection to prevent damage to the module

Overvoltage protection:

Each channel has overvoltage protection to prevent damage to the module

Status LED:

The module has leds indicating the status of each channel

Compatible with Mitsubishi Electric PLC:

The module is compatible with various Mitsubishi Electric PLCS

Overall, the Mitsubishi A1S68DAV is a versatile and reliable analog output module that is well suited for a variety of industrial applications. Its eight channels, high resolution, and fast update rate make it an invaluable tool for process control, machine control, test and measurement, and data acquisition.
