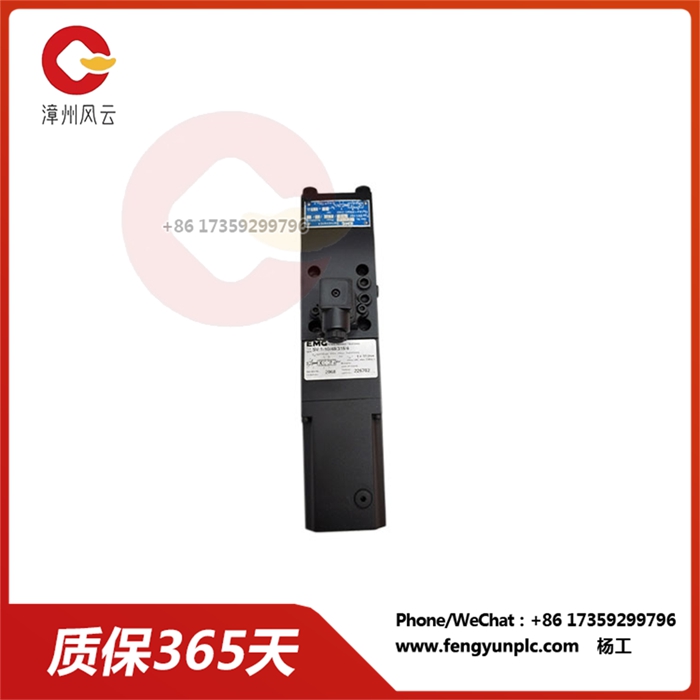

SV1-10483156 伺服阀

SV1-10483156 伺服阀

SV1-10483156是电液伺服系统中的重要组成部分。这种阀门主要接受模拟电信号，并相应地输出调制的流量和压力。伺服阀具有动态响应快、控制精度高、使用寿命长等优点，因此在航空、航天、舰船、冶金、化工等领域的电液伺服控制系统中得到了广泛应用。

SV1-10483156是一个功率放大器，同时也是电气与液压的转换器。电气输入功率通常约为0.1W，经过先导级放大后，液压输出功率可以达到约10W，再经过主阀芯转换后，液压输出功率可以达到10kW。因此，阀的功率放大因子可以达到105。对于一个三级阀，小阀芯驱动大阀芯，并带有电气位置反馈，可以进一步带来另外100倍的功率放大。

SV1-10483156的工作原理是，主阀芯的位置与电信号成比例，而阀芯的运动是由内部液动力驱动的。阀芯的运动改变节流口的大小，从而控制流量。然而，流量取决于节流口压差，除非使用了压力补偿器。最常见的伺服阀设计是带机械反馈的两级喷嘴挡板伺服阀。

SV1-10483156的主要元件包括挡板，它由力矩马达驱动，并可以限制通过喷嘴的流量。挡板的行程约为0.1mm。此外，伺服阀也可以用于构建液压伺服控制系统，该系统具有控制精度高、响应速度快、易于实现自动化等特点。

在工业应用中，SV1-10483156被广泛用于各种需要高精度、高速度、高可靠性的控制系统，如机器人、数控机床、冶金设备、化工设备等。同时，随着技术的不断发展，伺服阀也在不断升级和改进，以适应更加复杂和严苛的工业环境。

需要注意的是，伺服阀的故障现象通常与系统其他故障现象复合，使问题较为复杂。因此，在伺服阀的使用和维护过程中，需要具备一定的专业知识和经验，以确保系统的正常运行和稳定性。

SV1-10483156 伺服阀

SV1-10483156 is an important part of electro-hydraulic servo system. This valve mainly accepts analog electrical signals and outputs modulated flow and pressure accordingly. Servo valve has the advantages of fast dynamic response, high control precision and long service life, so it has been widely used in the electro-hydraulic servo control system in aviation, aerospace, shipbuilding, metallurgy, chemical industry and other fields.

SV1-10483156 is a power amplifier as well as an electrical and hydraulic converter. The electrical input power is usually about 0.1W, after the pilot stage amplification, the hydraulic output power can reach about 10W, and then after the main spore conversion, the hydraulic output power can reach 10kW. Therefore, the power amplification factor of the valve can reach 105. For a three-stage valve, the small spool drives the large spool, with electrical position feedback, which further brings an additional 100x power amplification.

The SV1-10483156 works on the principle that the position of the main spool is proportional to the electrical signal, while the movement of the spool is driven by internal hydraulic power. The movement of the spool changes the size of the orifice, thereby controlling the flow rate. However, the flow rate depends on the orifice pressure difference, unless a pressure compensator is used. The most common servo valve design is a two-stage nozzle flapper servo valve with mechanical feedback.

The main elements of the SV1-10483156 include the baffle, which is driven by a torque motor and can limit the flow through the nozzle. The travel of the baffle is about 0.1mm. In addition, the servo valve can also be used to build a hydraulic servo control system, which has the characteristics of high control precision, fast response speed and easy automation.

In industrial applications, SV1-10483156 is widely used in various control systems requiring high precision, high speed and high reliability, such as robots, CNC machine tools, metallurgical equipment, chemical equipment and so on. At the same time, with the continuous development of technology, servo valves are constantly upgraded and improved to adapt to more complex and harsh industrial environments.

It should be noted that the fault phenomenon of the servo valve is usually compounded with other fault phenomena of the system, making the problem more complicated. Therefore, in the use and maintenance of the servo valve, it is necessary to have a certain amount of professional knowledge and experience to ensure the normal operation and stability of the system.
