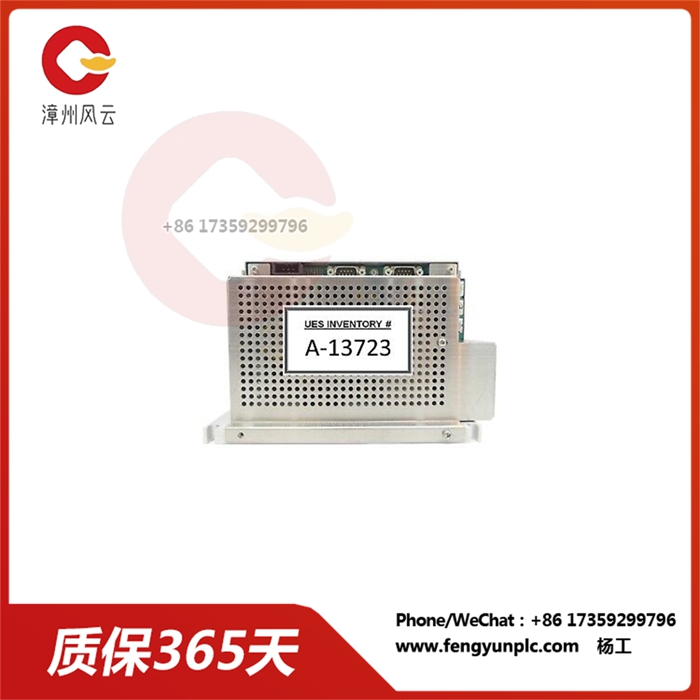

RMIO-02C 编码器控制板是一个多功能模块，设计用于各种DCS（分布式控制系统）和PLC（可编程逻辑控制器）平台。它提供两个编码器输入通道，用于与旋转编码器连接，在工业自动化应用中实现精确的位置和速度测量。

主要特点：

高分辨率编码器支持：RMIO-02C 支持多种编码器分辨率，从每转 1 脉冲 （PPR） 到 65,536 PPR，可满足各种精度要求。

双编码器输入：该模块具有两个独立的编码器输入通道，允许它同时处理两个独立的编码器。

脉宽调制 （PWM） 输出：每个编码器通道都提供一个 PWM 输出，可针对速度控制或其他应用进行配置。

方向检测：RMIO-02C可以检测编码器的旋转方向，实现精确的位置跟踪和控制。

DIN Rail Mount：该模块采用DIN导轨安装，便于安装和集成到控制面板和外壳中。

应用：

RMIO-02C 编码器控制板可用于各种工业自动化和控制任务，包括：

伺服控制：根据编码器反馈精确定位和控制伺服电机。

输送系统：在物料搬运应用中监测和控制传送带的速度和位置。

机床：精确控制机床轴的运动，如主轴和进给轴。

机器人系统：为机械臂控制提供实时位置和速度反馈。

数据记录：记录编码器数据，用于历史分析和性能监控。

总体而言，RMIO-02C 编码器控制板是 DCS 和 PLC 系统的宝贵补充，提供高分辨率编码器支持、双编码器输入、PWM 输出、方向检测和 DIN 导轨安装，使其适用于需要精确位置和速度测量的各种工业自动化和控制应用。

RMIO-02C 编码器控制板DCS/PLC系统

The RMIO-02C encoder Control board is a multifunctional module designed for a variety of DCS (distributed control system) and PLC (Programmable logic Controller) platforms. It provides two encoder input channels for connection with rotary encoders to enable accurate position and speed measurements in industrial automation applications.

Main features:

High resolution encoder support: The RMIO-02C supports a wide range of encoder resolutions, from 1 pulse per revolution (PPR) to 65,536 PPR, to meet a wide range of accuracy requirements.

Dual encoder input: The module has two independent encoder input channels, allowing it to handle two independent encoders simultaneously.

Pulse Width modulation (PWM) output: Each encoder channel provides a PWM output that can be configured for speed control or other applications.

Direction detection: The RMIO-02C can detect the rotation direction of the encoder for accurate position tracking and control.

DIN Rail Mount: This module is mounted with DIN rail for easy installation and integration into the control panel and housing.

Applications:

The RMIO-02C encoder control board can be used for a variety of industrial automation and control tasks, including:

Servo control: Precise positioning and control of the servo motor according to the encoder feedback.

Conveyor systems: Monitor and control the speed and position of conveyor belts in material handling applications.

Machine tools: Precisely control the movement of machine axes, such as spindle and feed shaft.

Robot system: Provides real-time position and speed feedback for manipulator control.

Data logging: Record encoder data for historical analysis and performance monitoring.

Overall, the RMIO-02C encoder control board is a valuable addition to DCS and PLC systems, offering high-resolution encoder support, dual encoder input, PWM output, direction detection, and DIN rail mounting, making it suitable for a variety of industrial automation and control applications that require accurate position and speed measurement.
