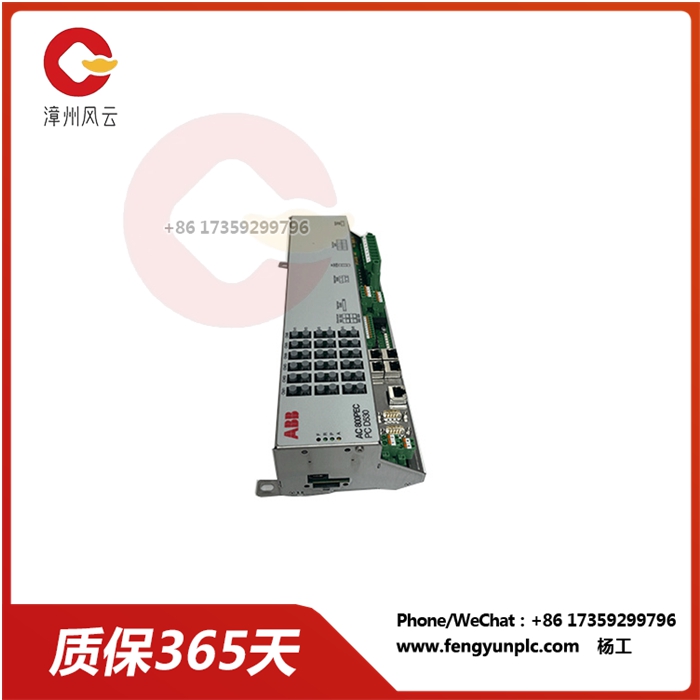

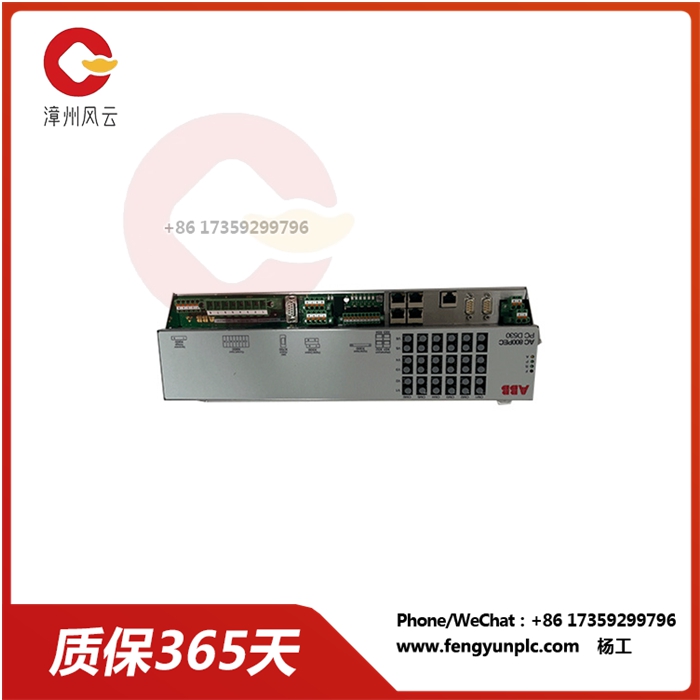

PCD530A102 3BHE041343R0102 分散控制系统

PCD530A102 3BHE041343R0102 分散控制系统

概述

PCD530A102 3BHE041343R0102 分散控制系统是倍加福公司生产的一款用于工业自动化控制的系统，由可编程控制器 （PLC）、I/O 模块、通信模块和编程软件等组成。该系统可以实现对生产过程的实时监控和控制，提高生产效率和安全性。

特点

高性能：采用 32 位 ARM Cortex-M7 处理器，主频高达 400MHz

大容量：支持 2MB 程序存储空间和 1MB 数据存储空间

高扩展性：最多可扩展 128 个 I/O 模块

多种通信方式：支持 RS-232、RS-485、Ethernet 等通信方式

丰富的编程语言：支持梯形图、结构化文本、指令表等编程语言

易于使用：提供图形化编程软件，方便用户编程和调试

应用

工业控制：适用于各种工业控制应用，如机械制造、食品饮料、纺织服装、化工冶金等

过程控制：适用于各种过程控制应用，如水处理、电厂、石油化工、制药等

环境监测：适用于各种环境监测应用，如大气监测、水质监测、土壤监测等

楼宇控制：适用于各种楼宇控制应用，如采暖通风、空调、照明、安防等

技术参数

型号：PCD530A102 3BHE041343R0102

CPU：32 位 ARM Cortex-M7 处理器

主频：400MHz

程序存储空间：2MB

数据存储空间：1MB

I/O 扩展：最多可扩展 128 个 I/O 模块

通信方式：RS-232、RS-485、Ethernet

编程语言：梯形图、结构化文本、指令表

工作温度：-20°C~+60°C

存储温度：-40°C~+85°C

相对湿度：5%～95%（非凝结）

保护等级：IP20

重量：0.5kg

PCD530A102 3BHE041343R0102 分散控制系统

summarize

The PCD530A102 3BHE041343R0102 Decentralized control system is a system produced by Pepperl + Fuchres for industrial automation control, consisting of programmable controller (PLC), I/O module, communication module and programming software. The system can realize the real-time monitoring and control of the production process, improve the production efficiency and safety.

peculiarity

High performance: A 32-bit ARM Cortex-M7 processor with a speed up to 400MHz

Large capacity: Support 2MB program storage space and 1MB data storage space

High scalability: Up to 128 I/O modules can be expanded

A variety of communication methods: support RS-232, RS-485, Ethernet and other communication methods

Rich programming languages: Support ladder diagram, structured text, instruction table and other programming languages

Easy to use: Provide graphical programming software, convenient for users to program and debug

Apply

Industrial control: Suitable for various industrial control applications, such as machinery manufacturing, food and beverage, textile and clothing, chemical metallurgy, etc

Process control: Suitable for various process control applications, such as water treatment, power plants, petrochemical, pharmaceutical, etc

Environmental monitoring: Suitable for various environmental monitoring applications, such as atmospheric monitoring, water quality monitoring, soil monitoring, etc

Building control: Suitable for a variety of building control applications, such as heating, ventilation, air conditioning, lighting, security, etc

Technical parameter

Model: PCD530A102 3BHE041343R0102

CPU: 32-bit ARM Cortex-M7 processor

Main frequency: 400MHz

Program storage space: 2MB

Data storage space: 1MB

I/O expansion: Up to 128 I/O modules can be expanded

Communication mode: RS-232, RS-485, Ethernet

Programming language: ladder diagram, structured text, instruction table

Operating temperature: -20°C~+60°C

Storage temperature: -40°C to +85°C

Relative humidity: 5% ~ 95% (non-condensing)

Protection level: IP20

Weight: 0.5kg
