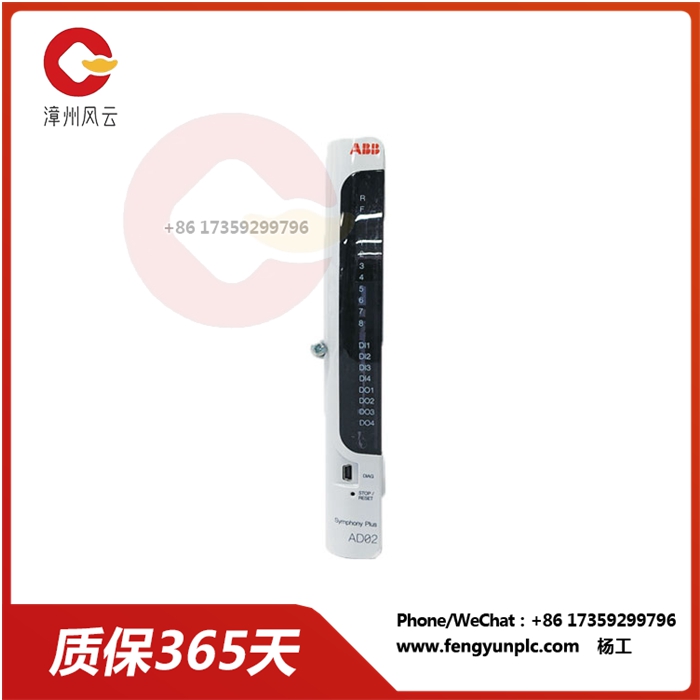

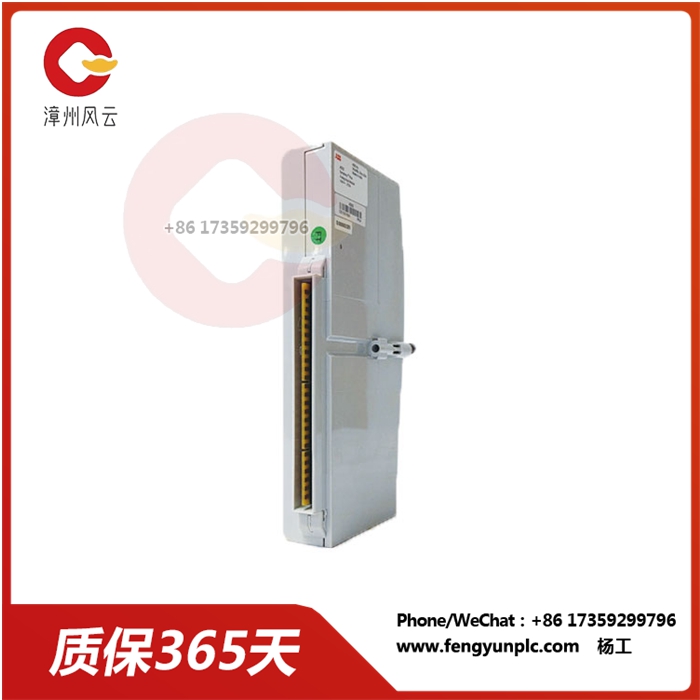

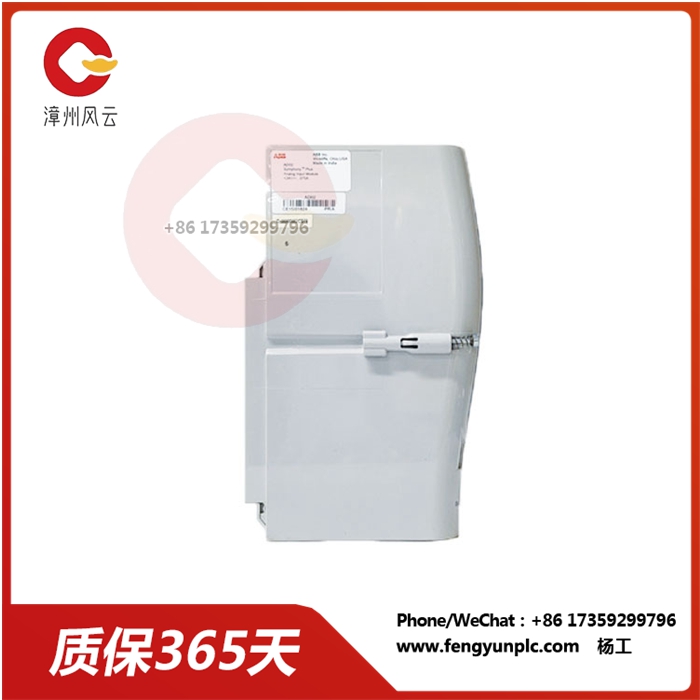

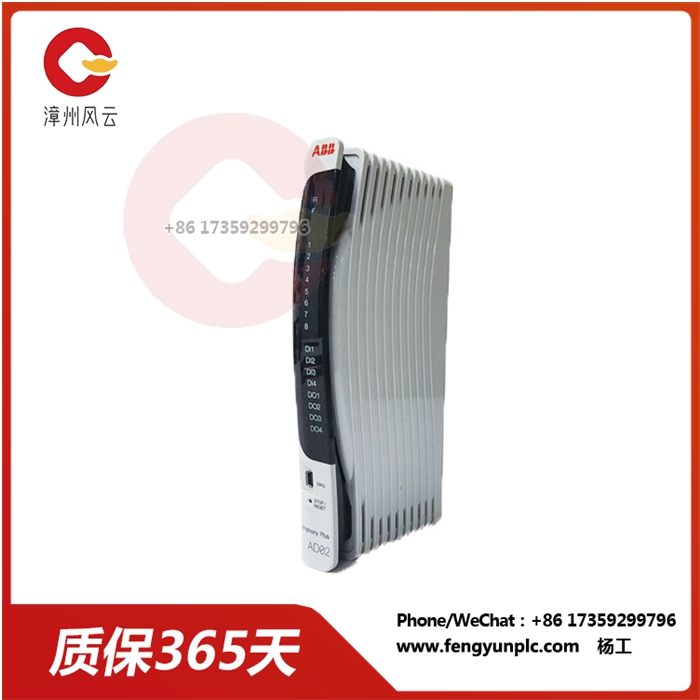

AD02 4个AI HART 多输入模块

产品概述:

AD02是一款4个AI HART多输入模块，用于将模拟信号转换为数字信号，并通过HART协议进行通信。该模块具有高精度、高可靠性、易于使用等特点，可广泛应用于工业过程控制、自动化仪表等领域。

产品特点:

高精度： 16位模数转换，测量精度高达0.05%。

高可靠性： 采用隔离设计，抗干扰能力强。

易于使用： 支持HART协议，可通过HART手持器或组态软件进行配置和维护。

多种功能: 支持多种测量模式，如电压、电流、温度、压力等。

应用领域:

AD02模块可广泛应用于工业过程控制、自动化仪表等领域，具体应用包括：

过程控制: 用于测量温度、压力、流量、液位等参数，并将其转换为数字信号，供控制系统使用。

自动化仪表: 用于将模拟信号转换为数字信号，并显示或记录测量结果。

数据采集: 用于采集模拟信号，并将其存储或传输到计算机。

技术规格:

型号：广告02

通道数： 4

输入类型： 模拟量

测量范围： 0-10V、0-20mA、4-20mA、-10V至+10V等

测量精度： 0.05%

分辨率： 16位

通信协议：哈特

电源： 24VDC

工作温度： -40°C至+85°C

防护等级：IP65防护等级

工作原理:

AD02模块的工作原理如下图所示：

模拟信号通过输入端子输入模块。

模块对模拟信号进行模数转换，将其转换为数字信号。

数字信号经过处理后，通过HART协议进行通信。

HART手持器或组态软件可以读取模块的配置信息和测量数据。

接线图:

配置软件:

AD02模块可以通过HART手持器或组态软件进行配置。HART手持器是一种便携式设备，可以用于读取和设置模块的参数。组态软件是一种运行在计算机上的软件，可以用于更复杂的参数配置和维护。

AD02 4个AI HART 多输入模块

Product Overview:

The AD02 is a 4 AI HART multi-input module for converting analog signals to digital signals and communicating via the HART protocol. The module has the characteristics of high precision, high reliability, easy to use, etc., and can be widely used in industrial process control, automatic instrument and other fields.

Product features:

High precision: 16-bit analog-to-digital conversion, measuring accuracy up to 0.05%.

High reliability: isolation design, strong anti-interference ability.

Easy to use: Supports HART protocol and can be configured and maintained via HART handheld or configuration software.

Multiple functions: Support a variety of measurement modes, such as voltage, current, temperature, pressure, etc.

Application field:

AD02 module can be widely used in industrial process control, automation instrumentation and other fields, specific applications include:

Process control: used to measure temperature, pressure, flow, level and other parameters, and convert them into digital signals for use by the control system.

Automated instruments: used to convert analog signals to digital signals and display or record measurement results.

Data acquisition: Used to collect analog signals and store or transmit them to a computer.

Technical specifications:

Model number: AD 02

Number of channels: 4

Input type: Analog

Measuring range: 0-10V, 0-20mA, 4-20mA, -10V to +10V, etc

Measurement accuracy: 0.05%

Resolution: 16 bits

Communication protocol: Hart

Power supply: 24VDC

Operating temperature: -40°C to +85°C

Protection level: IP65 protection level

How it works:

The working principle of the AD02 module is shown as follows:

The analog signal enters the module through the input terminal.

The module converts the analog signal to digital and converts it to digital signal.

The digital signal is processed and communicated through HART protocol.

HART handheld or configuration software can read module configuration information and measurement data.

Wiring diagram:

Configuration software:

The AD02 module can be configured via HART handheld or configuration software. The HART handheld is a portable device that can be used to read and set the parameters of the module. Configuration software is software that runs on a computer and can be used for more complex parameter configuration and maintenance.
