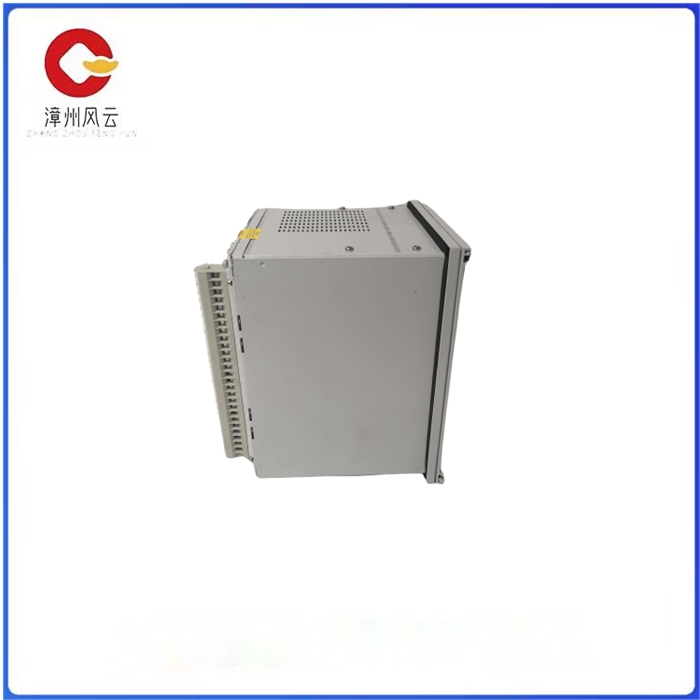

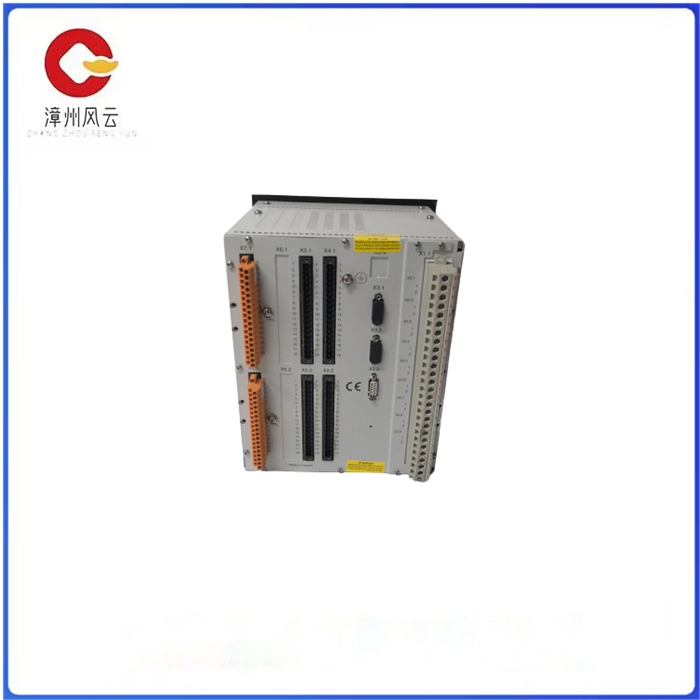

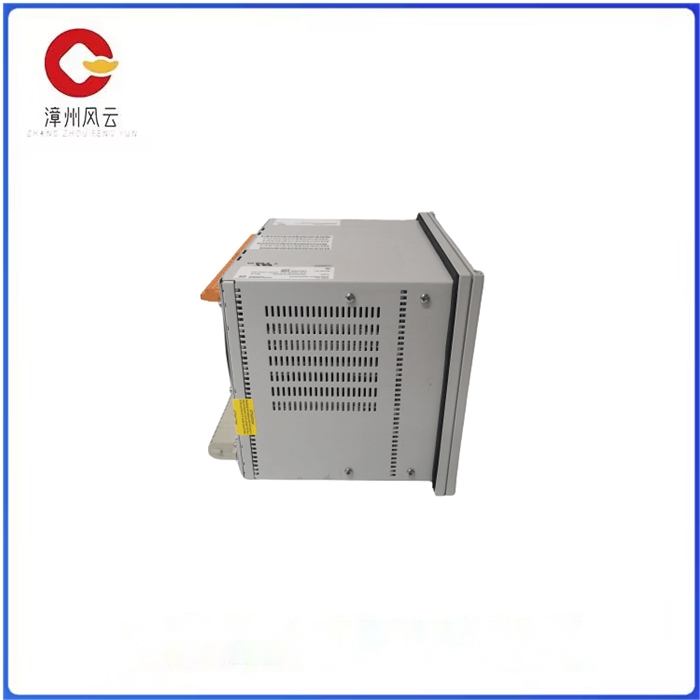

REF543KB127AAAA 馈线保护和控制电力系统

主要优势:

·大量可选择的保护功能

PLC可编程功能具有较高的灵活性可满足多种应用. 25个开关量输入和18个出口继电器

·灵活连接满足所有通信需求

REF 543馈线终端可以和各种开关装置，包括单母线，双母线和双机系统结合使用。

保护功能还支持各种类型网络，例如中性点不接地网络、消弧线圈接地网络和部分接地网络。其应用范围还覆盖中型三相异步电机及无功功率补偿并联电容器组的保护和控制。除保护、测星、控制、状态监视和常规功能外，REF 543馈线终端还提供了大量的PLC功能，这就允许了变电站自动化所需的多种自动化和顺序逻辑控制功能集成在一个装置内。

数据通信支持下列通信标准:SPA总线规约、LON总线规约、IEC60870-5-103规约、通过SPA-ZC 400支持的IEC 61850、通过SPA-ZC 302支持Profibus DPV1协议、DNP 3.0和上层设备的Modbus通信规约。另外，LON通信规约与PLC功能的结合，降低了馈线终端之间的硬接线的需求。

REF543KB127AAAA 馈线保护和控制电力系统

Main advantages:

· Large selection of protection features

PLC programmable features provide high flexibility for a wide range of applications. 25 switching inputs and 18 outlet relays

· Flexible connectivity for all communication needs

The REF 543 feeder terminal can be used in combination with a variety of switching devices, including single-bus, dual-bus and dual-machine systems.

The protection function also supports various types of networks, such as neutral ungrounded, arc suppression coil grounded, and partially grounded networks. Its application scope also covers the protection and control of medium-sized three-phase asynchronous motors and reactive power compensation shunt capacitor banks. In addition to protection, star detection, control, condition monitoring and general functions, the REF 543 feeder terminal provides a large number of PLC functions, which allows the multiple automation and sequential logic control functions required for substation automation to be integrated in a single unit.

Data communication supports the following communication standards :SPA bus protocol, LON bus protocol, IEC60870-5-103 protocol, IEC 61850 supported by SPA-ZC 400, Profibus DPV1 protocol supported by SPA-ZC 302, DNP 3.0 and the Modbus communication protocol for upper-layer devices. In addition, the LON communication protocol combined with PLC functionality reduces the need for hard wiring between feeder terminals.
