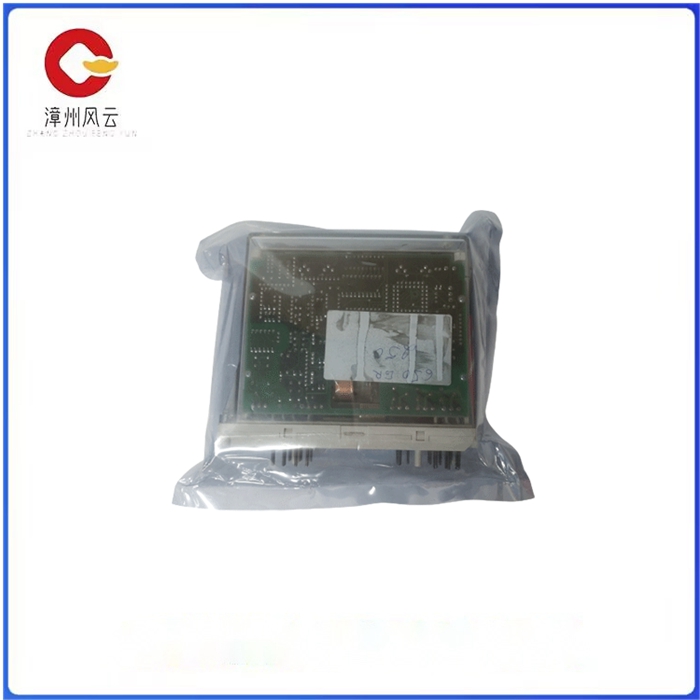

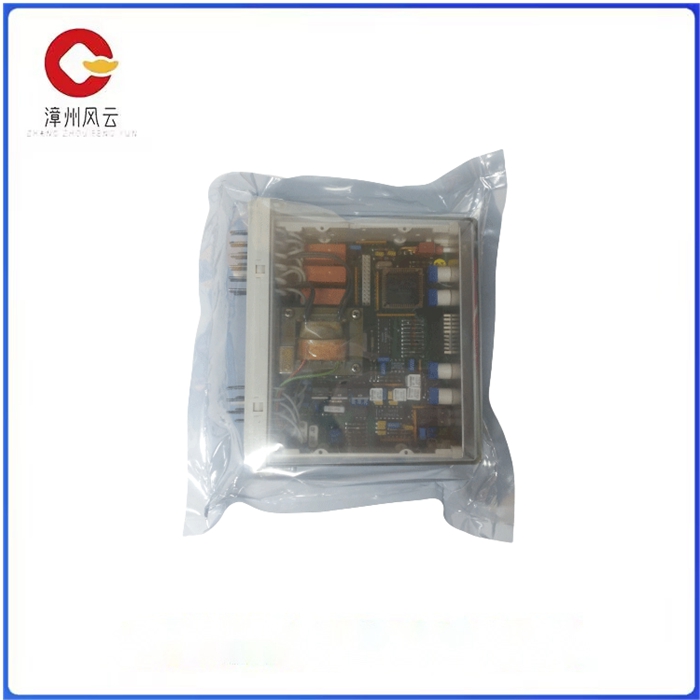

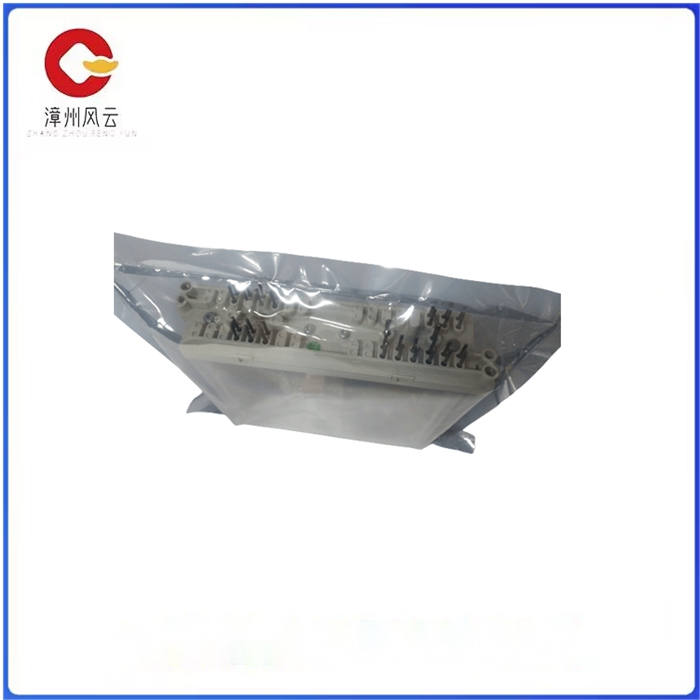

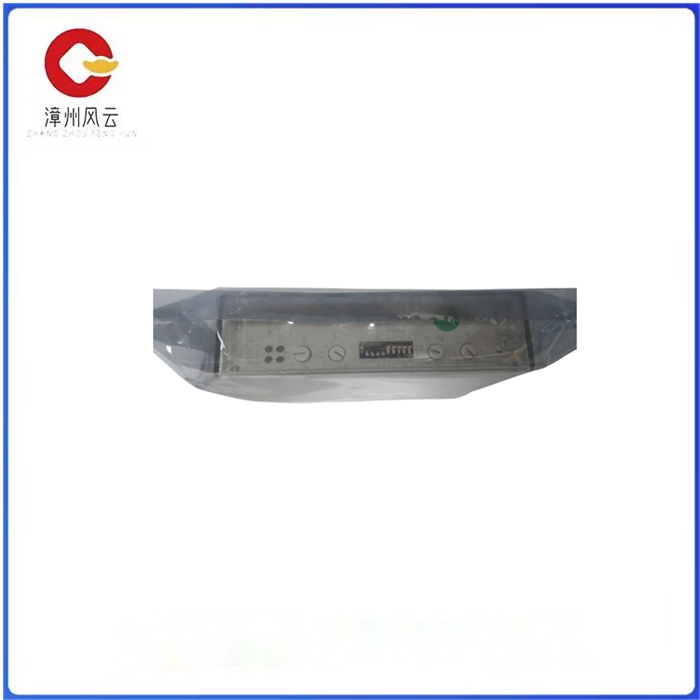

RXIDK 2H 1MRK000838-HA 双通道模拟输入/输出本质安全栅

•用于短路和接地故障保护的单，二，三相和三相对地变型

•独立的测量元件;在使用中，每个阶段的启动和跳闸指示

•测试开关，DC/DC转换器和重型脱扣继电器可作为指定选项

•基于微处理器的时间过流继电器，具有电流操作值和延时的连续设置

•三种当前范围变体，具有宽设置范围

•低设置级0,015-0,65 A或0,075- 3,25 A或0,375-16,25 A

•高设置阶段或0,02-8 A 0,1-40 A或0,5-200 A和∞*)*)16 2/3 Hz替代版本0,075-40 A或0,0375-200 A和∞

•低设定阶段可编程以下时间特性:

-法向逆

-非常相反

-极逆

– ri逆时间

-长时间逆

-确定的时间延迟可设置50毫秒-8,1秒

•可选的滤波器不同的频率特性0,2 A变体

– 50-60赫兹尖锐

– 150-180赫兹尖锐

– 40- 2000hz平坦1a和5a变体

– 50-60赫兹尖锐

– 150-180赫兹尖锐

– 40-2000赫兹平

– 16 2/3 Hz平

•高设置阶段可以延迟到1秒的保险丝选择性协调

•复位比95%使设置接近最大负载电流

•恢复时间< 40毫秒使时间选择保护之间的小时间步长

•低瞬态过伸，即继电器对故障电流中的直流元件不敏感。RXIDG 21H继电器及组件

•开拓了在接地系统中选择性敏感接地故障保护的方法

RXIDK 2H 1MRK000838-HA 双通道模拟输入/输出本质安全栅

Single, two, three and three relative ground variants for short circuit and ground fault protection

• Independent measuring element; In use, start-up and tripping instructions for each stage

• Test switches, DC/DC converters and heavy-duty trip relays are available as specified options

• Microprocessor-based time overcurrent relay with continuous setting of current operating value and delay

• Three current range variants with a wide range of Settings

• Low setting level 0,015-0,65 A or 0, 075-3,25 A or 0,375-16,25 A

• High setting stage or 0,02-8 A 0,1-40 A or 0,5-200 A and ∞*)*)16 2/3 Hz Alternative version 0,075-40 A or 0,0375-200 A and ∞

• The low setting phase can be programmed with the following time characteristics:

- Normal inverse

- Quite the opposite.

- Extreme Inverse

- ri Indicates the inverse time

- Long reverse

- Determined time delay can be set from 50 milliseconds to 8,1 second

• Optional filter with different frequency characteristics in 0, 2A variants

- 50-60 Hz sharp

- 150-180 Hz sharp

- 40-2000hz Flat 1a and 5a variants

- 50-60 Hz sharp

- 150-180 Hz sharp

- 40-2000 Hz level

- 16 2/3 Hz flat

• The high setting phase can be delayed to 1 second for selective fuse coordination

• The reset ratio of 95% brings the setting close to the maximum load current

• Recovery time < 40 ms makes time select a small time step between protection

• Low transient overreach, i.e. the relay is insensitive to DC elements in the fault current. RXIDG 21H relays and components

• The method of selective sensitive grounding fault protection in grounding systems is developed
