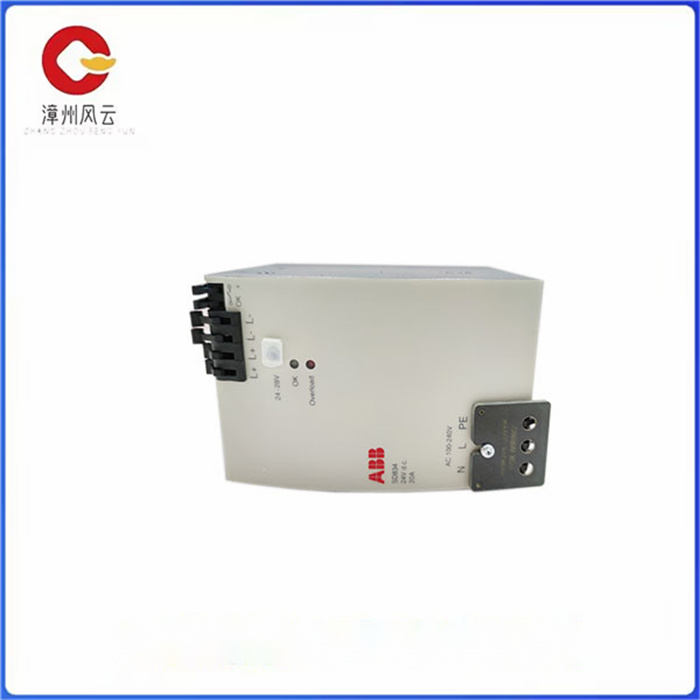

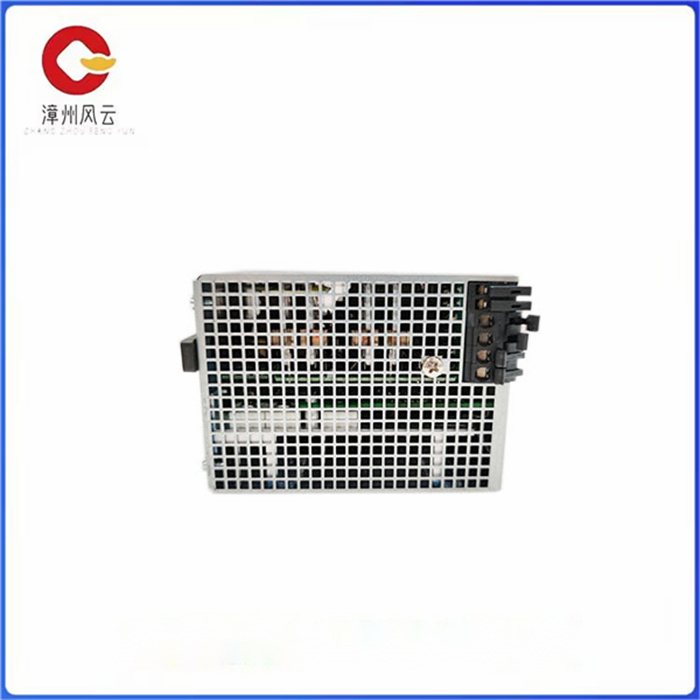

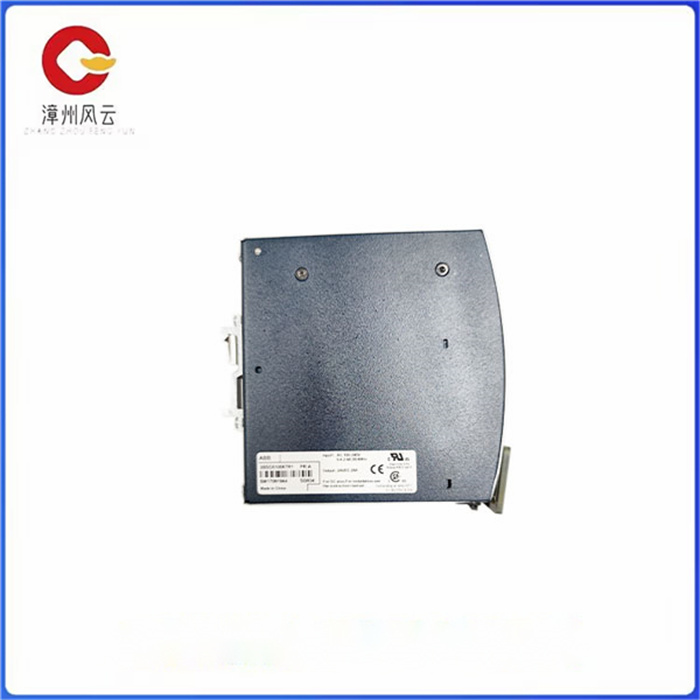

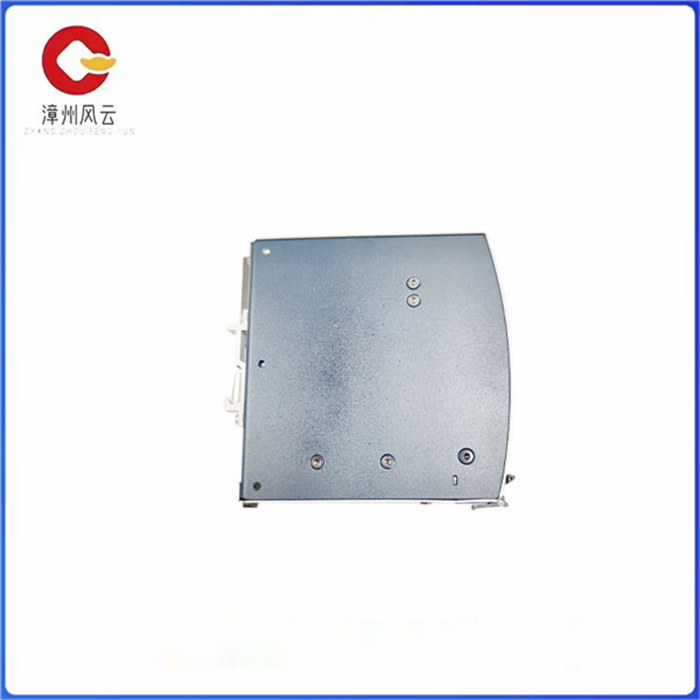

SD834  电源供应器 这些电源可用于非冗余和冗余应用

SD834  电源供应器 这些电源可用于非冗余和冗余应用

SD83x 电源单元旨在满足 EN 50178 统一欧洲标准出版物中规定的所有适用电气安全数据以及 EN 61131-2 和 UL 508 要求的其他安全和功能数据。

次级输出电路适用于 SELV 或 PELV 应用。它们是开关模式电源单元，可将电源电压转换为 24 伏直流电。这些电源可用于非冗余和冗余应用。

冗余应用需要二极管投票单元SS823或SS832。使用SD83x系列电源单元，无需安装电源滤波器。它们提供软启动功能;SD83x 的上电不会触发保险丝或接地故障断路器。

特点和优点

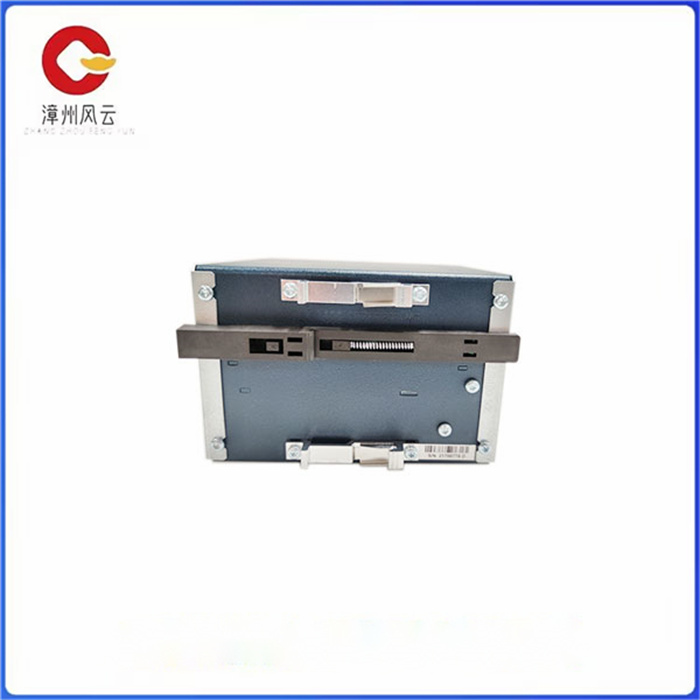

简单的DIN导轨安装

I 类设备（连接到保护接地时，（PE））

过电压类别 III 用于连接到主主

TN 网络

次级回路与初级回路的保护性隔离

适用于 SELV 和 PELV 应用

单元的输出具有过流（限流

）和过压（OVP）保护

SD834可并联，增加输出功率

SD831 和 SD834 的交流和直流输入

SD834 上的浮动 DC-OK 继电器触点

SD834  电源供应器 这些电源可用于非冗余和冗余应用

The SD83x power supply unit is designed to meet all applicable electrical safety data specified in EN 50178 Harmonized European Standard publication and other safety and functional data required by EN 61131-2 and UL 508.

The secondary output circuit is suitable for SELV or PELV applications. They are switching mode power supply units that convert the supply voltage to 24 volts direct current. These power supplies can be used in both non-redundant and redundant applications.

Redundant applications require diode voting units SS823 or SS832. With the SD83x series power supply unit, no power filter is required. They offer soft boot functionality; Power-on of the SD83x does not trigger fuses or ground fault circuit breakers.

Features and advantages

Simple DIN rail mounting

Class I equipment (when connected to protective ground, (PE))

Overvoltage Class III is used to connect to the master

TN network

Protective isolation of secondary and primary circuits

Suitable for SELV and PELV applications

The output of the unit has overcurrent (current limiting

) and overvoltage (OVP) protection

The SD834 can be connected in parallel to increase output power

Ac and DC inputs for SD831 and SD834

Floating DC-OK relay contact on SD834
