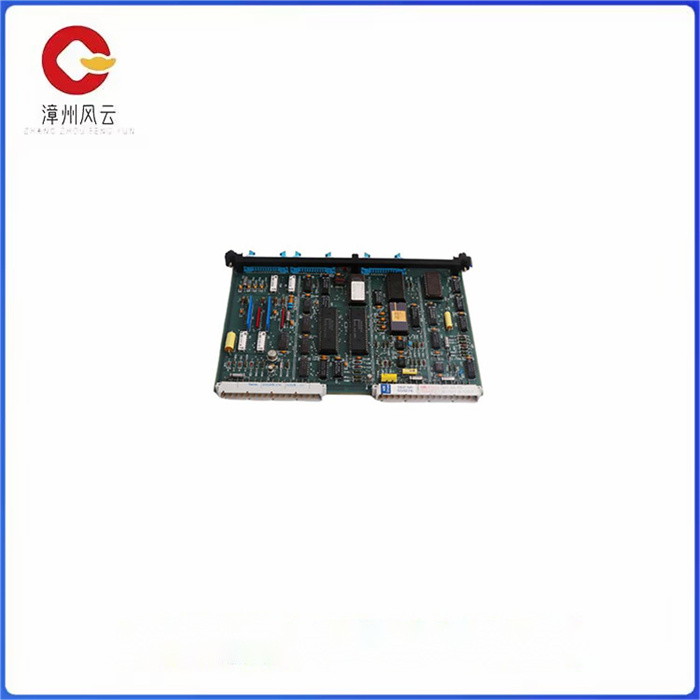

SAFT-185-TBC ABB 有源模块控制器

物理输入模块无需配置。模块的所有可配置特性均使用工程工作站 （EWS） 上的工具执行，并成为加载到 TMR 处理器中的应用程序或系统.INI文件的一部分。TMR 处理器在下载应用程序后和主备切换期间自动配置输入模块。

IEC 61131 TOOLSET 提供了配置输入模块的主界面。有关配置工具和配置顺序的详细信息，请参阅可信工具集套件产品说明、出版物ICSTTRM249 （PD-T8082）。配置输入模块需要三个过程。这些是：

1. 使用 IEC 61131 工具集的字典编辑器为字段输入数据和模块

状态数据定义必要的 I/O 变量。

2. 在 I/O 连接编辑器中为每个 I/O 模块创建一个

I/O 模块定义。I/O 模块定义定义物理信息，例如机箱和插槽位置，

并允许将变量连接到

模块的 I/O 通道。

3. 使用可信®系统配置管理器，定义自定义LED 指示灯模式、每通道阈值电平和噪声过滤以及其他模块设置。

如果主模块是当前活动模块，则“主模块处于活动状态”通道设置为非零，即活动模块位于 OEM 参数中定义的机箱和插槽编号中。

如果正在模拟活动模块，则“模拟活动模块”通道设置为“1”，仅当模块不存在或无法运行并且已在系统.INI文件中的模块配置中设置了模拟启用时，才会设置此设置。

每个布尔输入变量都可以配置为自动

事件序列 （SOE） 日志记录。这适用于“输入状态”和“线路故障状态”变量。在数据字典编辑器中定义变量期间，将为 SOE 配置布尔变量。要选择 SOE，请按“布尔变量定义”对话框中的“扩展”按钮打开“扩展定义”对话框。然后选中“事件序列”框，以启用自动 SOE 日志记录的

变量。

在操作过程中，输入模块会自动报告输入数据的状态信息的时间

戳变化。TMR 处理器会自动将已配置 SOE 变量的状态更改记录到系统 SOE 日志中。可以使用 EWS 上运行的 SOE 和 Process Historian 包来监视和检索 SOE日志。

SAFT-185-TBC ABB 有源模块控制器

The physical input module does not need to be configured. All configurable features of the module are executed using tools on the Engineering workstation (EWS) and become an application or system loaded into the TMR processor. Part of the INI file. The TMR processor automatically configures the input module after downloading the application and during the active/standby switchover.

The IEC 61131 TOOLSET provides the main interface for the configuration input module. For more information about the configuration tools and configuration sequence, see the Trusted Toolset Suite product Description, publication ICSTTRM249 (PD-T8082). There are three processes involved in configuring the input module. These are:

1. Use the dictionary editor of the IEC 61131 tool set to enter data and modules for the fields

The status data defines the necessary I/O variables.

2. Create one for each I/O module in the I/O Connection editor

I/O module definition. I/O module definition Defines physical information, such as chassis and slot locations,

And allows variables to be connected to

Module I/O channel.

3. Use Trusted ® System Configuration Manager to define custom LED indicator modes, per-channel threshold levels and noise filtering, and other module Settings.

If the main module is a currently active module, the "Main Module is Active" channel is set to non-zero, that is, the active module is located in the chassis and slot number defined in the OEM parameters.

If an active module is being simulated, the Simulated Active Module channel is set to 1, only if the module does not exist or is not operational and is already in the system. This setting is set only when emulation is enabled is set in the module configuration in the INI file.

Each Boolean input variable can be configured to be automatic

Event sequence (SOE) logging. This applies to the Input State and Line Fault State variables. During variable definition in the data dictionary editor, Boolean variables are configured for the SOE. To select SOE, press the Extension button in the Boolean Variable Definition dialog box to open the Extension Definition dialog box. Then check the "Sequence of Events" box to enable automatic SOE logging

Variable.

During operation, the input module will automatically report the time of the status information of the input data

Poke changes. The TMR processor automatically logs state changes of configured SOE variables to the system SOE log. You can use the SOE and Process Historian packages running on EWS to monitor and retrieve SOE logs.
