REX521GHHPSH50G保护继电器 测量和中压电网的监控

REX521GHHPSH50G保护继电器 测量和中压电网的监控

保护继电器REX 521是专为保护，控制，测量和中压电网的监控。典型的应用包括传入和出线馈线以及变电站保护。提供保护继电器具有传统电流和电压互感器的激励输入。也是一个硬件版本与输入电流和电压传感器是可用的。

该保护继电器基于多处理器环境。HMI包括LCD显示不同的视图，使本地使用方便，并告知用户通过指示消息。现代技术在硬件和软件方面都有应用软件解决方案。

REX 521是配电变电站自动化概念的一部分自动化并进一步扩展了概念的功能和灵活性。

人机界面功能

•导航按钮，[C]清除/取消和[E]进入

•语言选择

•设置值受密码保护

•显示背光

•显示对比度

•显示测试

•主要值的选择

•光隔离串行通信端口

REX521GHHPSH50G保护继电器 测量和中压电网的监控

The protective relay REX 521 is designed for the protection, control, measurement and monitoring of medium voltage power grids. Typical applications include incoming and outgoing feeders and substation protection. Protective relays are provided with excitation inputs from conventional current and voltage transformers. Also a hardware version with input current and voltage sensors is available.

The protective relay is based on a multiprocessor environment. The HMI includes an LCD to display different views, make local use easy, and inform users by indicating messages. Modern technology has application software solutions in both hardware and software.

REX 521 is part of the automation concept for distribution substation automation and further extends the functionality and flexibility of the concept.

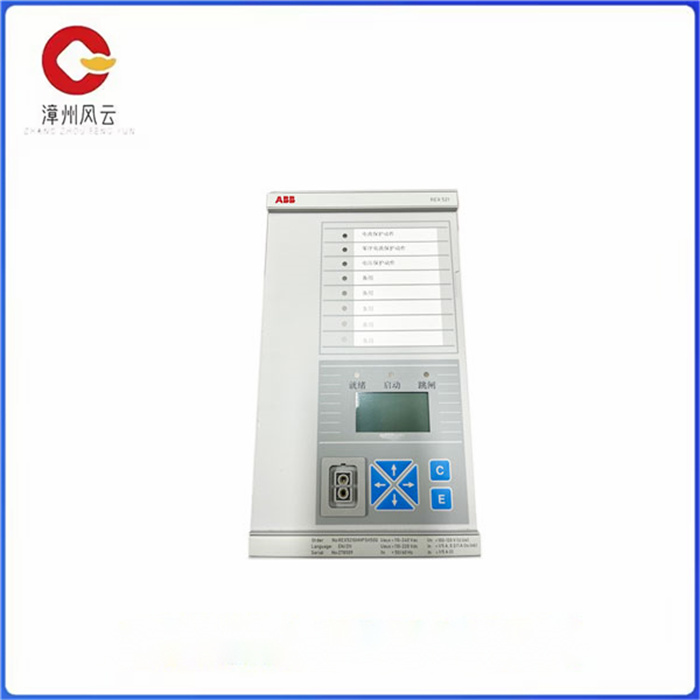

Man-machine interface function

• Navigation buttons, [C] Clear/Cancel and [E] Enter

• Language selection

• The Settings are password protected

• Display backlight

• Display contrast

• Display test

• Selection of primary values

• Optical isolation serial communication port
