ABB RED615 综合保护继电装置 线路差动保护和测控装置

ABB RED615 综合保护继电装置 线路差动保护和测控装置

ABB的RED615综合保护继电装置是一款功能强大的设备，用于实现线路差动保护和测控功能。以下是关于RED615继电装置的一些关键特点和功能：

线路差动保护：RED615具备线路差动保护功能，能够在电流或电压出现不平衡时迅速切断故障线路，以防止事故扩大。通过比较不同位置的电流或电压值，RED615能够检测到线路中的故障，并在必要时触发断路器跳闸。

测控功能：除了差动保护外，RED615还提供全面的测控功能。它可以实时监测线路的电流、电压、有功功率、无功功率等电气参数，并将这些数据传输到上位控制系统或调度中心。此外，RED615还具备遥控和遥调功能，允许远程控制断路器的分合闸操作。

集成化设计：RED615采用紧凑的集成化设计，将差动保护、测控、通信等功能集成于一个设备中。这减少了所需的安装空间和电缆连接，提高了系统的可靠性和稳定性。

灵活的配置：RED615支持多种配置选项，以满足不同线路保护和测控的需求。用户可以根据实际情况选择合适的配置，以最大化RED615在特定应用中的性能。

高可靠性：RED615采用先进的硬件和软件技术，确保在各种复杂和恶劣的工业环境中仍能保持高可靠性和稳定性。它具有故障检测和恢复功能，能够在出现故障时自动切换到备用模式或降级运行模式。

易于维护与调试：RED615配备友好的人机界面和诊断工具，使得维护和调试变得简单快捷。通过内置的显示屏或连接的计算机，用户可以轻松查看设备状态、配置参数或进行故障排除。

扩展性：随着电力系统的不断发展，可能需要增加更多的保护和测控功能。RED615设计灵活，支持通过扩展模块或插件来实现更多功能，以满足不断增长的需求。

兼容性强：RED615与多种主流的通信协议和标准兼容，如IEC 60870-5-103、IEC 60870-5-104等。这使得它能够方便地与其它电力系统设备和控制系统进行集成和通信。

总之，ABB的RED615综合保护继电装置是线路差动保护和测控的理想选择。通过其强大的功能、高可靠性、灵活性和兼容性，RED615为电力系统的安全、稳定和经济运行提供了有力保障。

ABB RED615 综合保护继电装置 线路差动保护和测控装置

ABB's RED615 Integrated protection relay is a powerful device for differential line protection and measurement and control functions. Here are some of the key features and functions of the RED615 relay unit:

Line differential protection: RED615 has line differential protection, which can quickly cut off the faulty line when the current or voltage is unbalanced to prevent the expansion of the accident. By comparing current or voltage values at different locations, the RED615 is able to detect faults in the line and trigger a circuit breaker trip if necessary.

Measurement and control functions: In addition to differential protection, the RED615 also offers comprehensive measurement and control functions. It can monitor the current, voltage, active power, reactive power and other electrical parameters of the line in real time, and transmit these data to the upper control system or dispatching center. In addition, the RED615 also has remote control and remote control functions, allowing remote control of the circuit breaker on and off operation.

Integrated design: RED615 uses a compact integrated design to integrate differential protection, measurement and control, communication and other functions in one device. This reduces the required installation space and cable connections, improving the reliability and stability of the system.

Flexible configuration: The RED615 supports a variety of configuration options to meet different line protection and measurement and control needs. Users can choose the right configuration to maximize the performance of RED615 in a specific application.

High reliability: The RED615 uses advanced hardware and software technology to ensure high reliability and stability in a variety of complex and harsh industrial environments. It has fault detection and recovery functions, and can automatically switch to standby mode or degraded operation mode in case of failure.

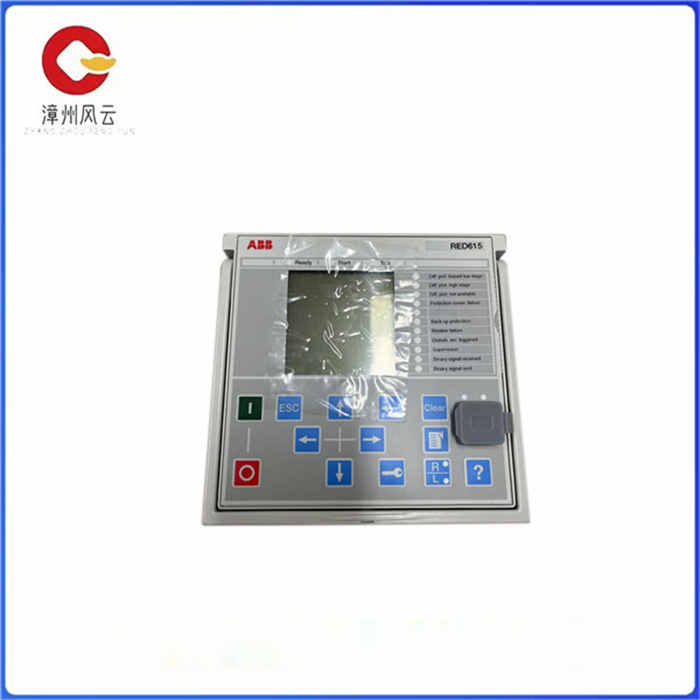

Easy maintenance and debugging: The RED615 is equipped with a friendly human-machine interface and diagnostic tools, making maintenance and debugging easy and fast. With a built-in display or connected computer, users can easily view device status, configure parameters, or troubleshoot.

Scalability: As power systems continue to evolve, more protection and control functions may need to be added. The RED615 is designed to be flexible, enabling more functionality through extension modules or plug-ins to meet growing demands.

Strong compatibility: RED615 is compatible with a variety of mainstream communication protocols and standards, such as IEC 60870-5-103, IEC 60870-5-104, etc. This makes it easy to integrate and communicate with other power system equipment and control systems.

In short, ABB's RED615 integrated protection relay is the ideal choice for line differential protection and measurement and control. With its powerful features, high reliability, flexibility and compatibility, RED615 provides a strong guarantee for the safe, stable and economical operation of the power system.
