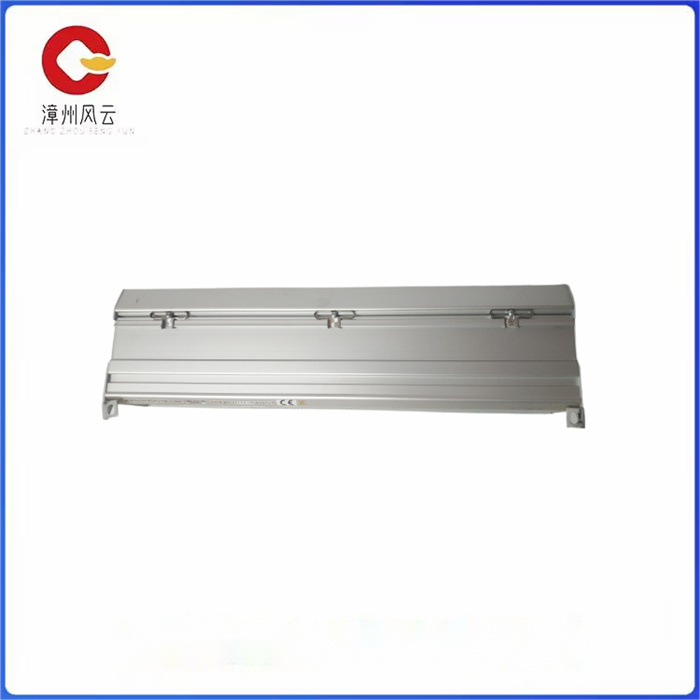

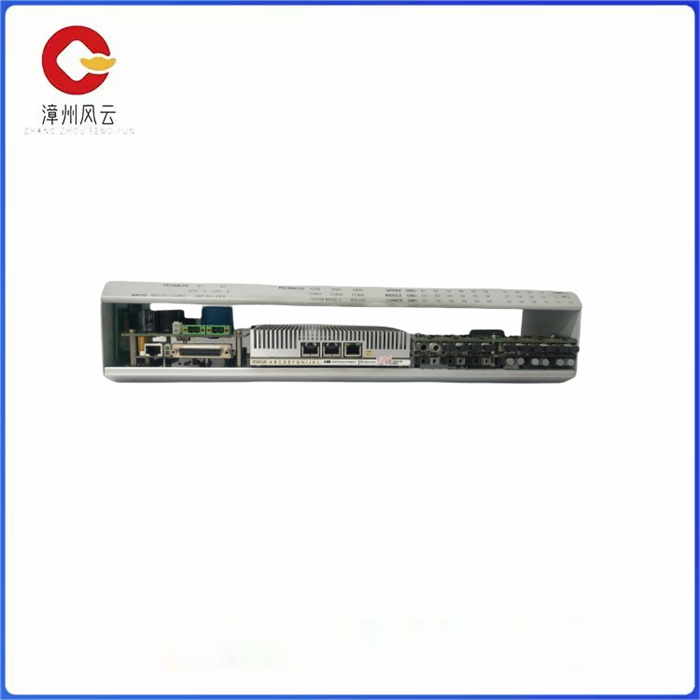

PPD113B01-10-150000 3BHE023784R0123 高功率直流电源

产品参数

型号：PPD113B01-10-150000

订单号：3BHE023784R1023

额定电压：110-240V AC

频率：50/60Hz

额定功率：1500W

最大输出电压：300V DC

最大输出电流：5A

工作温度：-20℃至+60℃

存储温度：-40℃至+70℃

保护等级：IP20

产品规格

尺寸：380mm x 150mm x 200mm

重量：4.2kg

材质：铝合金外壳

适用电缆截面：0.5mm²至10mm²

输出接口：4mm插针

应用领域

该产品适用于电池充电、电动工具、电动车等领域。

产品使用说明

使用前请仔细阅读产品说明书，确保安装正确。

请勿超负荷使用，以免损坏产品。

在使用过程中，如出现异常情况，请及时停止使用，并联系售后人员处理。

产品介绍

ABB PPD113B01-10-150000 3BHE023784R1023是一款高功率直流电源，具有稳定的输出电压和电流，可广泛应用于电池充电、电动工具、电动车等领域。产品采用铝合金外壳，外形美观，散热性能良好，使用寿命长。

技术说明

该产品采用先进的数字控制技术，可实现电压、电流、功率等多种参数的精确调节和控制。产品具有过压保护、过流保护、过温保护等多重保护功能，可确保产品在安全可靠的状态下工作。

PPD113B01-10-150000 3BHE023784R0123 高功率直流电源

Product parameter

Model: PPD113B01-10-150000

Order number: 3BHE023784R1023

Rated voltage: 110-240V AC

Frequency: 50/60Hz

Rated power: 1500W

Maximum output voltage: 300V DC

Maximum output current: 5A

Operating temperature: -20℃ to +60℃

Storage temperature: -40℃ to +70℃

Protection level: IP20

Product specification

Size: 380mm x 150mm x 200mm

Weight: 4.2kg

Material: Aluminum alloy shell

Applicable cable section: 0.5mm² to 10mm²

Output interface: 4mm pin

Application field

The product is suitable for battery charging, power tools, electric vehicles and other fields.

Product instructions

Please read the product manual carefully before use to ensure that the installation is correct.

Do not overload the use, so as not to damage the product.

In the process of use, if there is any abnormal situation, please stop the use in time, and contact the after-sales personnel for handling.

Product introduction

ABB PPD113B01-10-150000 3BHE023784R1023 is a high power DC power supply with stable output voltage and current, which can be widely used in battery charging, power tools, electric vehicles and other fields. The product uses aluminum alloy shell, beautiful appearance, good heat dissipation performance, long service life.

Technical specification

The product adopts advanced digital control technology, which can realize the accurate adjustment and control of voltage, current, power and other parameters. The product has multiple protection functions such as over-voltage protection, over-current protection and over-temperature protection, which can ensure that the product works in a safe and reliable state.
