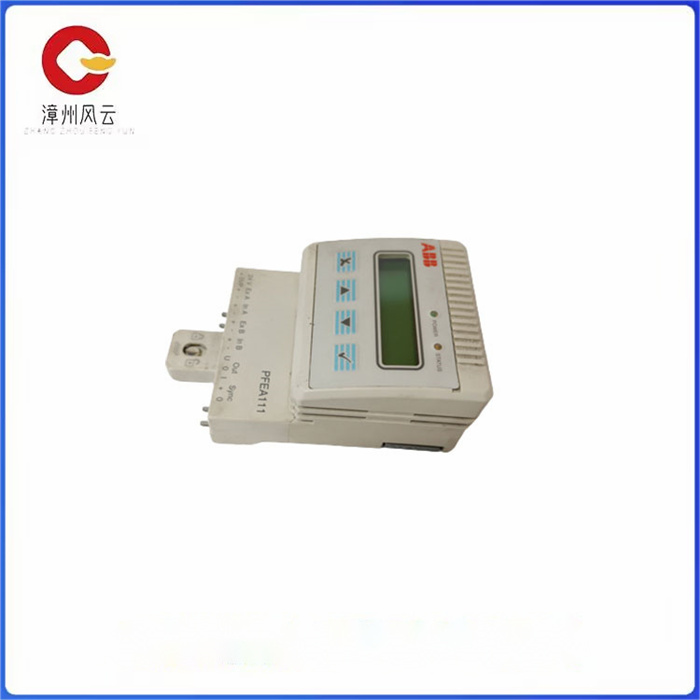

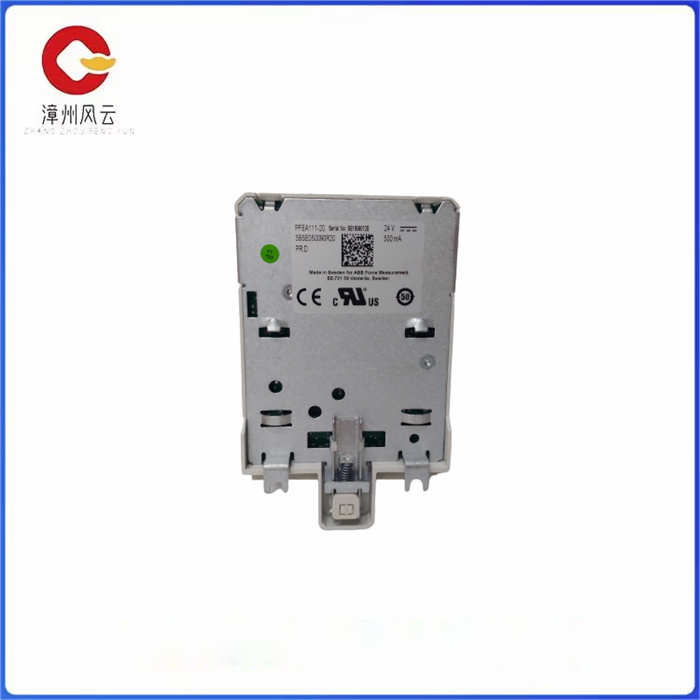

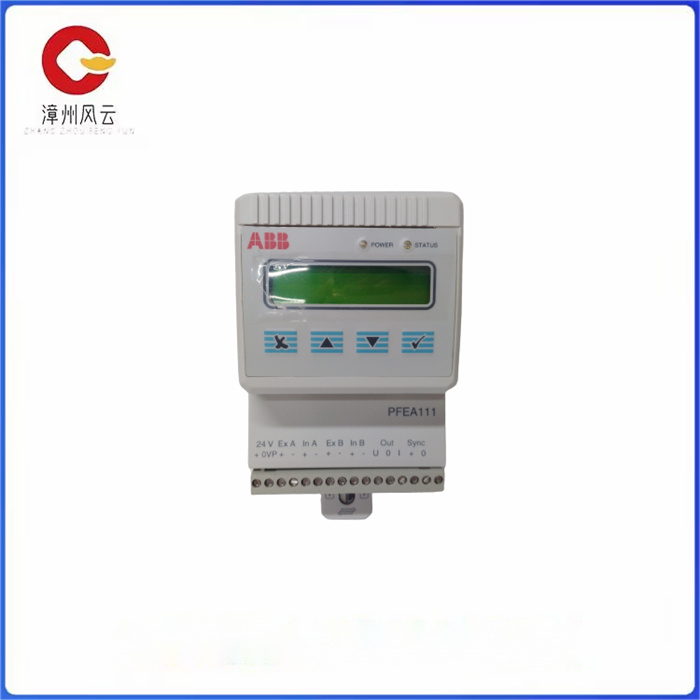

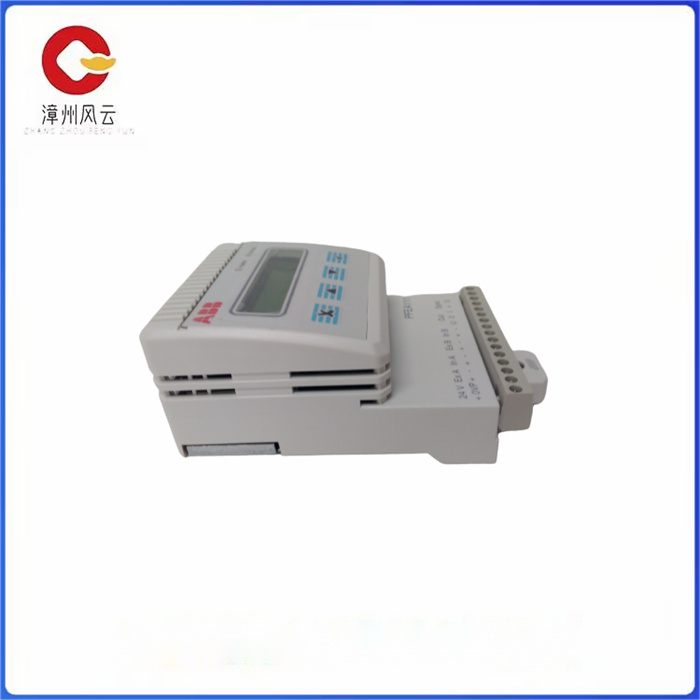

PFEA111-20 3BSE050090R20 工业显示屏模块

PFEA111-20 3BSE050090R20 工业显示屏模块

特点和优点

8 个通道，适用于 0 20 mA、4 20 mA dc、单端单极性输入

1组8通道与地隔离

12位分辨率

输入分流电阻由 PTC 电阻保护至 30V

模拟输入短路保护至 ZP 或 +24 V

输入承受HART通讯

通过可拆卸连接器进行过程和电源连接

一般介绍：

显示功能：PFEA111-20 工业显示屏模块具有高分辨率和清晰度的显示屏，用于显示各种数据和信息。它可以显示实时过程数据、报警信息、系统状态等，以帮助操作员实时监控和控制系统。

多种显示方式：该显示屏模块支持多种显示方式，如数字显示、图形显示、曲线图显示等。这使得用户可以根据具体需求选择适当的显示方式，以直观地呈现数据和信息。

触摸屏功能：PFEA111-20 工业显示屏模块通常具有触摸屏功能，以实现用户与显示屏的交互。触摸屏界面可以用于操作、选择和控制显示内容，提供更加直观和灵活的用户体验。

多种通信接口：该显示屏模块通常具有多种通信接口，如以太网、串口等，以便与其他设备和系统进行数据交换和通信。这使得它可以接收来自系统的数据，并将显示内容实时更新。

报警和状态指示：PFEA111-20 工业显示屏模块通常具有报警和状态指示功能。它可以显示系统的报警信息，并通过颜色、图标或文字等方式指示系统的运行状态，以便及时采取相应的措施。

可靠性和耐用性：ABB的产品通常具有高可靠性和耐用性，适应各种工业环境条件。工业显示屏模块通常具有抗干扰能力、防尘、防湿和耐震能力，以确保在恶劣环境下稳定运行。

PFEA111-20 3BSE050090R20 工业显示屏模块

Features and advantages

8 channels for 0 20 mA, 4 20 mA dc, single-ended unipolar input

One group of eight channels is isolated from the ground

12-bit resolution

The input shunt resistance is protected to 30V by PTC resistance

Analog input short-circuit protection to ZP or +24 V

Input receives HART communication

Process and power connections via removable connectors

General introduction:

Display function: The PFEA111-20 Industrial display module has a high-resolution and clear display for displaying a variety of data and information. It can display real-time process data, alarm information, system status, etc., to help operators monitor and control the system in real time.

Multiple display modes: The display module supports a variety of display modes, such as digital display, graphic display, curve display, etc. This allows users to choose the appropriate display according to their specific needs to visually present data and information.

Touch screen function: The PFEA111-20 industrial display module usually has a touch screen function to achieve user interaction with the display. The touch screen interface can be used to manipulate, select and control display content, providing a more intuitive and flexible user experience.

A variety of communication interfaces: The display module usually has a variety of communication interfaces, such as Ethernet, serial ports, etc., in order to exchange data and communicate with other devices and systems. This allows it to receive data from the system and update the display content in real time.

Alarm and status indication: PFEA111-20 industrial display module usually has alarm and status indication function. It can display the alarm information of the system, and indicate the operating status of the system through color, icon or text, so as to take corresponding measures in time.

Reliability and durability: ABB's products are typically highly reliable and durable, adapting to a wide range of industrial environmental conditions. Industrial display modules usually have anti-interference, dust, moisture and shock resistance to ensure stable operation in harsh environments.
