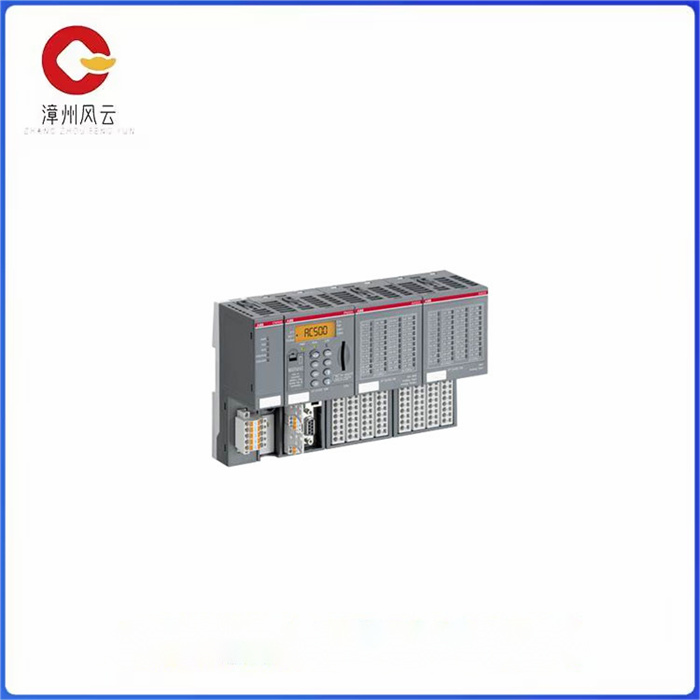

DC522 数字输入/输出模块 终端24伏直流电

DC522型

一般信息

扩展产品类型：DC522型

产品编号：1SAP240600R0001

ABB型号名称：DC522型

EAN：4016779655972

目录描述:数字输入/输出模块。16可配置DI/DO: 24VDC 0.5A。8辅助。端子0 V. 8 aux。端子24VDC (DC522)

长描述:DC522: S500数字输入输出模块。16可配置DI/DO: 24VDC 0.5A。8辅助。端子0 V. 8 aux。终端24伏直流电。2 . .3线。

-40°c…+ 70°C

-40°c…-30℃:系统正常启动;技术数据不保证

-40°c…0°C:由于LCD技术

显示响应可能非常慢。

-40°c…+40℃:模块垂直安装

可能，输出负载限制在每组50%

+60°c…+70°C，降额如下:

●系统限制为最大。每个终端底座2个通信模块

●数字输入:同时打开输入通道的最大数量限制为每组75%(例如8通道=> 6通道)

●数字输出:输出电流最大值(所有通道一起)限制为每组75%(例如8 A => 6 A)

●模拟输出仅当配置为电压输出时:每组最大总输出电流限制为75%(例如40 mA => 30 mA)

●模拟输出仅当配置为电流输出时:最大同时使用的输出通道数量限制为每组75%(例如4通道=> 3通道)

DC522 数字输入/输出模块 终端24伏直流电

Type DC522

General information

Extended product type: DC522

Product ID: 1SAP240600R0001

ABB model name: DC522

EAN: 4016779655972

Directory Description: Digital input/output module. 16 Configurable DI/DO: 24VDC 0.5A. 8 auxiliary. Terminal 0 V.8 aux. Terminal 24VDC (DC522)

Long description :DC522: S500 digital input/output module. 16 Configurable DI/DO: 24VDC 0.5A. 8 auxiliary. Terminal 0 V.8 aux. Terminal 24 volts DC. 2... 3 lines.

-40°c… + 70°C

-40°c… -30 ° C: The system starts normally. Technical data is not guaranteed

-40°c… 0°C: Due to LCD technology

Display response can be very slow.

-40°c… +40 ° C: The module is installed vertically

Possible, the output load is limited to 50% per group

+60°c… +70°C, the derating is as follows:

● The system limit is maximum. Two communication modules per terminal base

● Digital input: The maximum number of input channels open at the same time is limited to 75% per group (e.g. 8 channels => 6 channels)

● Digital output: Maximum output current (all channels together) is limited to 75% per group (e.g. 8 A => 6 A)

● Analog output only when configured as a voltage output: maximum total output current limit of 75% per group (e.g. 40 mA => 30 mA)

● Analog output only when configured as a current output: The maximum number of output channels used at the same time is limited to 75% per group (e.g. 4 channels => 3 channels)
