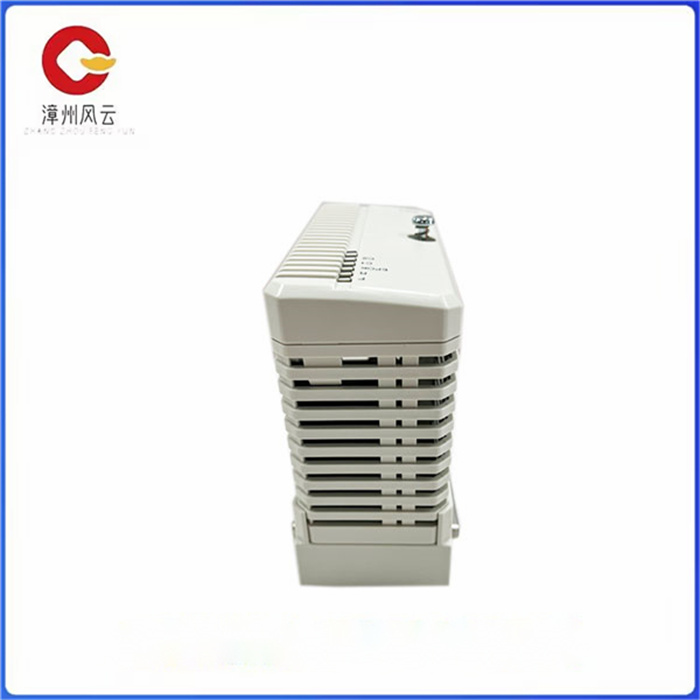

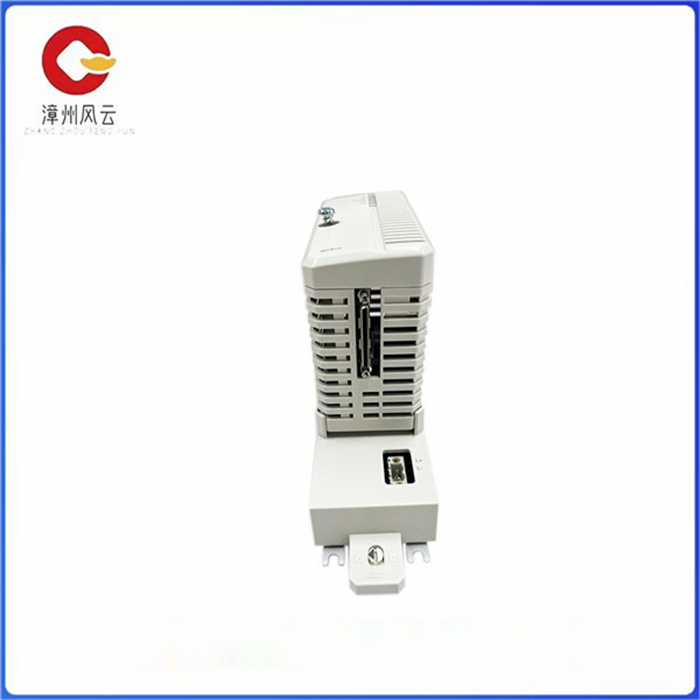

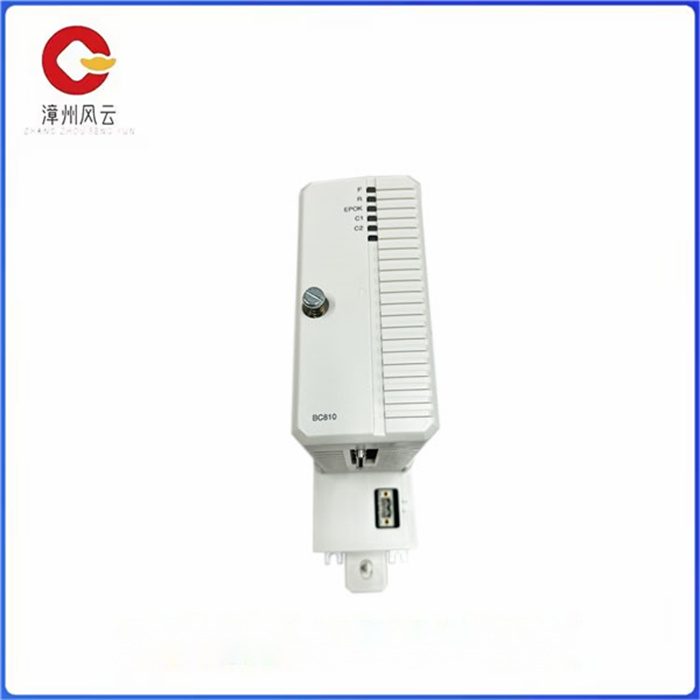

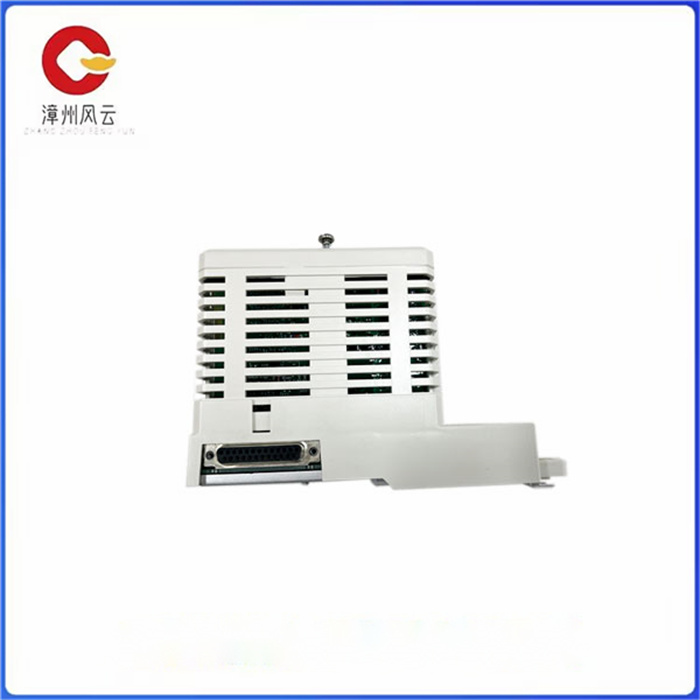

BC810 控制器模块 用于扩展带有通信接口单元的板载通信端口

BC810 控制器模块 用于扩展带有通信接口单元的板载通信端口

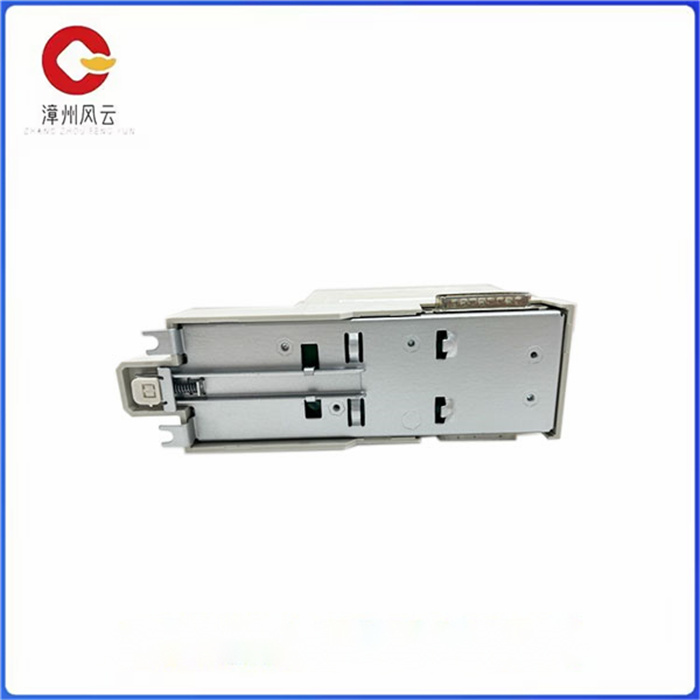

BC810单元由两个基本部分组成：基板（TP857）和电源/逻辑板。基板是连接CEX总线和外部电源的连接器所在的位置。它通过外壳的金属部件接地至DIN导轨。该板还带有外部电源表决二极管和保险丝。电源和逻辑板包含+3.3V转换器、逻辑、用于CEX总线互连的驱动器以及用于互连电缆的连接器。

BC810可与PM857、PM861A、PM862、PM863、PM864A、PM865、PM866、PM86A、PM867和PM891一起使用。

在具有两个互连BC810和主/备份CPU对的完全冗余系统中，BC810支持在线更换CPU底板，而不会干扰CEX流量。如果必须更换BC810，则停止到所连接的CEX段的所有业务。

CEX总线用于扩展带有通信接口单元的车载通信端口。也可以在CEX总线上使用冗余通信接口。CEX总线互连单元BC810用于通过将CEX总线划分为单独的段来增加其可用性。这提高了具有冗余通信接口的系统的可用性。

BC810 控制器模块 用于扩展带有通信接口单元的板载通信端口

The BC810 unit consists of two basic parts: the substrate (TP857) and the power/logic board. The substrate is where the connectors that connect the CEX bus to the external power supply are located. It is grounded to the DIN rail through the metal parts of the housing. The board also has an external power voting diode and fuse. The power and logic board contains +3.3V converters, logic, drivers for CEX bus interconnections, and connectors for interconnect cables.

The BC810 can be used with PM857, PM861A, PM862, PM863, PM864A, PM865, PM866, PM86A, PM867, and PM891.

In a fully redundant system with two interconnected BC810 and primary/backup CPU pairs, the BC810 supports online CPU backboard replacement without interfering with CEX traffic. If the BC810 must be replaced, stop all services on the connected CEX segment.

The CEX bus is used to extend vehicle communication ports with communication interface units. Redundant communication interfaces can also be used on the CEX bus. The CEX bus interconnect unit BC810 is used to increase the availability of the CEX bus by dividing it into separate segments. This improves the availability of systems with redundant communication interfaces.
