AI810 模拟量输入模块有 8 个通道

AI810 模拟量输入模块有 8 个通道

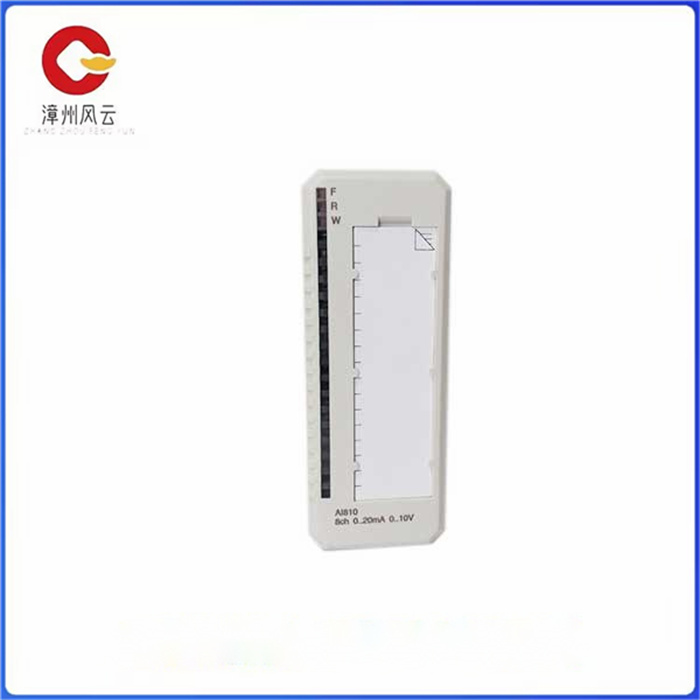

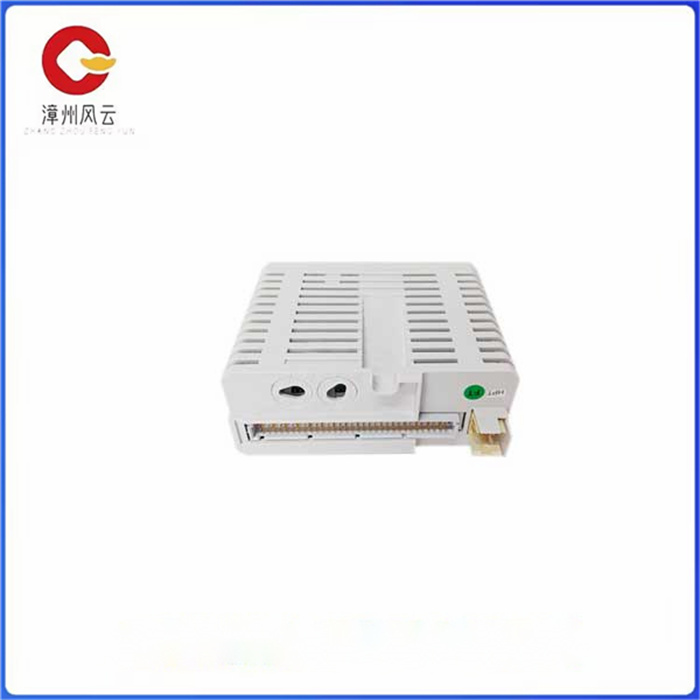

AI810 模拟量输入模块有 8 个通道。每个通道可以是电压或电流输入。电流输入能够处理至少 30 V d.c 的变送器电源短路而不会损坏。电流限制由PTC电阻器执行。电流输入的输入电阻为 250 欧姆，包括 PTC。

电压输入能够承受至少 30 V 直流的过压或欠压。输入电阻为290k欧姆。发射器电源可以连接到 L1+、L1- 和/或 L2+、L2-。

特点和优势

8 个通道，用于 0...20 mA、4...20 mA、0...10 V 或 2...10 V d.c.，单端单极性输入

1 组 8 个通道与地隔离

12 位分辨率

输入分流电阻器由PTC电阻器保护至30 V

模拟输入短路至ZP或+24 V

输入可承受HART通信。

AI810 模拟量输入模块有 8 个通道

The AI810 analog input module has eight channels. Each channel can be a voltage or current input. The current input is capable of handling a short circuit in the transmitter power supply of at least 30 V d.c without damage. Current limiting is performed by PTC resistors. The input resistance for current input is 250 ohms, including PTC.

The voltage input can withstand overvoltage or undervoltage of at least 30 V DC. The input resistance is 290k ohms. Transmitter power supplies can be connected to L1+, L1-, and/or L2+, L2-.

Characteristics and advantages

8 channels for 0... 20 mA, 4... 20 mA, 0... 10 V or 2... 10 V d.c. single-ended unipolar input

A group of 8 channels are isolated from the ground

12-bit resolution

The input shunt resistor is protected to 30 V by a PTC resistor

Analog input shorted to ZP or +24 V

Input can withstand HART communication.
