5SHX2645L0002 ABB 二极管 可控硅模块 励磁系统

5SHX2645L0002 ABB 二极管 可控硅模块 励磁系统

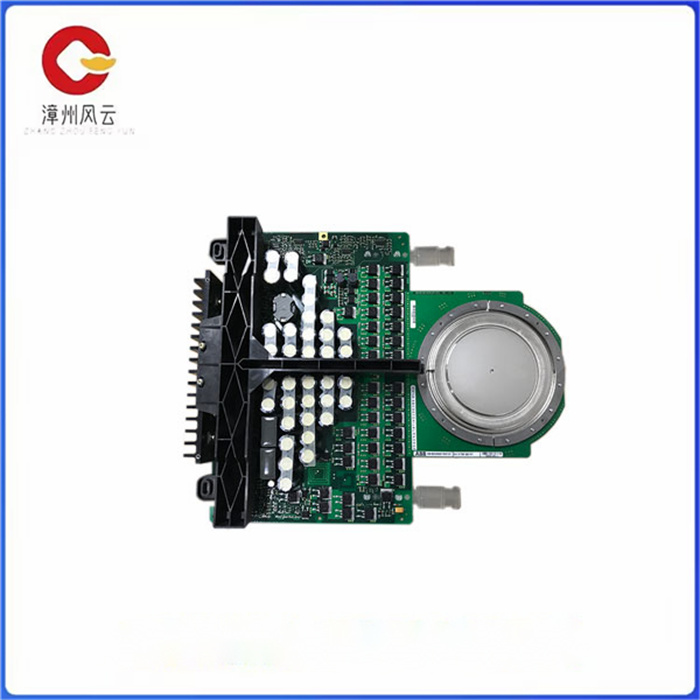

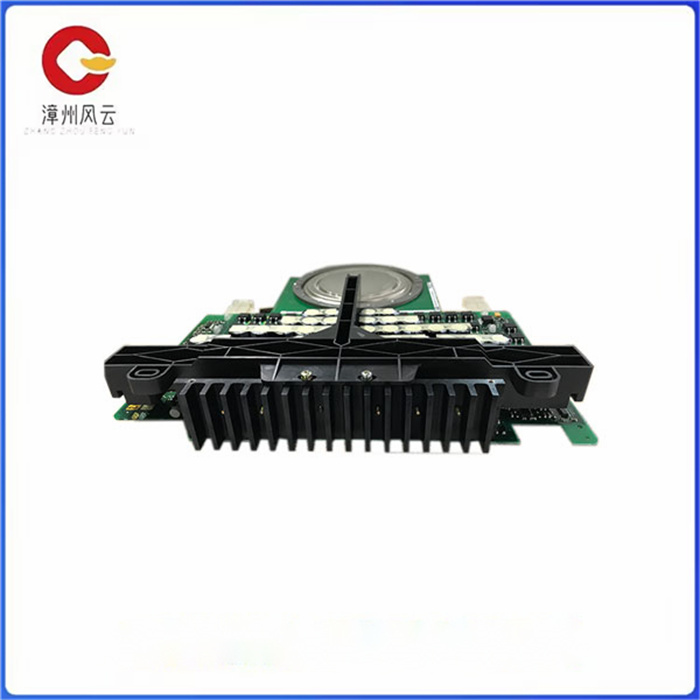

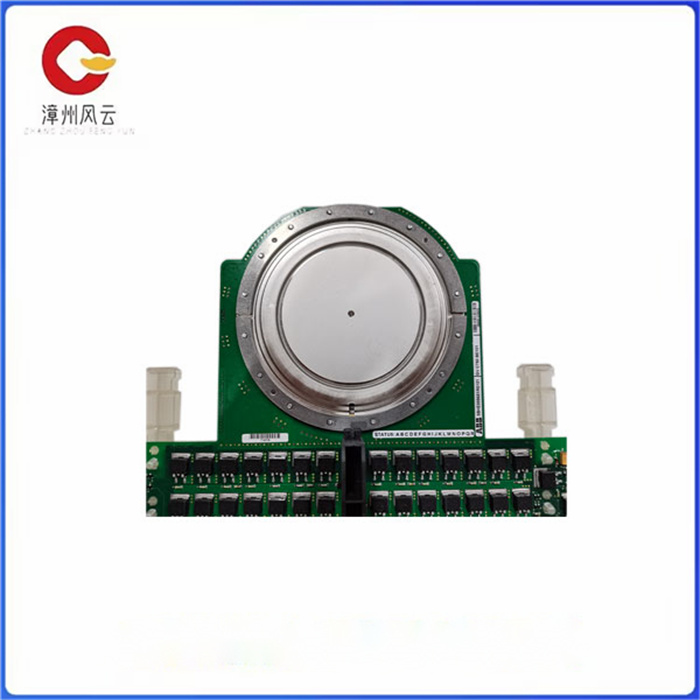

IGCT是将GTO芯片与反并联二极管和门极驱动电路集成在-起，再与其门极驱动器在外围以低电感方式连接,结合了  晶体管的稳定关断能力和晶闸管低通态损耗的优点，  在导通阶段发挥晶闸管的性能，关断阶段呈现晶体管的特性。

IGCT 具有电流大、阻断电压高、开关频率高、可靠性  高、结构紧凑、低导通损耗等特点，而且造成本低,成品率高，有很好的应用前景。  己用于电力系统电网装置(100MVA) 和的中功率I业驱动装置(5MW)IGCT在中压变频器领域内成功的应用了11年.  的时间(到09年为止), 由于IGCT的高速开关能力无需缓冲电路，因而所需的功率元件数目更少,  运行的可靠性大大增高。IGCT集 IGBT (绝缘门极双极性晶体管)的高速开关特性和GTO (门极关断品闸管)的高阻断  电压和低导通损耗特性于一体，一般触发信 号通过光纤传输到IGCT单元。  在ACS6000的有缘整流单元的相模块里，每相模块由IGCT 和二极管、 钳位电容组成，由独立的门极供电单元GUSP为  其提供能源。

5SHX2645L0002 ABB 二极管 可控硅模块 励磁系统

IGCT is to integrate the GTO chip with the anti-parallel diode and gate drive circuit at the beginning, and then connect it with the gate driver in a low inductance mode at the periphery, combining the stable turn-off ability of the transistor and the advantages of the low on-state loss of the thyristor, to play the performance of the thyristor in the on-stage, and to show the characteristics of the transistor in the off-stage.

IGCT has the characteristics of large current, high blocking voltage, high switching frequency, high reliability, compact structure, low on-off loss and so on, and has a good application prospect. IGCT has been used in power system power grid devices (100MVA) and medium power I drive devices (5MW)IGCT has been successfully applied in the field of medium voltage inverter for 11 years. Time (up to 2009), due to the high-speed switching capability of IGCT without buffer circuit, Therefore, the number of power components required is less, and the reliability of operation is greatly increased. The IGCT combines the high-speed switching characteristics of the IGBT (insulated gate bipolar transistor) with the high blocking voltage and low on-loss characteristics of the GTO (gate shutdown gate tube), and the trigger signal is generally transmitted to the IGCT unit through the optical fiber. In the phase module of the ACS6000 marginal rectifier unit, each phase module consists of an IGCT, a diode, and a clamp capacitor, and is powered by an independent gate power supply unit GUSP.
