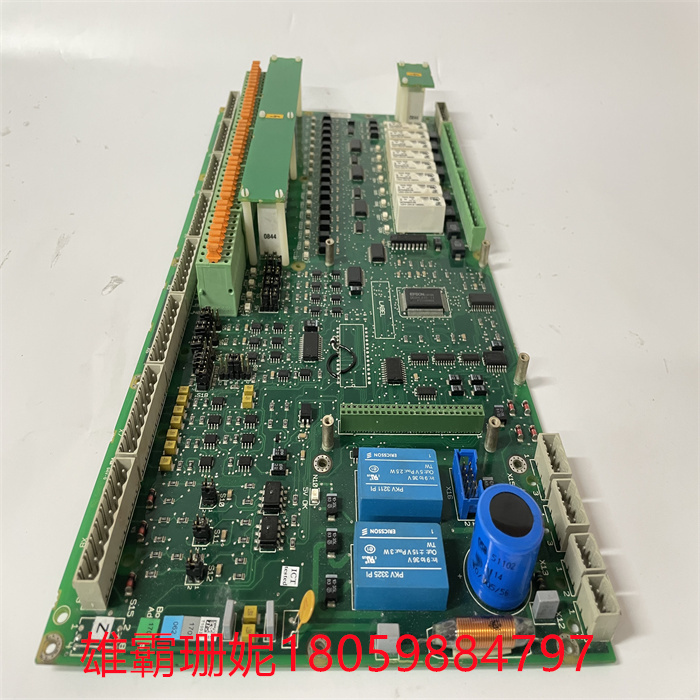

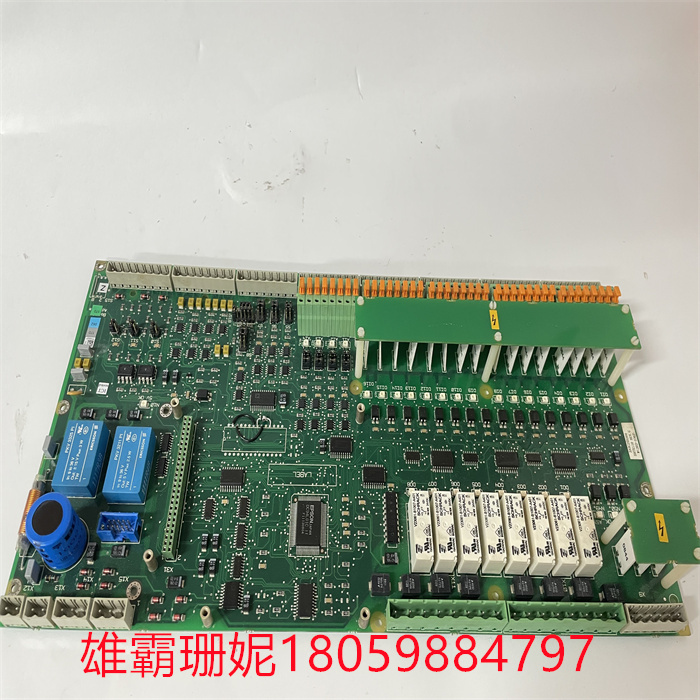

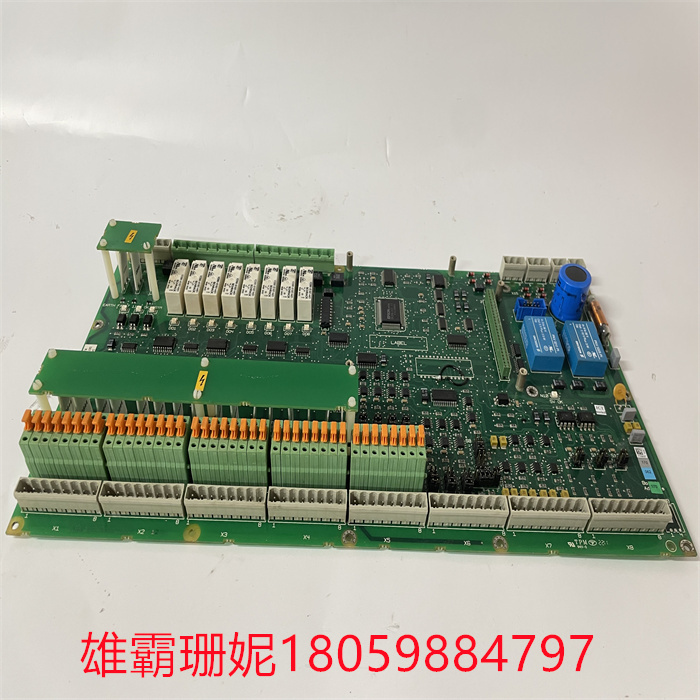

3ASC25H209DATX110 ABB 控制器 PLC卡件 国外进口

3ASC25H209DATX110 ABB 控制器 PLC卡件 国外进口

电源电路画成水平线，三相交流电源相序L1、L2、L3由上而下排列，中线N和保护地线PE画在相线之下。直流电源则正端在上，负端在下画出。

主电路是指受电的动力装置及保护电器，它通过的是电动机的工作电流，电流较大，主电路要垂直电源电路画在原理图的左侧。控制电路是指控制主电路工作状态的电路。信号电路是指显示主电路工作状态的电路。照明电路是指实现机床设备局部照明的电路。这些电路通过的电流都较小，画原理图时，控制电路、信号电路、照明电路要依次垂直画在电路的右侧。

The power circuit is drawn as a horizontal line, the three-phase AC power supply phase sequence L1, L2, L3 is arranged from top to bottom, and the middle line N and the PGND line PE are drawn below the phase line. The DC power supply has the positive end on the top and the negative end on the bottom.

The main circuit refers to the power device and protection electrical appliances, it is through the working current of the motor, the current is larger, the main circuit to vertical power circuit drawn on the left side of the schematic. The control circuit refers to the circuit that controls the working state of the main circuit. Signal circuit refers to the circuit that shows the working state of the main circuit.

The lighting circuit refers to the circuit that realizes the partial lighting of the machine tool equipment. The current through these circuits is small, when drawing the schematic, the control circuit, the signal circuit, the lighting circuit should be vertically drawn on the right side of the circuit.
