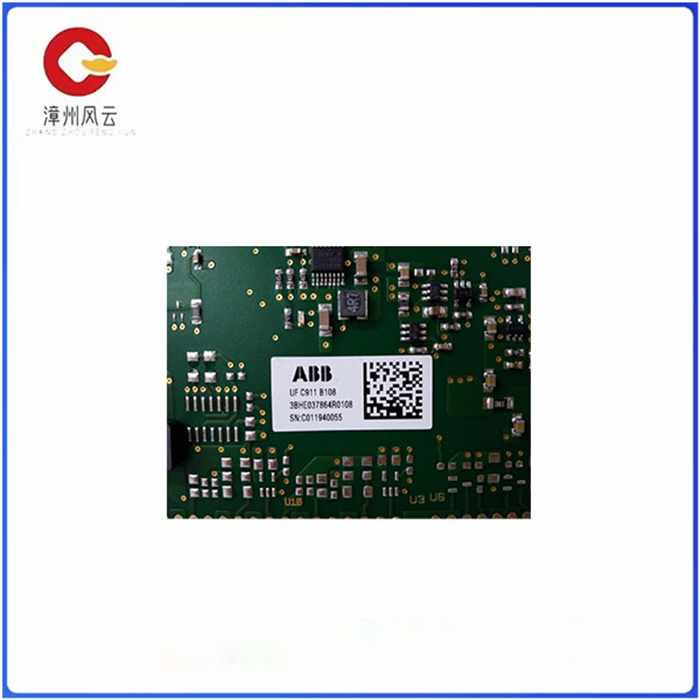

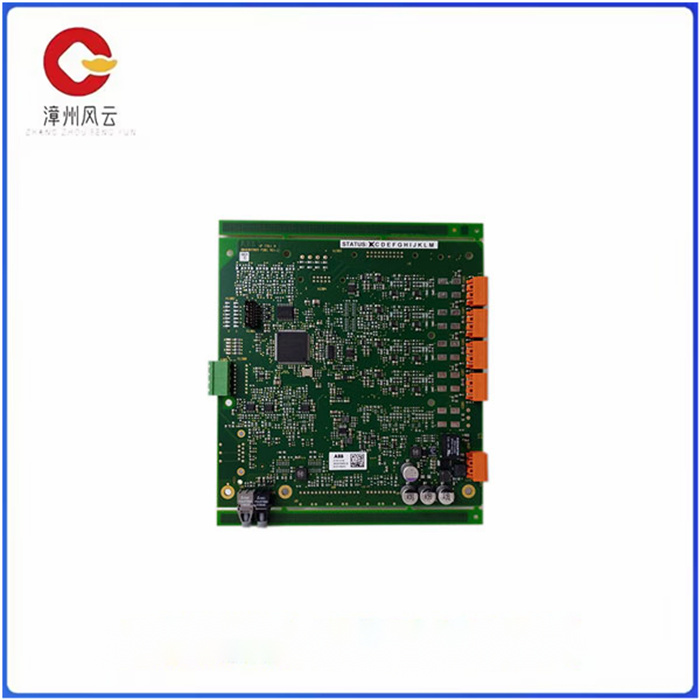

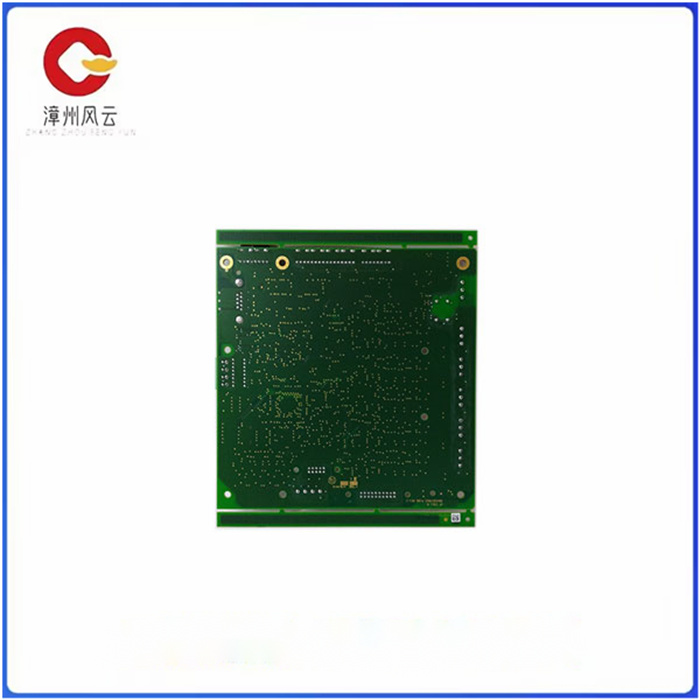

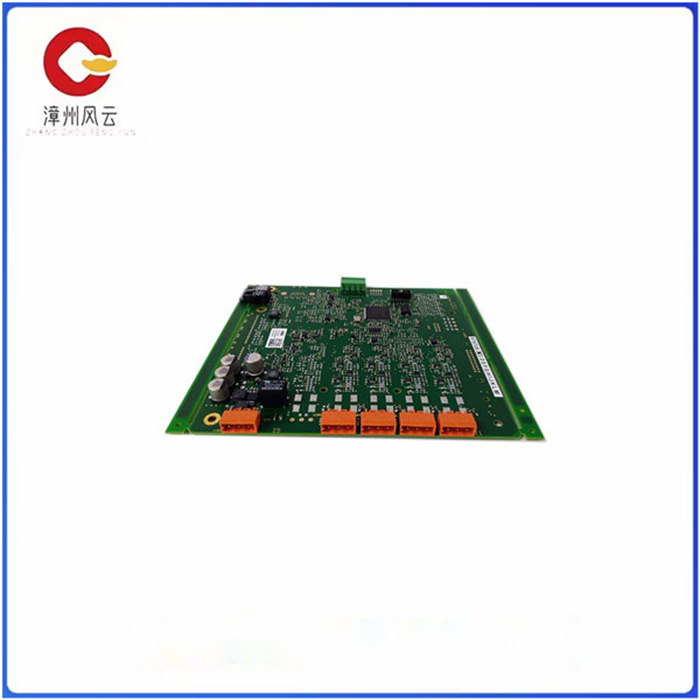

UFC911B108 ABB 是一个AO处理模块

UFC911B108 ABB 是一个AO处理模块

MTU分配两个Module Bus，一个给每个I/0模块，另一个MTU。它还通过将输出位置信号转移到下一个MTU来生成正确的I/O模块地址。它有一个机械锁问，将MTU锁定在DIN导轨上

四个机械键，每个I/0模块两个，用于为不同类型的I/0模块配置MTU。这只是一种机械配置，不会影响MTU或1/0模块的功能。每把钥匙有六个位置，总共有36种不同的配置.

特点和优势

使用双线连接和现场电源分配完成I/O模块的安装。

多达8个通道的现场信号和过程电源连接

连接到两个Module By和/o模块

机械键控可防止插入错误的I/O模块

接地用DIN导轨的闭锁装置。

DIN导轨安装

UFC911B108 ABB 是一个AO处理模块

MTU assigns two Module buses, one for each I/0 module and the other MTU. It also generates the correct I/O module address by transferring the output position signal to the next MTU. It has a mechanical lock that locks the MTU to the DIN rail

Four mechanical keys, two for each I/0 module, are used to configure MTU for different types of I/0 modules. This is a mechanical configuration only and does not affect the functionality of the MTU or 1/0 module. Each key has six locations and a total of 36 different configurations.

Characteristics and advantages

The I/O module is installed using a dual-wire connection and onsite power distribution.

Up to 8 channels of field signal and process power connections

Connect to the two Module By and /o modules

Mechanical keying prevents the insertion of incorrect I/O modules

Latching device for DIN rail for grounding.

DIN rail mounting
