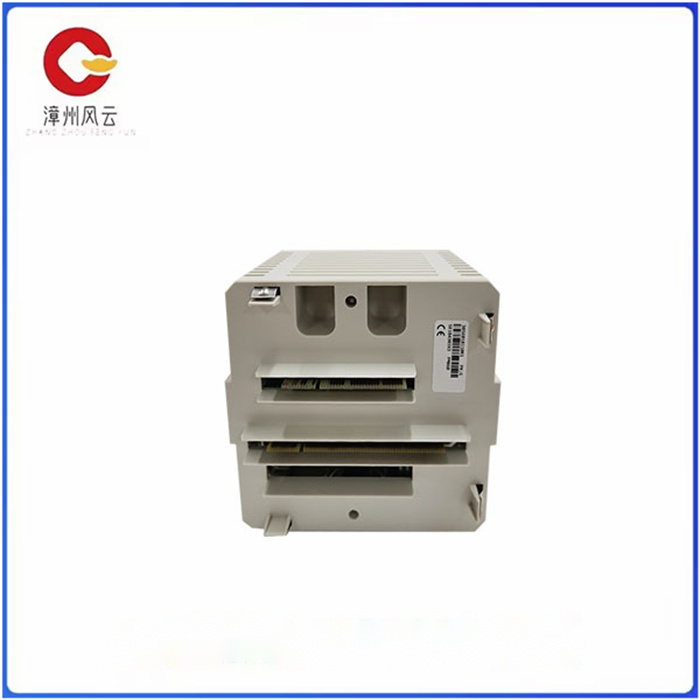

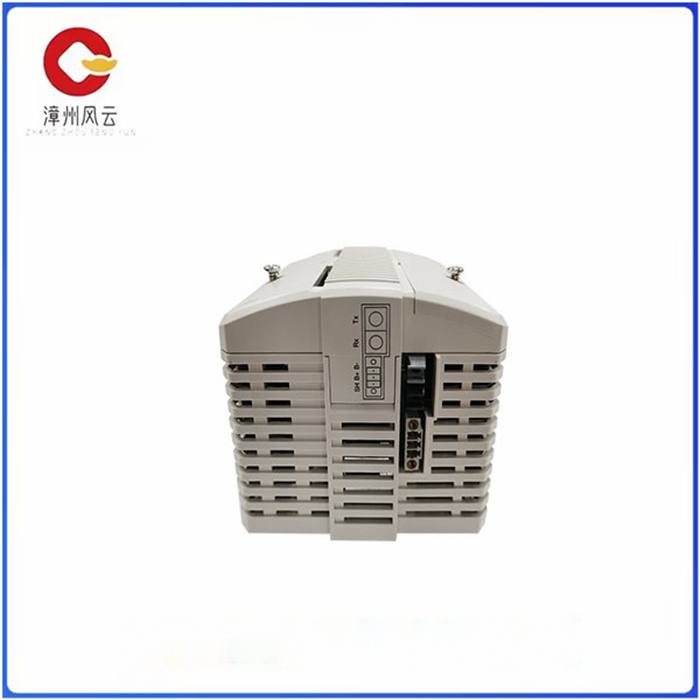

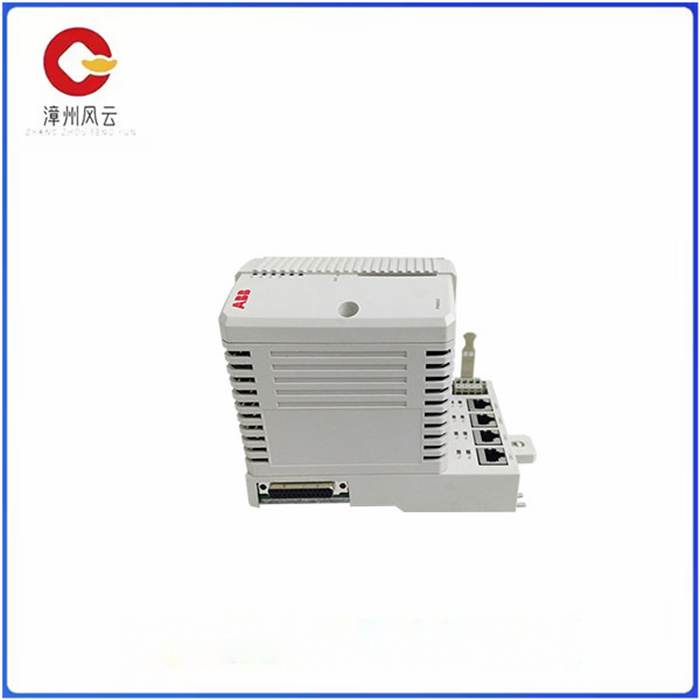

PM860 ABB 处理器模块 AC800M系列 自动化系统设备

PM860 ABB 处理器模块 AC800M系列 自动化系统设备

CPU主板包含微处理器和RAM、实时时钟、LED指示灯、启动按钮和紧凑型闪存接口

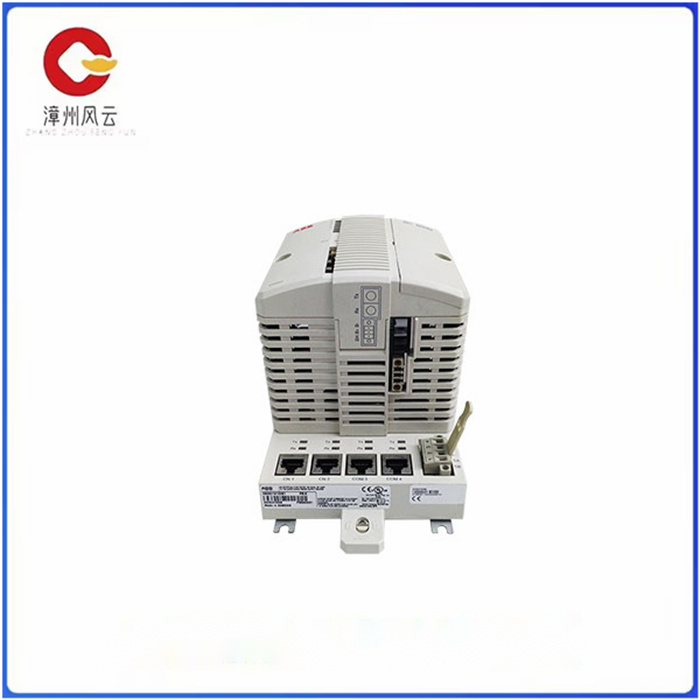

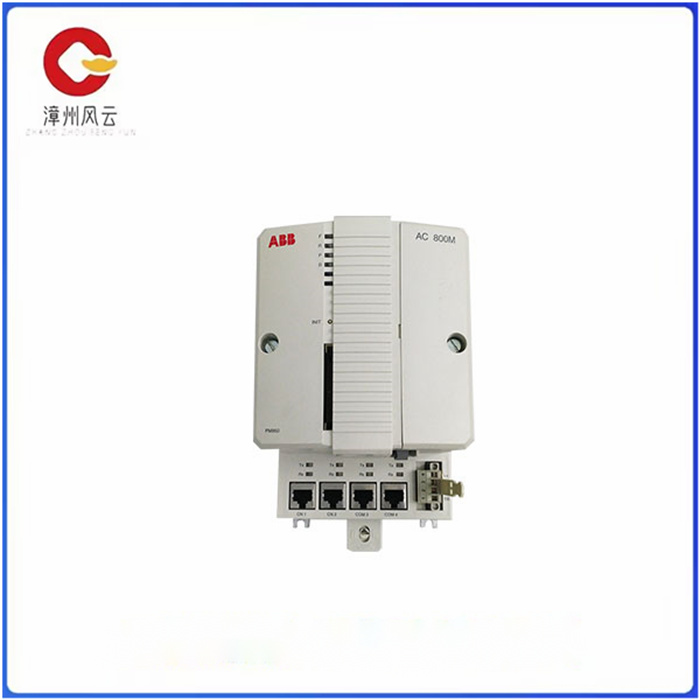

PM860A控制器的底板有两个RJ45以太网端口(CN1、CN2)用于连接到控制网络，以及两个RJ45串行端口(COM3、COM4)。其中一个串行端口(COM3)是带有调制解调器控制信号的RS-232C端口，而另一个端口(COM4)则被隔离并用于连接配置工具

简单DIN轨道连接/卸料程序，使用唯一的滑道&锁机构。所有base plates都有唯一的以太网地址，每个CPU都有一个硬件标识。地址可以在连接到TP830 base plate的以太网地址标签上找到。

PM860 ABB 处理器模块 AC800M系列 自动化系统设备

The CPU motherboard contains a microprocessor and RAM, a real-time clock, LED indicators, a start button, and a compact flash interface

The baseplate of the PM860A controller has two RJ45 Ethernet ports (CN1, CN2) for connecting to the control network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool

Simple DIN rail connection/discharge procedure with unique slide & lock mechanism. All base plates have a unique Ethernet address, and each CPU has a hardware ID. The address can be found on the Ethernet address label connected to the TP830 base plate.

PM860 ABB 处理器模块 AC800M系列 自动化系统设备
