PM2210 ABB 卡件I/O输入输出模块

PM2210 ABB 卡件I/O输入输出模块

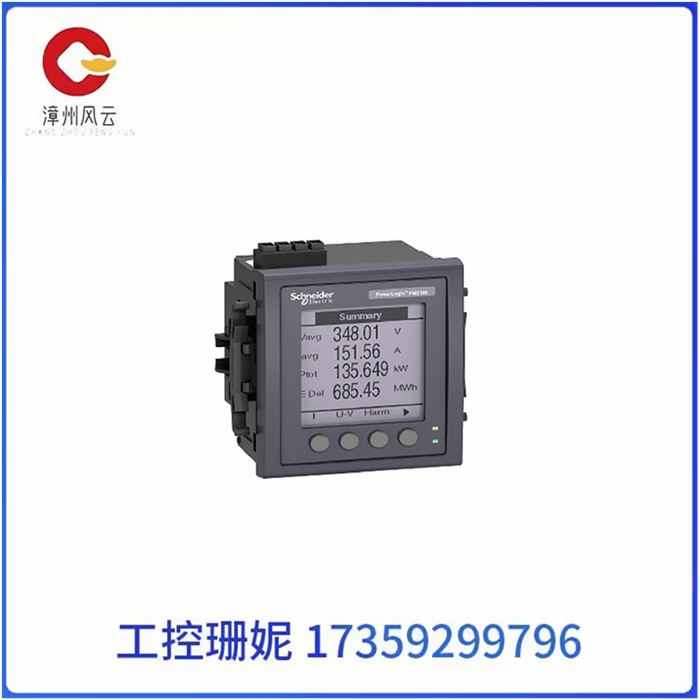

该设备是面板安装或嵌入式功率计，边框尺寸为96mm x 96mm，背光LCD显示128×128像素。该仪表测星有功能量的精度等级为class 1.0，符合IEC 62053-21标准，采样率为每周期64个样本。

能多测量除电压、电流、频率和功率因数外的所有三个功率和能量矢量，如有功、表观和无功.加上电流和电压在每相位基础上的总i谐波失真。该仪表将在50Hz或6OHz网络频率下工作，并接受44至300V的通用控制电源电压，从线路到中性点交流或直流电压。

本仪表的额定电流为1A或5A输入。它支持多达13种不同类型的单相，两相或三相配置类型的接线方案。相间电压测量范围为线对线交流35～480v(45 ~65hz)，线对中性电压测量范围为20～277v (45 ~ 65hz)。该仪表也有一个数字脉冲输出的任何能星参数可配置到不同的能量比例。产品尺寸如下:宽3.78英寸(96毫米)，深2.16英寸(54毫米)，高3.78英寸(96毫米)，产品重量10.58盎司(300克)。

PM2210 ABB 卡件I/O输入输出模块

The device is a panel mounted or embedded power meter with a bezel size of 96mm x 96mm and a backlit LCD display of 128 x 128 pixels. The instrument measures the active energy of the star with an accuracy class 1.0, in accordance with IEC 62053-21, with a sampling rate of 64 samples per cycle.

It can measure all three power and energy vectors, such as active, apparent and reactive power, except voltage, current, frequency and power factor. Add the total i harmonic distortion of the current and voltage on a per phase basis. The meter will operate at 50Hz or 6OHz network frequencies and accept a universal control supply voltage of 44 to 300V, from line to neutral AC or DC voltage.

The meter is rated for 1A or 5A input. It supports up to 13 different types of wiring schemes in single, two or three phase configurations. The interphase voltage measurement range is line-to-line AC 35-480V (45-65Hz), and the line-to-neutral voltage measurement range is 20-277V (45-65Hz). The meter also has a digital pulse output for any energy star parameters that can be configured to different energy ratios. Dimensions are as follows: width 3.78 inches (96 mm), depth 2.16 inches (54 mm), height 3.78 inches (96 mm), product weight 10.58 ounces (300 grams).

PM2210 ABB 卡件I/O输入输出模块
