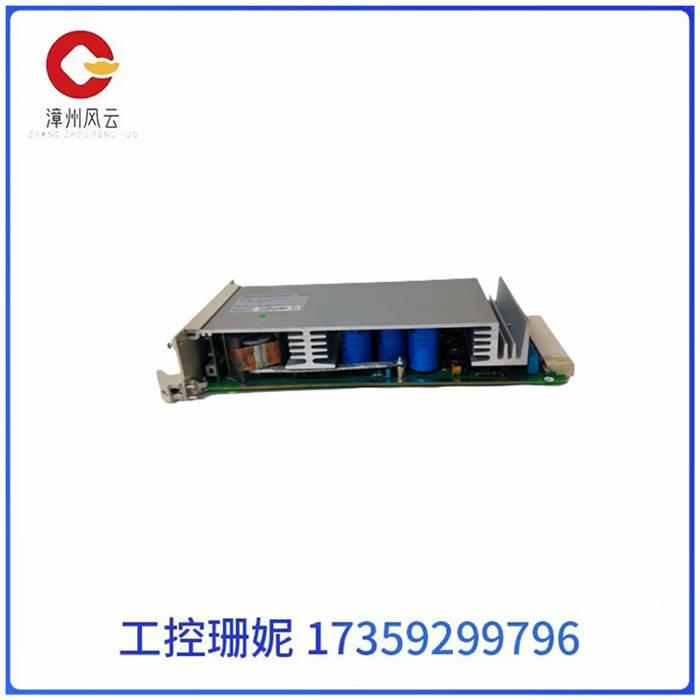

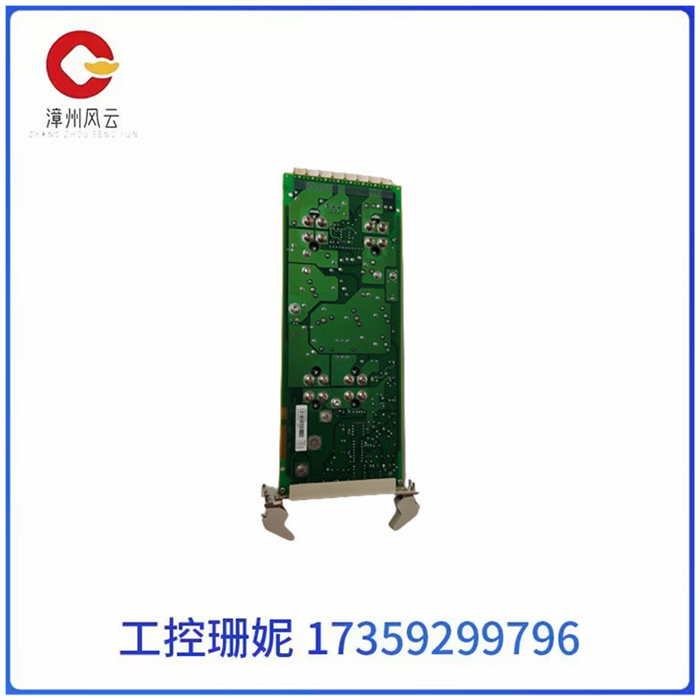

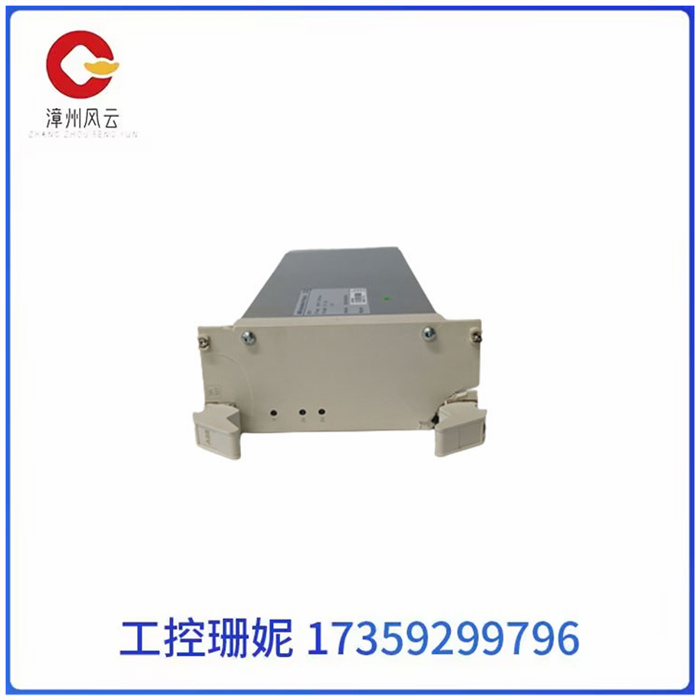

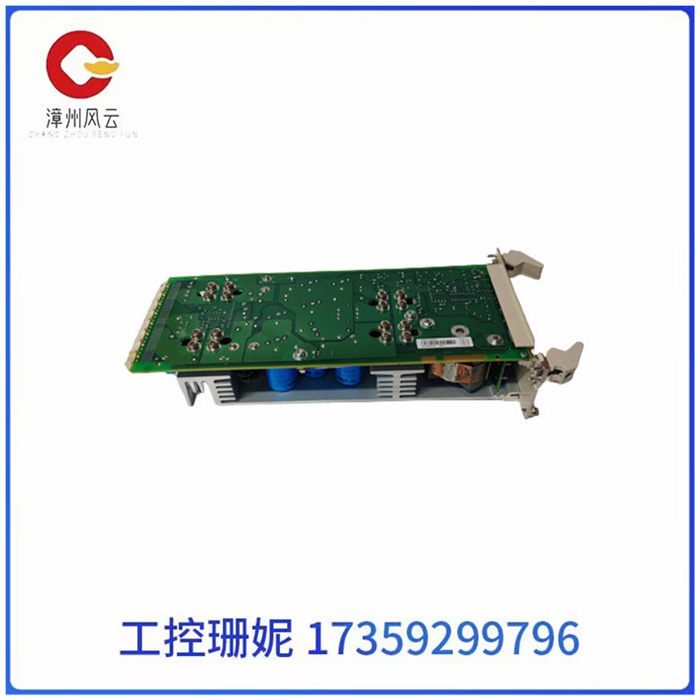

SR511 3BSE000863R0001 ABB SR511稳压器24V/5V

SR511 3BSE000863R0001 ABB SR511稳压器24V/5V

PLC控制系统的日常维护和保养比较简单，主要是更换保险丝和锂电池,基本没有其它易损元器件。由于存放用户程序的随机存储器(RAM)、计数器和具有保持功能的辅助继电器等均用锂电池保护，锂电池的寿命大约为5年，当锂电池的电压逐渐降低到一定程度时，PLC基本单元上电池电压跌落到指示灯亮，提示用户注意有锂电池所支持的程序还可保留一周左右，必须更换电池，这是日常维护的主要内容。

调换锂电池的步骤为：

■在拆装前，应先让PLC通电15秒以上(这样可使作为存储器备用电源的电容器充电，在锂电池断开后，该电容可对PLC做短暂供电，以保护RAM中的信息不丢失)；

■断开PLC的交流电源；

■打开基本单元的电池盖板；

■取下旧电池，装上新电池；

■盖上电池盖板。

注意更换电池时间要尽量短，一般不允许超过3分钟。如果时间过长，RAM中的程序将消失。

SR511 3BSE000863R0001 ABB SR511稳压器24V/5V

The daily maintenance and maintenance of PLC control system is relatively simple, mainly replacing fuses and lithium batteries, and basically no other vulnerable components. Since the random access memory (RAM), counters and auxiliary relays with retention functions are protected by lithium batteries, the life of lithium batteries is about 5 years, when the voltage of lithium batteries gradually decreases to a certain extent, the battery voltage on the PLC basic unit falls to the indicator light, prompting the user to pay attention to the program supported by lithium batteries can be retained for about a week. The battery must be replaced, which is a major part of routine maintenance.

The steps to replace the lithium battery are:

■ Before disassembly, the PLC should be energized for more than 15 seconds (so that the capacitor used as a backup power supply for memory can be charged, and after the lithium battery is disconnected, the capacitor can supply the PLC for a short time to protect the information in the RAM from being lost);

■ Disconnect the AC power supply of PLC;

■ Open the battery cover of the basic unit;

■ Remove the old battery and install the new battery;

■ Cover the battery cover.

The battery replacement time should be as short as possible, generally not more than 3 minutes. If the time is too long, the program in RAM will disappear.

SR511 3BSE000863R0001 ABB SR511稳压器24V/5V

型号推荐

ABB DCS GD C806 B01 ABB GJR5132200R0001 35AB90 可编程控制器模块

ABB DCS UC C922 A ABB 07ZE40 gjr2268800r22 通道，本安型模拟输出

ABB DCS UF C911 B101 ABB GJR2359200R0850 CC1模块

ABB DCS UD C920 BE101 ABB 07YS40 gjr2268700r1 变压器

ABB DCS UFD402A101 ABB GJR5132200R0001 / 35AB90 魏德米勒

ABB DCS UD C920 BE102 ABB GJR5142600R0001 35EB91B 通讯器

ABB DCS UA D155 A0111 ABB GJR5215100R1 POWER SUPPLY BOARD 求教器

ABB DCS DD C779 CE102 ABB GJR5215200R0001 07TI81 开关电源

ABB DCS PC D237 A101 ABB 07XS40 E gjr2268600r1 PLC模块
