技术说明

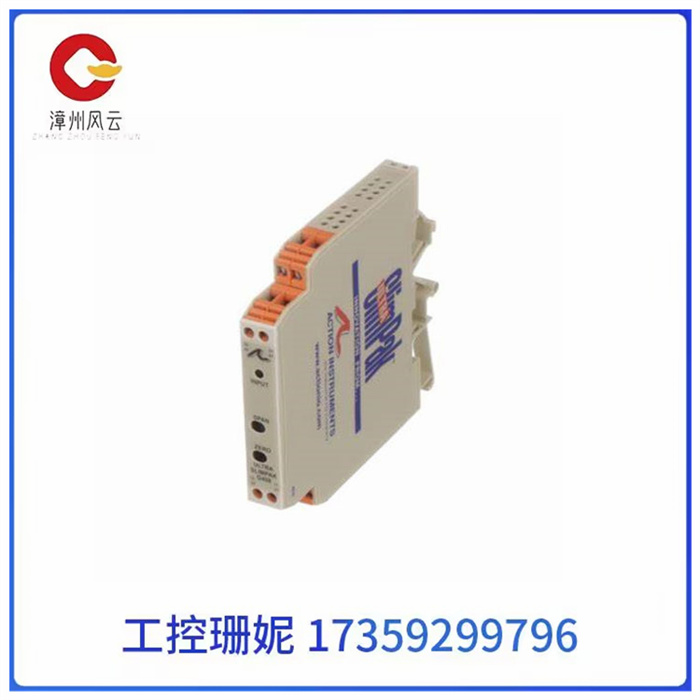

Ultra SlimPak G408是DIN导轨安装，直流输入信号调节器，输入，输出和电源之间具有1800VDC隔离。现场可配置的输入和输出为直流电流和电压信号提供灵活，广泛的能力。

输入可以配置为12个电压范围从10mV到100V或6个电流范围从1mA到100mA(见表1)。输出是线性的输入，可以设置为0-5V,0-10V,0-1mA, 0-20mA或4-2O0mA(型号G408-001)和-5到+5V或-10到+10V(型号g408 -1001)。广泛的范围，精确的零点和跨度罐允许50%的偏移量和跨度转弯下降在18个开关可选范围内。

例如，0-2mA输入范围可调低至0-1mA并提供全量程输出信号(例如4-20mA)，或调低并偏移以实现1-2m A/4-20mA /O组合。G408还接受双极输入(例如10V范围设置为双极=-10到+10V)，并提供可选择的正常或反向操作(例如4-20mA/20-4mA)。

基于ASIC的I/O通道光学隔离到180OVDC,并与电源变压器隔离。该G408是有用的消除接地回路，转换信号水平，并提供信号驱动。现场可配置，广泛的功能确保了大多数DC到d应用的最大灵活性，最大限度地减少备件需求。诊断LED G408配备了一个双功能LED信号监视器。

绿色的前置LED显示直流电源和输入信号状态。有源直流电源由发光LED指示。如果输入信号超过满量程的110%，LED将以8Hzi闪烁。低于-10%时，闪频为4Hz

G408-0001 工业自动化 控制模块 DCS PLC系统

Technical specification

Ultra SlimPak G408 is DIN rail mount, DC input signal regulator, with 1800VDC isolation between input, output and power supply. Field configurable inputs and outputs provide flexible, broad capabilities for DC current and voltage signals.

The inputs can be configured with 12 voltage ranges from 10mV to 100V or 6 current ranges from 1mA to 100mA(see Table 1). The output is a linear input that can be set to 0-5V,0-10V,0-1mA, 0-20mA or 4-2O0mA(model G408-001) and -5 to +5V or -10 to +10V(model g408-1001). The wide range, precise zero point and span tanks allow 50% offsets and span turn drops in an optional range of 18 switches.

For example, the 0-2mA input range can be turned down to 0-1mA and provide A full-range output signal (e.g. 4-20mA), or turned down and offset to achieve a 1-2m A/4-20mA /O combination. The G408 also accepts bipolar input (e.g. 10V range set to bipolar =-10 to +10V) and offers optional normal or reverse operation (e.g. 4-20mA/20-4mA).

The ASIC-based I/O channel is optically isolated to 180OVDC and isolated from the power transformer. The G408 is useful for eliminating ground loops, converting signal levels, and providing signal drive. Field-configurable, extensive functionality ensures maximum flexibility for most DC to d applications, minimizing spare parts requirements. The Diagnostic LED G408 is equipped with a dual-function LED signal monitor.

The green front LED displays the DC power supply and input signal status. The active DC power supply is indicated by an illuminated LED. If the input signal exceeds 110% of full scale, the LED will flash at 8Hzi. When the frequency is lower than -10%, the flash frequency is 4Hz
