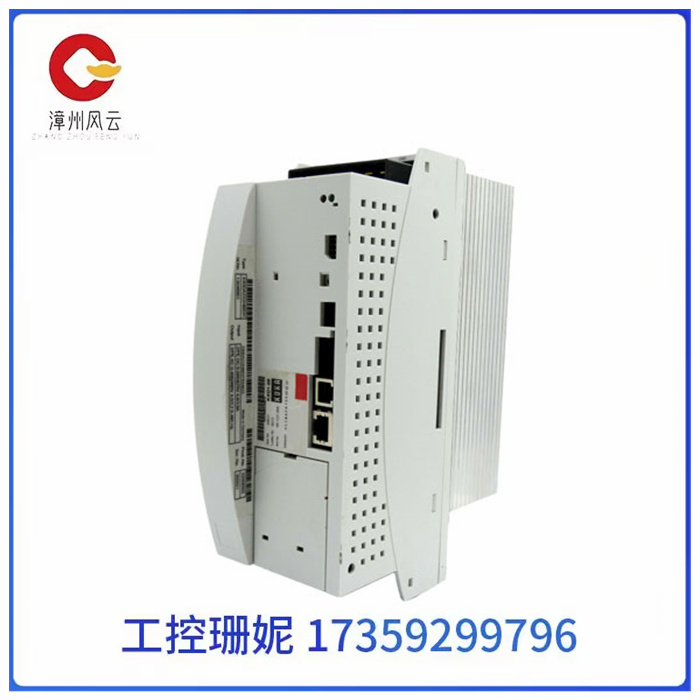

KSD1-08工控备件 卡件模块

KSD1-08工控备件 卡件模块

KSD1-08工控备件 卡件模块

PLC的硬件主要由中央处理器(CPU)、存储器、输入单元、输出单元、通信接口、扩展接口、电源等部分组成。

其中CPU是PLC的核心，按照系统程序赋予的功能，指挥PLC有条不紊地进行工作;

存储器主要用来存放系统程序、用户程序及工作数据;输入单元和输出单元是连接现场输入/输出设备与CPU之间的接口电路，通过输入接口可以检测被控对象的数据，以这些数据作为PLC对被控对象进行控制的依据，同时PLC又通过输出接口将处理结果送给被控制对象，以实现控制目的;通信接口用于与监视器、打印机、其它PLC、编程器、上位机等外设连接;

扩展接口用于连接扩展单元;PLC配有开关电源，以供内部电路使用。

KSD1-08工控备件 卡件模块

The hardware of PLC is mainly composed of central processing unit (CPU), memory, input unit, output unit, communication interface, expansion interface, power supply and so on.

The CPU is the core of PLC, according to the function given by the system program, command PLC to work in an orderly manner;

Memory is mainly used to store system programs, user programs and working data; The input unit and the output unit are the interface circuit connecting the field input/output device and the CPU. Through the input interface, the data of the controlled object can be detected, and the data is used as the basis for PLC to control the controlled object. At the same time, the PLC sends the processing results to the controlled object through the output interface to achieve the control purpose. The communication interface is used to connect with peripheral devices such as monitors, printers, other PLCS, programmers, and upper computers.

The expansion interface is used to connect the expansion unit; The PLC is equipped with switching power supply for internal circuit use.
