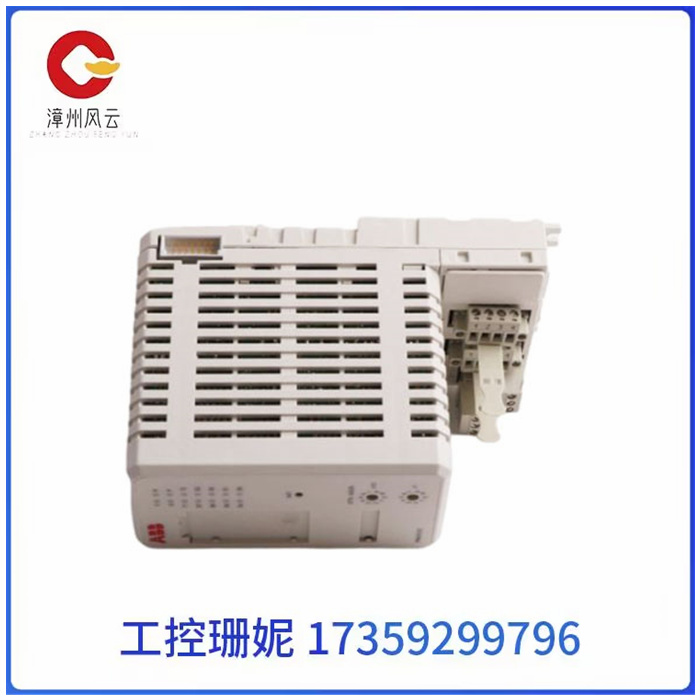

ABB控制器单元 PM810V2 3BSE013220R1

ABB控制器单元 PM810V2 3BSE013220R1

ABB控制器单元 PM810V2 3BSE013220R1

控制器性能

·CPU板上集成供电单元、CPU处理器及内存

·五款不同的控制器类型共用户选择

·分别为PM851、PM856、PM860、PM861、PM864、PM865

·内存存储运行Firmware，控制单元硬件配置信息及应用程序

·支持12个现场总线模块扩展

·集成2个Ethernet接口，2个RS232C接口，ModulBus电气及光纤扩展接口

·支持冗余设置，减少故障点错误并保证控制系统运行效率

·多至16个任务，最小任务周期1ms，SOE顺序发生事件分辨率<1ms

CPU可以通过以太网接口实现控制器级的通信，2个以太网口可设置为冗余，并内置冗余切换程序，用于提高系统可靠性。

ABB控制器单元 PM810V2 3BSE013220R1

Controller performance

· Integrated power supply unit, CPU processor and memory on the CPU board

· Five different controller types for users to choose from

· PM851, PM856, PM860, PM861, PM864, PM865 respectively

· Memory stores Firmware, control unit hardware configuration information, and applications

· Supports 12 fieldbus module expansions

· Integrate 2 Ethernet interfaces, 2 RS232C interfaces, ModulBus electrical and optical fiber expansion interfaces

· Support redundant Settings to reduce fault point errors and ensure the efficiency of the control system

· Up to 16 tasks, minimum task cycle 1ms, SOE sequence event resolution <1ms

The CPU implements controller-level communication through Ethernet interfaces. The two Ethernet ports can be configured as redundant ports, and a redundancy switching program is built in to improve system reliability.
