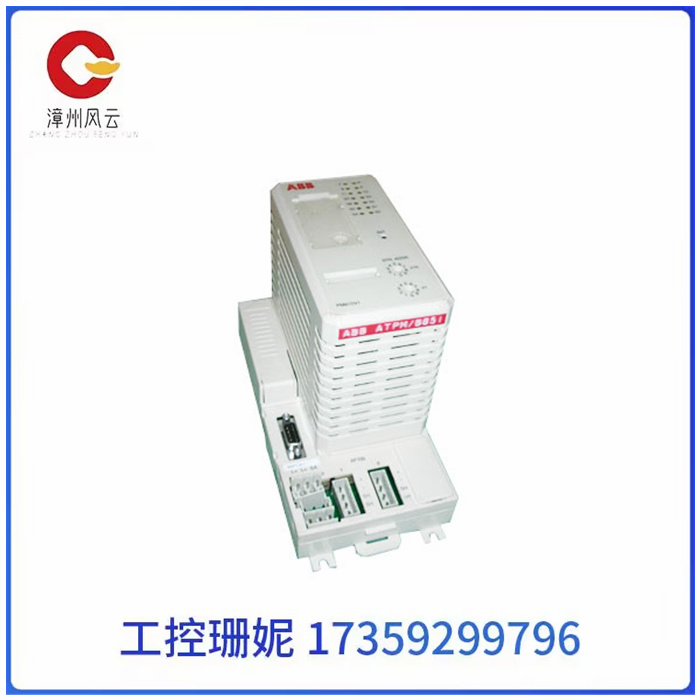

PM810V1 AC70处理器单元 3BSE00850R1

PM810V1 AC70处理器单元 3BSE00850R1

PM810V1 AC70处理器单元 3BSE00850R1

AC800M集成了多种通信功能、可以实现全方位冗余，并且支持宽范围的I/O信号，同时也包括在危险区域的本质安全信号。AC800M控制器通过Compact Control Builder编程软件为其编程组态，使得AC800M控制器可以实现各种控制应用。可重复使用代码和库文件的功能特点也使AC800M的应用程序更加容易组态和建立。

基本逻辑运算到高级控制或二者兼而有之，从少量的I/O点到数千点的应用、从本地安装到远程安装，AC800M都能应付自如。AC800M模件的公共特性之一为低能耗，散热问题几乎可以不予考虑并可以方便地紧凑安装。在多数情况下，AC800M控制器可密闭安装在无风扇、无开口、无空气过滤等类似设备的柜中。因此，许多潜在的故障因素被消除，确保了控制器的高可靠性。

控制器性能

·CPU板上集成供电单元、CPU处理器及内存

·五款不同的控制器类型共用户选择

·分别为PM851、PM856、PM860、PM861、PM864、PM865

·内存存储运行Firmware，控制单元硬件配置信息及应用程序

·支持12个现场总线模块扩展

·集成2个Ethernet接口，2个RS232C接口，ModulBus电气及光纤扩展接口

PM810V1 AC70处理器单元 3BSE00850R1

The AC800M integrates multiple communication functions, enables full redundancy, and supports a wide range of I/O signals, including essential safety signals in hazardous areas. AC800M controller is programmed and configured by Compact Control Builder programming software, so that AC800M controller can realize various control applications. The features of reusable code and library files also make AC800M applications easier to configure and build.

From basic logic to advanced control or both, the AC800M can handle applications from a small number of I/O points to thousands of points, from local installation to remote installation. One of the common features of the AC800M module is low energy consumption, heat dissipation problems can be almost ignored and can be easily compact installation. In most cases, the AC800M controller can be installed in a closed cabinet with no fan, no openings, no air filtration and similar equipment. As a result, many potential failure factors are eliminated, ensuring high reliability of the controller.

Controller performance

· Integrated power supply unit, CPU processor and memory on the CPU board

· Five different controller types for users to choose from

· PM851, PM856, PM860, PM861, PM864, PM865 respectively

· Memory stores Firmware, control unit hardware configuration information, and applications

· Supports 12 fieldbus module expansions

· Integrate 2 Ethernet interfaces, 2 RS232C interfaces, ModulBus electrical and optical fiber expansion interfaces
