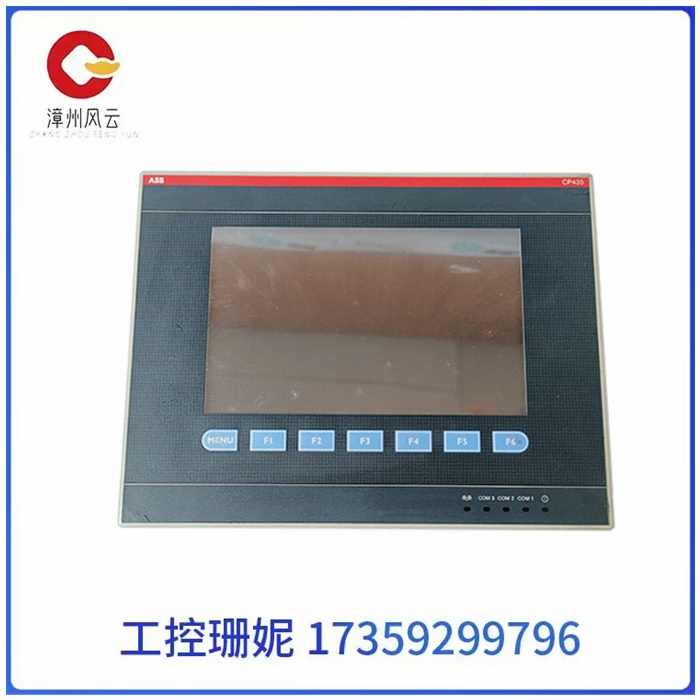

ABB CP435T 1SBP260193R1001全新现货DCS控制系统电源模块

ABB CP435T 1SBP260193R1001全新现货DCS控制系统电源模块

ABB CP435T 1SBP260193R1001全新现货DCS控制系统电源模块

CP435T 1SBP260193R1001可选用FX-USB-AW电缆将计算机与PLC连接起来。在连接时，将电缆的USB头插入计算机的USB接口，电缆另一端插入PLC的编程口内PLC与计算机连接需要用到通信电缆，常用电缆有两种：一种是FX-232AWC-H（简称SC09）电缆，如图所示，该电缆含有RS-232C/RS-422转换器；另一种是FX-USB-AW（又称USB-SC09-FX）电缆，如图所示，该电缆含有USB/RS-422转换器。

在选用PLC编程电缆时，先查看计算机是否具有COM口（又称RS-232C接口），因为现在很多计算机已经取消了这种接口，如果计算机有COM接口，可选用FX-232AWC-H电缆连接PLC和计算机。在连接时，将电缆的COM头插入计算机的COM接口，电缆另一端圆形插头插入PLC的编程口内。

如果计算机没有COM接口，可选用FX-USB-AW电缆将计算机与PLC连接起来。在连接时，将电缆的USB头插入计算机的USB接口，电缆另一端插入PLC的编程口内。将FX-USB-AW电缆插到计算机USB接口时，还需要在计算机中安装这条电缆配带的驱动程序。驱动程序安装完成后，在计算机中选择“设备管理器”，弹出设备管理器窗口，如图所示，展开其中的“端口（COM和LPT）”，从中可以看到一个虚拟的COM端口，图中为COM3，记住该编号，在works2软件进行通信参数设置时要用到。

ABB CP435T 1SBP260193R1001全新现货DCS控制系统电源模块

CP435T 1SBP260193R1001 can use the FX-USB-AW cable to connect the computer to the PLC. In the connection, the USB head of the cable is inserted into the USB interface of the computer, and the other end of the cable is inserted into the programming port of the PLC to connect the PLC and the computer need to use a communication cable, there are two common cables: one is FX-232AWC-H (SC09) cable, as shown in the figure, the cable contains RS-232C/RS-422 converter; The other is the FX-USB-AW (also known as USB-SC09-FX) cable, shown here, which contains a USB/RS-422 converter.

When choosing PLC programming cable, first check whether the computer has a COM port (also known as RS-232C interface), because now many computers have canceled this interface, if the computer has a COM interface, you can choose FX-232AWC-H cable to connect PLC and computer. When connecting, the COM head of the cable is inserted into the COM interface of the computer, and the other end of the cable is inserted into the programming port of the PLC.

If the computer does not have a COM interface, you can choose the FX-USB-AW cable to connect the computer to the PLC. When connecting, the USB head of the cable is inserted into the USB interface of the computer, and the other end of the cable is inserted into the programming port of the PLC. When you plug the FX-USB-AW cable into the USB port of your computer, you also need to install the driver for the cable in your computer. After the driver is installed, select "Device Manager" in the computer, and the Device Manager window will pop up, as shown in the figure, expand the "port (COM and LPT)", from which you can see a virtual COM port, COM3 in the figure, remember the number, which is used in the communication parameter setting of works2 software.
