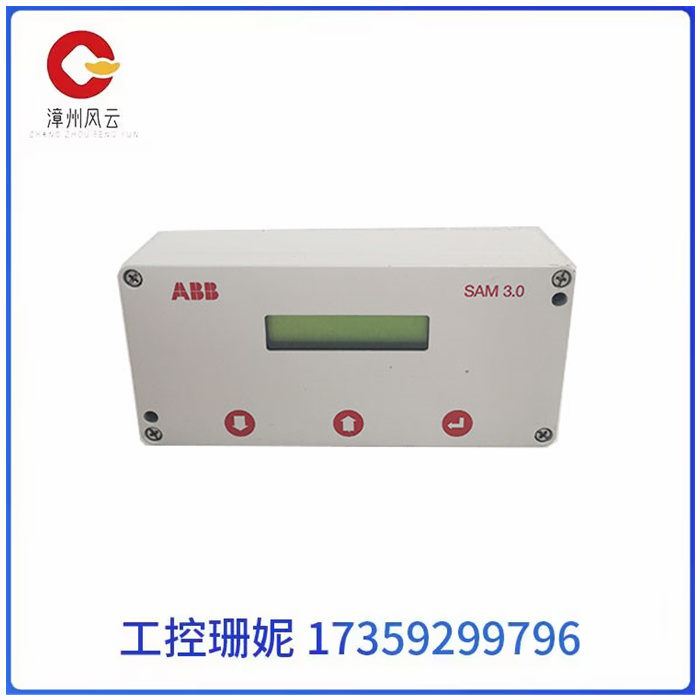

ABB SAM3.0 设计用于恶劣的工业环境

ABB SAM3.0 设计用于恶劣的工业环境

SAM3.0 在其过程控制和报警管理产品系列中引入了EasyView 500系列和8000系列HMI屏幕。EasyView 500系列非常适合成本效益高的操作界面应用，而8000系列则是为更高级的操作界面应用而设计的。这两个系列都设计用于恶劣的工业环境。这个强大的图形面板系列连接到PLC、RTU和其他智能仪器，提供最先进的本地操作员界面(OIT)或更常见的人机界面(HMI)。Easyview系列拥有市场上任何HMI触摸屏中最快的RISC处理器，确保即使是最复杂的图形也能在瞬间调用。使用HMI屏幕从未如此简单。包含EasyBuilder 500图形软件包，确保在下载到EasyView HMI面板之前，可以轻松构建和测试应用程序。

强大的在线和离线模拟提供了最快的开发时间。500系列提供4.3到10英寸的屏幕尺寸(256种颜色)，具有各种功能，如实时时钟、RS232和RS485端口。8000系列提供5.6英寸到15英寸的屏幕尺寸(65536种颜色)，具有各种功能，如实时时钟、RS232/RS485端口、以太网端口、USB端口、声音输出和紧凑型闪存卡插槽。该系列中的所有HMI都具有高亮度彩色TFT屏幕，带有高分辨率触摸屏接口和IP65前面板保护。TFT显示器利用最新的超宽视角屏幕技术，提供高质量的生动显示、卓越的清晰度和长寿命。具有高分辨率模拟电阻式触摸屏允许交互式屏幕对象的多种放置，而不用考虑受限的网格放置。

SAM3.0 对象和窗口可以动态重叠，以实时执行多种功能Easyview支持非常广泛的串行协议，允许连接到当今市场上的大多数PLC，包括艾默生、三菱、欧姆龙、Allen Bradley、西门子和Omniflex自己的Maxiflex PLC/RTU系统，以及许多其他智能仪器。该系列中的一些型号包括一个用于连接多种PLC类型的辅助串行端口，非常适合监控多个PLC。EasyView 500 HMIs也可以主/从配置方式从一个PLC链路连接多个操作员界面。

ABB SAM3.0 设计用于恶劣的工业环境

SAM3.0 introduces the EasyView 500 Series and 8000 Series HMI screens in its family of process control and alarm management products. The EasyView 500 series is ideal for cost-effective operating interface applications, while the 8000 Series is designed for more advanced operating interface applications. Both series are designed for use in harsh industrial environments. This powerful family of graphical panels connects to PLCS, Rtus, and other intelligent instruments, providing the most advanced local Operator interface (OIT) or the more common Human Machine Interface (HMI). The Easyview family has the fastest RISC processor of any HMI touchscreen on the market, ensuring that even the most complex graphics can be invoked in an instant. Using an HMI screen has never been easier. The EasyBuilder 500 graphics package is included, ensuring that applications can be easily built and tested before downloading to the EasyView HMI panel.

Powerful online and offline simulations provide the fastest development time. The 500 series offers screen sizes from 4.3 to 10 inches (256 colors) with a variety of features such as real-time clock, RS232 and RS485 ports. The 8000 series offers screen sizes from 5.6 "to 15" (65536 colors) with a variety of features such as a real-time clock, RS232/RS485 port, Ethernet port, USB port, sound output, and a compact flash memory card slot. All Hmis in the series feature high-brightness color TFT screens with a high-resolution touchscreen interface and IP65 front panel protection. TFT displays take advantage of the latest ultra-wide viewing Angle screen technology to provide high quality vivid display, excellent clarity and long life. A high-resolution analog resistive touch screen allows multiple placements of interactive screen objects without regard to restricted grid placements.

SAM3.0 objects and Windows can be dynamically overlaps to perform multiple functions in real time Easyview supports a very wide range of serial protocols, allowing connectivity to most PLCS on the market today. These include Emerson, Mitsubishi, Omron, Allen Bradley, Siemens and Omniflex's own Maxiflex PLC/RTU systems, as well as many other smart instruments. Some models in the series include an auxiliary serial port for connecting multiple PLC types, ideal for monitoring multiple PLCS. The EasyView 500 HMIs can also connect multiple operator interfaces from a single PLC link in master/slave configuration.
