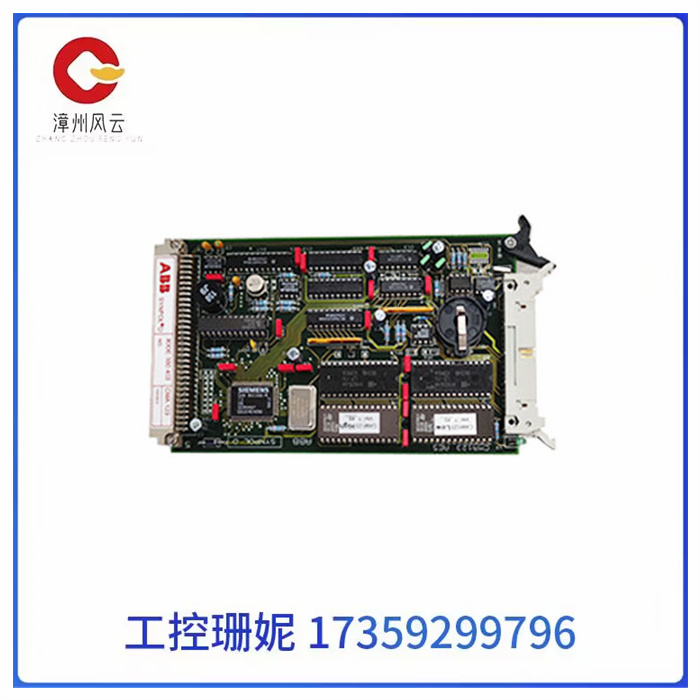

ABB CMA123 应用工控设备DCS/PLC控制系统单元模块

ABB CMA123 应用工控设备DCS/PLC控制系统单元模块

ABB CMA123 应用工控设备DCS/PLC控制系统单元模块

CMA 123 ABB为PROFIBUS PA(和其他现场总线网络)提供了高速、高带宽的主干网，类似于PROFIBUS DP的方式

然而，它通过使用“代理”接口略有不同，代理接口是位于PROFINET和底层总线之间的模块。通过代理的数据路径是完全透明的，现场总线上的仪器看起来像远程IO一样直接连接到PROFINET控制器。

这使得从企业的任何部分对自动化系统的配置、维护和管理变得非常简单。PROFIBUS PA和许多其他总线技术(包括基金会现场总线和WirelessHART)都有代理。代理方法的巨大优势在于，在将工厂升级到PROFINET时，不必替换现有的现场网络，在迁移到工业以太网架构时，对技能和库存的投资得到了保护。

此外， CMA 123 ABB主干网可用于连接过程应用中常见的其他现场设备，例如驱动器和离散IO。由于大多数加工厂是“混合的”(它们包括过程和离散自动化元件)，只需要一个网络PROFINET就可以覆盖整个工厂。

ABB CMA123 应用工控设备DCS/PLC控制系统单元模块

CMA 123 ABB provides a high-speed, high-bandwidth backbone for PROFIBUS PA(and other fieldbus networks) in a manner similar to PROFIBUS DP

However, it differs slightly by using a "proxy" interface, which is a module that sits between PROFINET and the underlying bus. The data path through the agent is completely transparent, and instruments on the fieldbus look like remote IO directly connected to the PROFINET controller.

This makes it very easy to configure, maintain, and manage automated systems from any part of the enterprise. PROFIBUS PA and many other bus technologies (including Foundation Fieldbus and WirelessHART) have agents. The great advantage of the agent approach is that the existing field network does not have to be replaced when upgrading a plant to PROFINET, and the investment in skills and inventory is protected when migrating to an industrial Ethernet architecture.

In addition, the CMA 123 ABB backbone can be used to connect other field devices commonly found in process applications, such as drives and discrete IO. Since most processing plants are "hybrid" (they include both process and discrete automation elements), only a single network PROFINET is needed to cover the entire plant.
