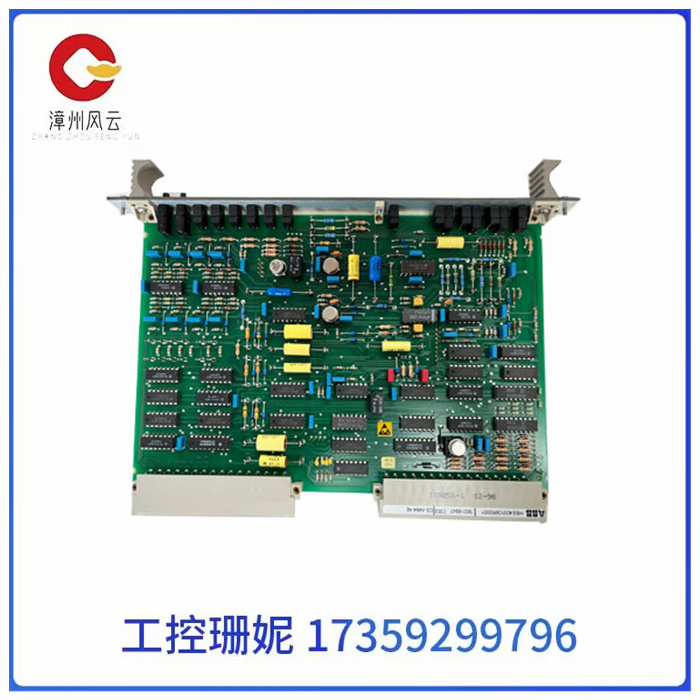

ABB CSA464AE自动化处理器模块

ABB CSA464AE自动化处理器模块

ABB CSA464AE自动化处理器模块

(1)现象压力随温度变化异常波动。当水温26℃时，CSA464AE压力为52psi;当升到32.8℃时，压力为80psi。温度再升高，就因压力超限停车。

(2)首先对压力系统检测，证明压力表指示正常，CSA464AE压力检测回路无误。在室温下，变频器不工作，只在水泵运行时，系统压力在4.25bar左右，压力正常。故障一时查不清楚，而当时生产不允许长时间停车，决定采取临时措施开车，即将控制调节阀的温控器cr72温度范围缩小。温控器采用带有中性区的温度调节如图3所示，输出out1作为反向(关阀)操作，并在测量值低于设定值set1-p03/2-p01时有效，输出保持有效直到测量值返回到set1-p03/2时为止;输出out2作为正向(开阀)操作，并在测量值高于设定值set1+p03/2+p02时有效;输出保持有效直到测量值返回到set1+p03/2时为止。CSA464AE主要参数表修改如附表所示，使温度调节范围缩小。

ABB CSA464AE自动化处理器模块

(1) Abnormal pressure fluctuation with temperature change. When the water temperature is 26℃, the pressure of CSA464AE is 52psi. When raised to 32.8 ° C, the pressure is 80psi. If the temperature rises, we'll stop due to pressure.

(2) First test the pressure system to prove that the pressure gauge indication is normal and the CSA464AE pressure detection loop is correct. At room temperature, the inverter does not work, only when the pump is running, the system pressure is about 4.25bar, and the pressure is normal. The fault was not clear for a while, and at that time the production did not allow a long time to stop, it was decided to take temporary measures to drive, that is, to reduce the temperature range of the temperature controller cr72 of the control valve. The temperature controller adopts the temperature adjustment with neutral zone as shown in Figure 3. The output out1 acts as the reverse (off valve) operation, and is effective when the measured value is lower than the set value SET1-P03/2-P01. The output remains effective until the measured value returns to set1-p03/2. The output out2 is operated forward (open valve) and is effective when the measured value is higher than the set value set1+p03/2+p02; The output remains valid until the measured value is returned to set1+p03/2. The main parameter table of CSA464AE is modified as shown in the attached table to narrow the temperature adjustment range.
