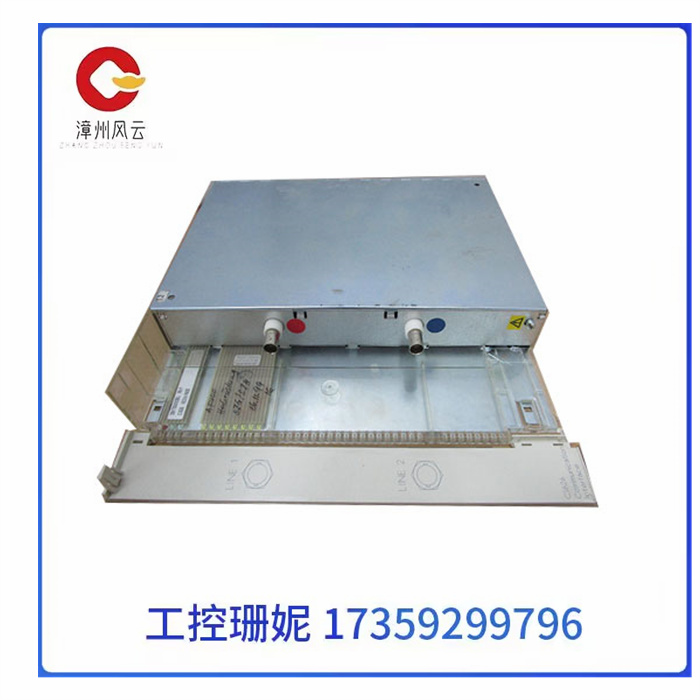

全新库存ABB CI626自动化处理器模块

全新库存ABB CI626自动化处理器模块

全新库存ABB CI626自动化处理器模块

总线:控制计算机中所使用的总线也采用流行的几种微机总线，常见的有(Intel)公司的系统总线(MULTIBUS)、“EOROCARD”标准的VME总线(IEEE1014标准)，这些都是支持多种CPU的16位/32位总线，VME总线采用了针式插座，抗振性好，更适合工业环境使用。

国内开放的部分小型DCS，采用价格低、工作可靠的STD总线，因其是一种8位数据线的总线，不适用于大规模的16位以上的系统。

随着PC在过程控制领域中的广泛应用，PCI总线和ISA总线在中规模的DCS控制站也得到了应用。

I/O通道:从广义上来说，控制站的I/O接口，除过程I/O外，还应包括与高速数据公路的接口、与现场总线(Fieldbus)网的接口。在此，仅介绍过程l/O通道。数量不等(有1、4、8、16、32等)的过程I/O通道组合在一起，设计成卡件形式，称为I/O卡。

一般DCS中的过程I/O通道，有模拟量I/O通道、开关量(或称数字量)I/O通道及脉冲量输入通道等几种。

全新库存ABB CI626自动化处理器模块

Bus: The bus used in the control computer also uses several popular microcomputer buses, common (Intel) company's system bus (MULTIBUS), "EOROCARD" standard VME bus (IEEE1014 standard), these are support for a variety of CPU 16 bit /32 bit bus, VME bus adopts pin socket, good vibration resistance, more suitable for industrial environment.

Some of the small DCS that are open in China use the low-cost and reliable STD bus, because it is an 8-bit data line bus, which is not suitable for large-scale 16-bit or more systems.

With the wide application of PC in the field of process control, PCI bus and ISA bus are also applied in the DCS control station of medium scale.

I/O channel: In a broad sense, the I/O interface of the control station, in addition to process I/O, should also include the interface with the high-speed data highway, and the interface with the Fieldbus network. Here, only the process l/O channels are described. The number of process I/O channels varying (there are 1, 4, 8, 16, 32, etc.) are combined together and designed into the form of cards, called I/O cards.

General DCS process I/O channel, there are analog I/O channel, switching quantity (or digital quantity)I/O channel and pulse quantity input channel.
