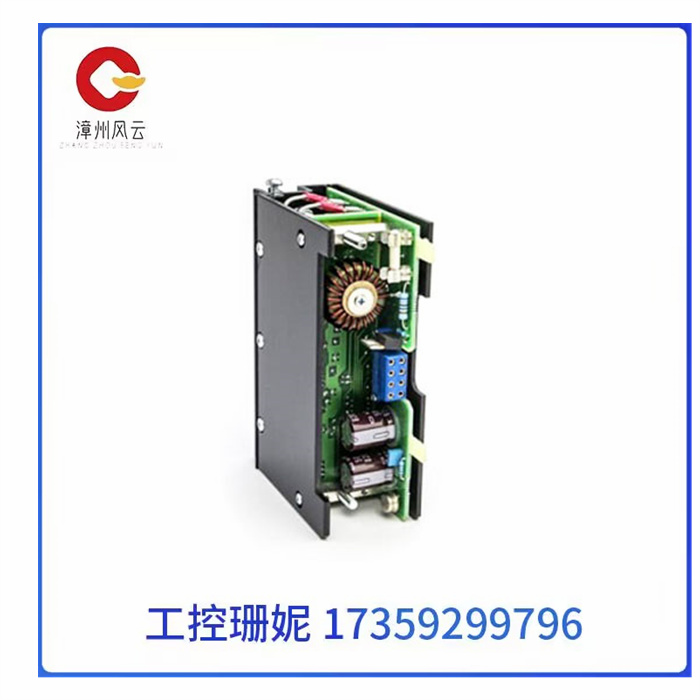

ABB DSSR170 电源装置

ABB DSSR170 电源装置

ABB DSSR170 电源装置

DSSR170 （AC800F模块） 工控系统自动化备件PLC对于电源线带来的干扰具有一定的抵制能力。

在可靠性要求很高或电源干扰特别严重的环境中，可以安装一台带层的隔离变压器，以减少设备与地之间的干扰。

一般PLC都有直流24V输出提供给输入端，当输入端使用外接直流电源时，应选用直流稳压电源。因为普通的整流滤波电源，由于纹波的影响，容易使PLC接收到错误信息。

DSSR170动力线、控制线以及PLC的电源线和I/O线应分别配线，隔离变压器与PLC和I/O之间应采用双胶线连接。将PLC的IO线和大功率线分开走线，如必须在同一线槽内，分开捆扎交流线、直流线，若条件允许，分槽走线，这不仅能使其有尽可能大的空间距离，并能将干扰降到限度。

ABB DSSR170 电源装置

DSSR170 (AC800F module) industrial control system automation spare parts PLC has a certain resistance to the interference brought by the power line.

In environments where reliability requirements are high or where power interference is particularly severe, a layered isolation transformer can be installed to reduce interference between the equipment and the ground.

Generally, PLC has a DC 24V output to provide the input end, when the input end uses an external DC power supply, DC voltage regulation power supply should be selected. Because the ordinary rectifier filter power supply, due to the influence of ripple, it is easy to make the PLC receive error information.

DSSR170 power line, control line and PLC power line and I/O line should be distributed separately, isolation transformer and PLC and I/O should be connected with double rubber wire. The PLC IO line and the high-power line are separated, such as must be in the same line slot, separately bundle the AC line, DC line, if conditions permit, slot line, which can not only make it have as large a space distance as possible, and can reduce the interference to the limit.
