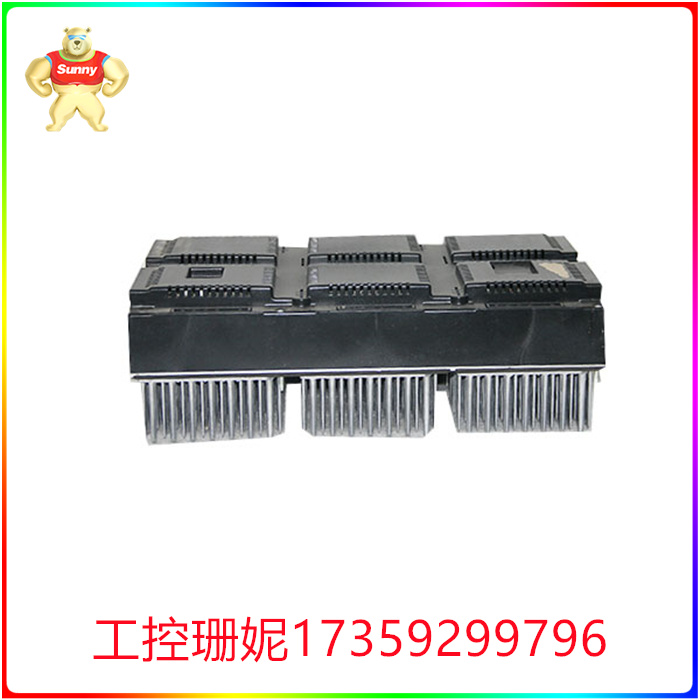

ABB 3HAC025338-006 网口通讯卡机器人驱动器

ABB 3HAC025338-006 网口通讯卡机器人驱动器

ABB 3HAC025338-006 网口通讯卡机器人驱动器

体系概述及项目布景ABBIndustrialIT体系是在ABB原有操控体系基础上发展起来的的企业自动化解决方案。

该体系融传统的DCS和PLC长处于一体并支撑多种世界现场总线标准，特别适合于水泥职业的运用，现在在水泥职业运用广泛。从技能角度介绍AC800F体系在海螺的成功运用。

DCS体系操控网络体系网络分为现场操控层和中心监控层两层网络。层为现场操控层，ABBS800长途I/O选用ProfibusDP通讯标准与AC800F操控器进行通讯，通讯速率高达12MB/s，距离远达1200米，根据项目要求，有些站距离比较远，选用光纤作为传输介质；在现场选用了部分现场总线仪表，选用ProfiBusPA通讯标准与AC800F操控器进行通讯。

ABB 3HAC025338-006 网口通讯卡机器人驱动器

ABBIndustrialIT system is an enterprise automation solution developed on the basis of ABB's original control system.

The system integrates traditional DCS and PLC and supports a variety of world fieldbus standards, which is especially suitable for the application of cement profession, and is now widely used in cement profession. This paper introduces the successful application of AC800F system in conch from the perspective of skills.

DCS system control network System network is divided into field control layer and central monitoring layer two layers of network. ABBS800 long-distance I/O uses ProfibusDP communication standard to communicate with AC800F controller, the communication rate is up to 12MB/s, the distance is up to 1200 meters, according to the project requirements, some stations are far away, choose optical fiber as the transmission medium; Some fieldbus instruments are selected in the field, and ProfiBusPA communication standard is used to communicate with AC800F controller.
