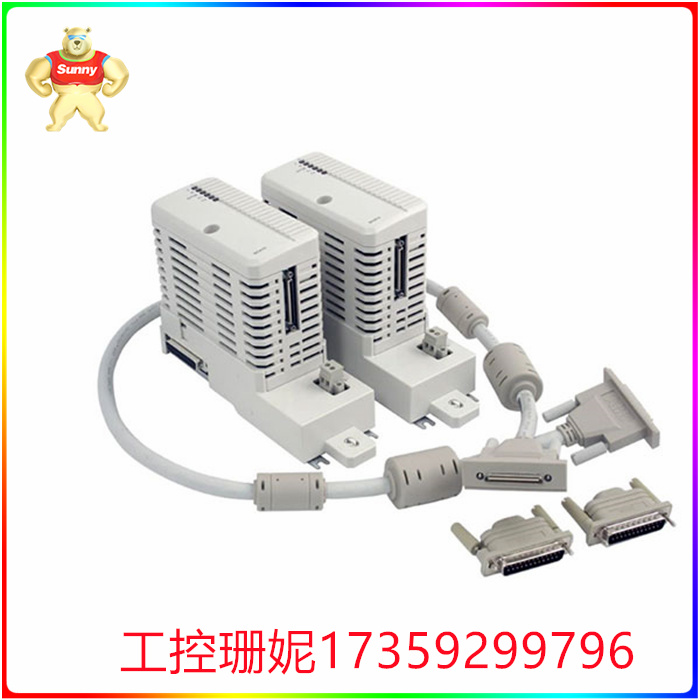

Abb 3BSE031155R1 BC810K02通信卡件

Abb 3BSE031155R1 BC810K02通信卡件

Abb 3BSE031155R1 BC810K02通信卡件

ABB i-bus EIB系统结构的性能使系统可以单一使用，也可以综合使用。系统的基本构成是线，多达64个i-bus总线元件设备连接于总线，组成最小总线线路结构。线与线之间通过线路耦合器进行连接，15条线组成一个区域。通过15个区域耦合器，15个区域可以相互连接，从而构成一个完整的系统。

ABB i-bus EIB系统最多能够支持14 400个元件。一些总线元件还可以控制多达8个独立的电路。一根线的最大长度为1000m，两个元件之间的最大距离为700m。在实际应用中，如果线长需要超过1000m，可采用中继器或光纤连接的方式将线长加以扩展。

ABB i-bus EIB系统的结构使得系统排列紧密、层次分明，且有利于将来对系统的进一步扩容，真正体现了EIB系统的灵活性，这是传统的布线方式所无法比拟的。

Abb 3BSE031155R1 BC810K02通信卡件

The performance of the ABB i-bus EIB system architecture enables the system to be used either single-use or in combination. The basic structure of the system is a line, and up to 64 i-bus bus components are connected to the bus, forming the minimum bus line structure. The lines are connected by line couplers, and 15 lines form an area. With 15 regional couplers, 15 regions can be connected to each other to form a complete system.

The ABB i-bus EIB system can support up to 14,400 components. Some bus elements can also control up to eight separate circuits. The maximum length of one wire is 1000m and the maximum distance between the two components is 700m. In practical applications, if the line length needs to exceed 1000m, the line length can be extended by repeater or optical fiber connection.

The structure of the ABB i-bus EIB system makes the system closely arranged and hierarchical, and is conducive to further expansion of the system in the future, truly reflecting the flexibility of the EIB system, which is unmatched by traditional wiring methods.
