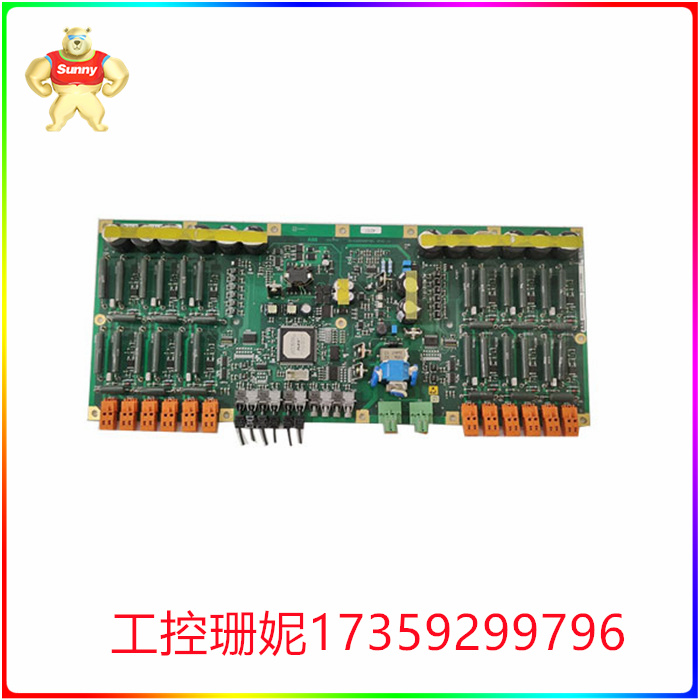

DDC779BE02 3BHE006805R0002控制模块DCS系统板卡

DDC779BE02 3BHE006805R0002控制模块DCS系统板卡

DDC779BE02 3BHE006805R0002在具有严重电磁干扰（EMI）的装置中，屏蔽线运行在导管中，可能需要双屏蔽线或其他预防措施。要选择的速度范围由所需的最大起动转速确定移动速度。

计算转速传感器信号的频率最大原动机速度乘以齿轮速度，单位为每转分钟乘以速度感应齿轮上的齿数并除以60。

选择包含此最大转速传感器的最低转速范围频率显示了开关S1的四个部分及其相应的速度范围。

将开关S1的适当部分设置为接通位置，另一部分设置为将开关S1的三个位置切换到断开位置。速度范围出厂设置为2000至6000 Hz。

参考内部盖以改变速度范围并防止可能的超速。使用错误的速度范围可能导致超速，并导致：设备损坏和/或人身伤害或死亡。

DDC779BE02 3BHE006805R0002 In installations with severe electromagnetic interference (EMI) where the shielded wire runs in the conduit, double shielded wire or other precautions may be required. The speed range to be selected is determined by the maximum starting speed required.

Calculate the frequency of the speed sensor signal The maximum prime mover speed multiplied by the gear speed in minutes per revolution multiplied by the number of teeth on the speed sensing gear and divided by 60.

Selecting the lowest speed range frequency that includes this maximum speed sensor shows the four parts of the switch S1 and their corresponding speed ranges.

Set the appropriate part of switch S1 to the on position and the other part to switch the three positions of switch S1 to the off position. The speed range is factory set from 2000 to 6000 Hz.

Refer to the internal cover to vary the speed range and prevent possible overspeed. Using the wrong speed range can result in excessive speed and result in: equipment damage and/or personal injury or death.
