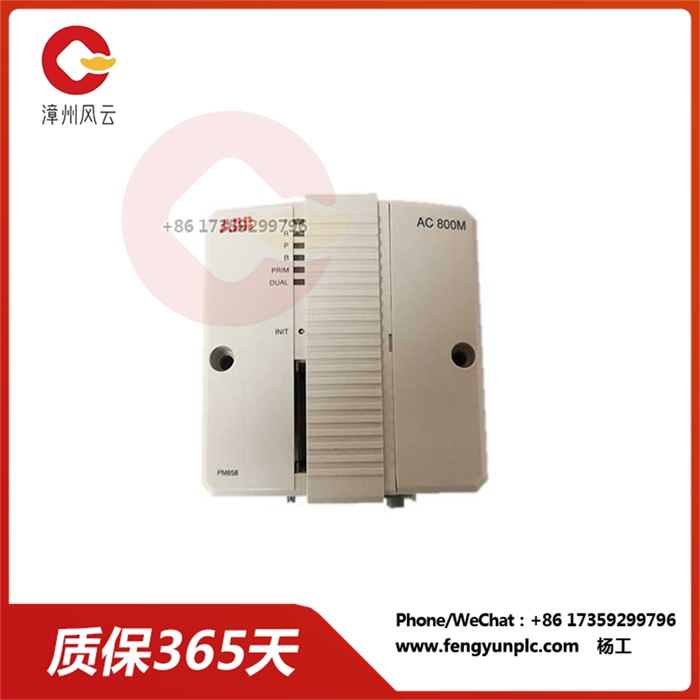

PM858K02 3BSE082896R1 控制器- ac 800m控制器

PM858K02  3BSE082896R1 控制器- ac 800m控制器

CPU板包含微处理器和内存存储器,实时时钟,领导指示灯,INIT按钮和压缩闪存接口。

PM858控制器的底板有两个RJ45以太网端口(CN1 CN2)用于连接控制网络,以及两个RJ45串行端口(COM3 COM4为)。其中一个串行端口(COM3)是带有调制解调器控制信号的rs - 232 - c端口,而另一个端口(COM4为)是隔离的,用于连接配置工具。控制器支持CPU冗余以实现更高的可用性（CPU， cex总线，通信接口和s800 i / o）。

使用独特的滑动和锁定机制进行简单的din导轨连接/拆卸程序。所有底板都提供了一个唯一的以太网地址、为每个CPU提供了一个硬件标识。地址可以在附在tp830底板上的以太网地址标签上找到。

(仅与System 800xA 6.0.2, Compact Control Builder 6.0.0-1及更高版本兼容。有关更多信息，请参阅产品更新。

包装包括：

2个pm858， cpu

2个tp830，底板

2个tb807，模块总线终端器

1个tk850， cex总线扩展电缆

1个TK851， RCU-Link电缆

2 个内存备份电池 （4943013-6） 每个控制器一个

PM858K02  3BSE082896R1 控制器- ac 800m控制器

The CPU board contains the microprocessor and RAM memory, real-time clock, LED indicator, INIT button, and CompactFlash interface.

The baseplate of the PM858 controller has two RJ45 Ethernet ports (CN1 and CN2) for connecting to the control network, and two RJ45 serial ports (COM3 and COM4). One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX bus, communication interface, and S800 I/O).

Simple DIN rail connection/removal procedure with unique sliding and locking mechanisms. All baseboards provide a unique Ethernet address, giving each CPU a hardware identity. The address can be found on the Ethernet address label attached to the TP830 baseboard.

Compatible only with System 800xA 6.0.2, Compact Control Builder 6.0.0-1 and later. For more information, see Product Updates.

The package includes:

2 PM858, CPU

2 TP830, base plate

2 TB807, module bus terminal

1 TK850, CEX bus expansion cable

One TK851, RCU-Link cable

2 memory backup batteries (4943013-6) One for each controller
