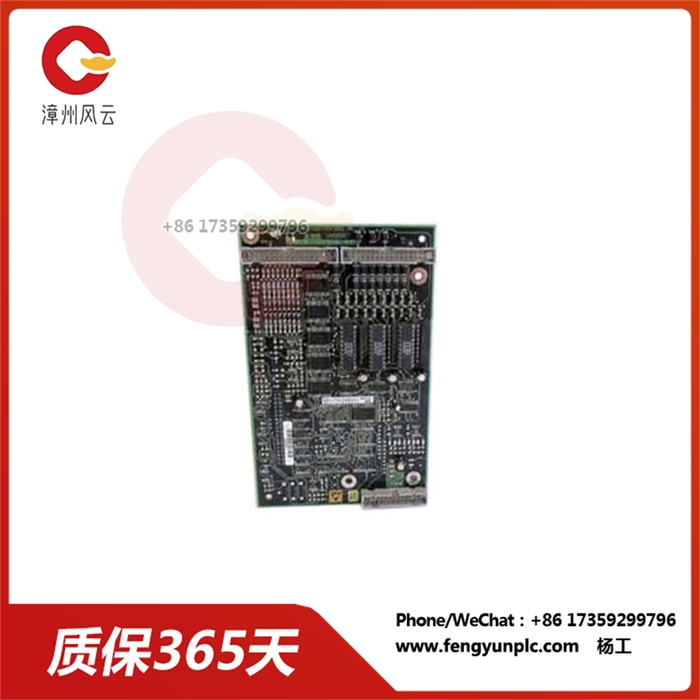

UNS4684A-P,V.1 HIEE305114R00R0001 模拟测量卡

UNS4684A-P,V.1 HIEE305114R00R0001 模拟测量卡

UNS4684A-P，V.1 HIEE305114R00R0001 是一款设计用于工业控制系统的模拟测量卡。 它由西门子制造，是 SIMATIC ET 200MP 产品系列的一部分。 该卡提供四个独立的模拟输入通道，可配置为测量各种电压和电流信号。 该卡专为需要高精度和可靠模拟测量的应用而设计，例如过程控制、机器监控以及测试和测量。

主要特点

4 个独立的模拟输入通道

可配置为电压或电流测量

16 位分辨率

高精度 （0.满量程的 1%）

低噪音

短路和过载保护

通道和电源之间的电流隔离

技术规格

产品编号：UNS4684A-P，V. 1 HIEE305114R00R0001

制造者：西门子

Component Type:工业控制模块

子组件类型：模拟测量卡

通道数： 4

输入类型：电压或电流

分辨率：16 位位

精度：0。满量程的 1%

输入范围：电压：±10 V、±20 V

电流：4 mA 至 20 mA、0 mA 至 20 mA

电源：24 VDC

功耗：约 2 W

工作温度：-20°C 至 60°C

储存温度：-40°C 至 80°C

相对湿度：0% 至 95%（非冷凝）

UNS4684A-P,V.1 HIEE305114R00R0001 模拟测量卡

UNS4684A-P, V.1 HIEE305114R00R0001 is an analog measurement card designed for industrial control systems. It is manufactured by Siemens and is part of the SIMATIC ET 200MP product family. The card offers four independent analog input channels that can be configured to measure a variety of voltage and current signals. The card is designed for applications that require high precision and reliable analog measurements, such as process control, machine monitoring, and test and measurement.

Main feature

4 independent analog input channels

Can be configured for voltage or current measurement

16-bit resolution

High precision (0. 1% of full scale)

Low noise

Short circuit and overload protection

Current isolation between channel and power supply

Technical specification

Product Number: UNS4684A-P, V.1 HIEE305114R00R0001

Manufacturer: Siemens

Component Type: industrial control module

Subcomponent type: Analog measurement card

Number of channels: 4

Input type: voltage or current

Resolution: 16 bits

Accuracy: 0. 1% of full scale

Input range: Voltage: ±10 V, ±20 V

Current: 4 mA to 20 mA, 0 mA to 20 mA

Power Supply: 24 VDC

Power consumption: about 2 W

Operating temperature: -20°C to 60°C

Storage temperature: -40°C to 80°C

Relative humidity: 0% to 95% (non-condensing)
