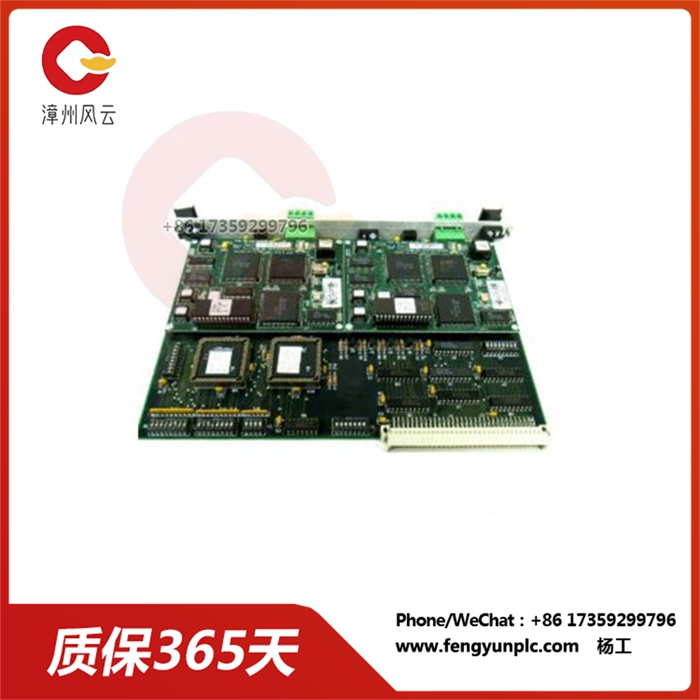

HE700GEN200 数字量模拟卡 PLC控制器

HE700GEN200 数字量模拟卡 PLC控制器

HE700GEN200 数字和模拟 I/O 卡是一种模块化扩展卡，设计用于 PLC（可编程逻辑控制器）系统。它提供了数字和模拟输入/输出 （I/O） 通道的组合，以扩展 PLC 控制器的功能。

主要特点：

数字 I/O 通道：16 个高速数字 I/O 通道，用于控制和监控离散信号。

模拟 I/O 通道：4 个模拟输入通道和 4 个模拟输出通道，用于连接模拟传感器和执行器。

信号范围：模拟输入支持 0-10V、±5V 和 ±10V 的宽信号范围。模拟输出可以生成相同范围内的信号。

隔离：数字和模拟 I/O 通道均采用隔离式设计，可防止电气噪声和干扰。

通讯接口：通过高速背板总线连接到PLC控制器，实现可靠的数据传输。

应用：

HE700GEN200 数字和模拟 I/O 卡适用于需要数字和模拟 I/O 功能的各种工业自动化应用，包括：

过程控制：调节和监测工业过程中的过程变量，如温度、压力和流量。

机器控制：控制和监控机械设备，如机器人、输送机和包装机。

数据采集：收集和处理来自传感器和其他设备的数据，以便进行监控和分析。

测试与测量：在测试和测量应用中执行信号调理、数据分析和控制任务。

工业自动化系统：与工业自动化系统集成，提供数字和模拟 I/O 功能的组合。

好处：

增强的系统功能：扩展 PLC 控制器的 I/O 功能，以处理更广泛的信号。

改进的过程控制：实现对工业过程的精确和高效控制。

提高机器性能：优化机器操作，提高生产率。

用途广泛：适应各种工业自动化需求。

可靠的数据采集：为监测和控制目的提供准确可靠的数据采集。

HE700GEN200 数字量模拟卡 PLC控制器

The HE700GEN200 digital and analog I/O card is a modular expansion card designed for use in PLC (Programmable Logic Controller) systems. It provides a combination of digital and analog input/output (I/O) channels to extend the functionality of the PLC controller.

Main features:

Digital I/O channels: 16 high-speed digital I/O channels for controlling and monitoring discrete signals.

Analog I/O channels: Four analog input channels and four analog output channels are used to connect analog sensors and actuators.

Signal range: Analog inputs support a wide signal range of 0-10V, ±5V, and ±10V. Analog outputs can generate signals in the same range.

Isolation: Both digital and analog I/O channels are designed in isolation to protect against electrical noise and interference.

Communication interface: Through the high-speed backplane bus connected to the PLC controller, to achieve reliable data transmission.

Applications:

The HE700GEN200 digital and analog I/O card is suitable for a variety of industrial automation applications that require digital and analog I/O capabilities, including:

Process control: Regulate and monitor process variables such as temperature, pressure and flow in industrial processes.

Machine control: Control and monitor mechanical equipment such as robots, conveyors and packaging machines.

Data acquisition: Collecting and processing data from sensors and other devices for monitoring and analysis.

Test and measurement: Perform signal conditioning, data analysis and control tasks in test and measurement applications.

Industrial Automation Systems: Integrated with industrial automation systems to provide a combination of digital and analog I/O functions.

Benefits:

Enhanced system capabilities: Expand the I/O capabilities of the PLC controller to handle a wider range of signals.

Improved process control: Achieve accurate and efficient control of industrial processes.

Improve machine performance: Optimize machine operation to increase productivity.

Widely used: to meet various industrial automation needs.

Reliable data acquisition: Provide accurate and reliable data acquisition for monitoring and control purposes.
