07KT98 H4 GJR5253100R3262 基本模块以太网 用作数字输入模拟输出

07KT98 H4 GJR5253100R3262 基本模块以太网 用作数字输入模拟输出

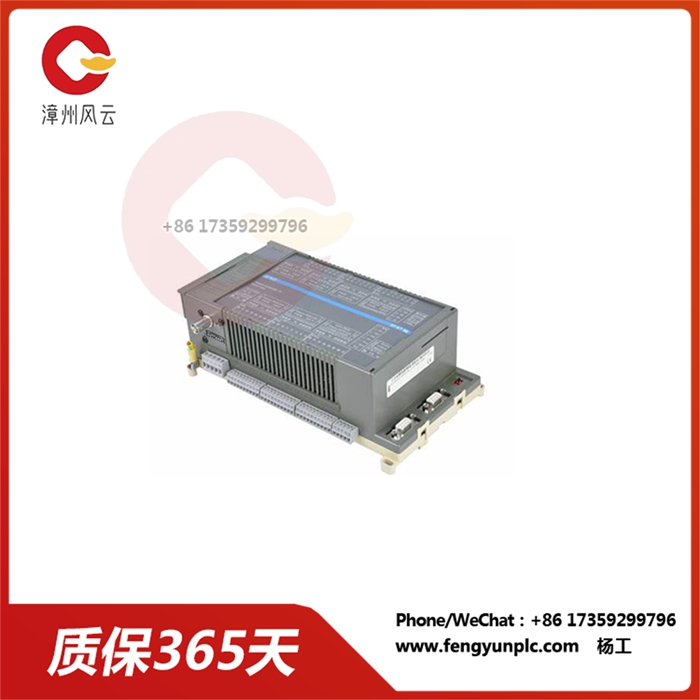

07KT98 H4 GJR5253100R3262是ABB制造的带以太网的基本模块。它是 System 800xA 系列控制模块的一部分，专门设计用于在各种工业自动化应用中提供数字输入、模拟输入、模拟输出和以太网通信功能。07KT98 H4 GJR5253100R3262 是一款多功能且坚固耐用的模块，可用于各种控制系统。

主要特点：

数字输入：该模块提供 24 个数字输入，分为 3 组，每组 8 个，电气隔离。这些输入可用于连接传感器、开关和其他提供数字信号的设备。

模拟输入：该模块提供 1 组 8 个模拟输入，可单独配置为 0...10 V、0...5 V、+10 V、+5 V、0...20 mA、4...20 mA、Pt100（2 线或 3 线）、差分输入、数字输入。这些输入可用于连接提供模拟信号的传感器，例如温度传感器、压力传感器和流量传感器。

模拟输出：该模块提供 1 组 4 个模拟输出，可单独配置为 0...10 V、0...20 mA、4...20 mA。这些输出可用于控制执行器、阀门和其他需要模拟信号的设备。

以太网通信：该模块具有集成的以太网接口，使其能够连接到工业网络并与其他设备和控制系统进行通信。这允许远程监视、控制和数据交换。

紧凑型设计：该模块采用紧凑的外形设计，可轻松集成到控制柜或其他空间受限的环境中。

坚固的结构：该模块采用坚固的结构制造，确保在恶劣的工业环境中具有长期可靠性。

应用：

带以太网的 07KT98 H4 GJR5253100R3262 基本模块适用于广泛的工业自动化应用，包括：

机器控制：监测和控制机械的各个方面，例如位置、速度和温度。

过程控制：管理和调节石油和天然气、石化和制药等行业的工艺参数。

楼宇自动化：控制和优化建筑物中的暖通空调系统、照明系统和安全系统。

运输系统：监督和管理运输系统的操作，例如传送带、分拣机和行李处理系统。

技术规格：

数字输入：24 个，分 3 组，每组 8 个

模拟输入：8，可单独配置

模拟输出：4路，可单独配置

通信：以太网

电源：24 VDC

工作温度：-20°C 至 +60°C

防护等级：IP67防护等级

安装：DIN导轨安装

总体而言，带以太网的 07KT98 H4 GJR5253100R3262 基本模块是一种多功能且可靠的解决方案，可在各种工业自动化应用中提供数字输入、模拟输入、模拟输出和以太网通信。

07KT98 H4 GJR5253100R3262 基本模块以太网 用作数字输入模拟输出

07KT98 H4 GJR5253100R3262 is a basic module with Ethernet manufactured by ABB. It is part of the System 800xA family of control modules specifically designed to provide digital input, analog input, analog output, and Ethernet communication capabilities in a variety of industrial automation applications. The 07KT98 H4 GJR5253100R3262 is a versatile and rugged module that can be used in a variety of control systems.

Main features:

Digital inputs: The module provides 24 digital inputs, divided into 3 groups of 8 each, electrically isolated. These inputs can be used to connect sensors, switches, and other devices that provide digital signals.

Analog inputs: The module provides a set of 8 analog inputs that can be configured individually to 0... 10 V, 0... 5 V, +10 V, +5 V, 0... 20 mA, 4... 20 mA, Pt100 (2-wire or 3-wire), differential input, digital input. These inputs can be used to connect sensors that provide analog signals, such as temperature sensors, pressure sensors, and flow sensors.

Analog output: The module provides 1 set of 4 analog outputs that can be configured individually to 0... 10 V, 0... 20 mA, 4... 20 mA. These outputs can be used to control actuators, valves, and other devices that require analog signals.

Ethernet communication: The module has an integrated Ethernet interface that enables it to connect to industrial networks and communicate with other devices and control systems. This allows remote monitoring, control, and data exchange.

Compact design: The module features a compact form factor for easy integration into control cabinets or other space-constrained environments.

Robust construction: The module is manufactured with a robust construction that ensures long-term reliability in harsh industrial environments.

Applications:

The 07KT98 H4 GJR5253100R3262 base module with Ethernet is suitable for a wide range of industrial automation applications, including:

Machine control: Monitoring and controlling all aspects of machinery, such as position, speed and temperature.

Process control: Manage and regulate process parameters in the oil and gas, petrochemical and pharmaceutical industries.

Building automation: Control and optimize HVAC, lighting and security systems in buildings.

Transportation systems: Supervise and manage the operation of transportation systems, such as conveyor belts, sorters and baggage handling systems.

Technical specifications:

Digital input: 24, divided into 3 groups, each group of 8

Analog input: 8, can be configured separately

Analog output: 4 channels, can be configured separately

Communication: Ethernet

Power Supply: 24 VDC

Operating temperature: -20°C to +60°C

Protection level: IP67 protection level

Mounting: DIN rail mounting

Overall, the 07KT98 H4 GJR5253100R3262 base module with Ethernet is a versatile and reliable solution that provides digital input, analog input, analog output, and Ethernet communication in a variety of industrial automation applications.

07KT98 H4 GJR5253100R3262 基本模块以太网 用作数字输入模拟输出
