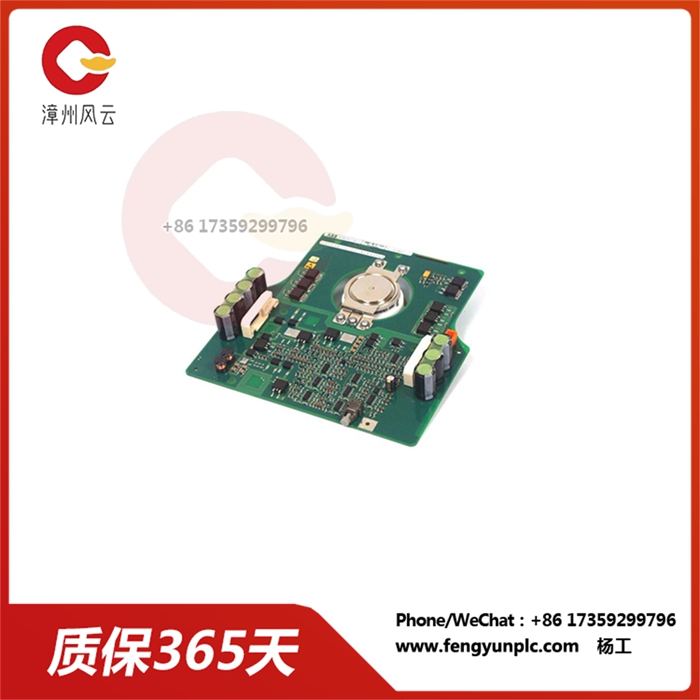

5SHX0660F0001 电流源模拟输出模块 可控硅控制单元

5SHX0660F0001 电流源模拟输出模块 可控硅控制单元

电流源模拟量输出模块

电流源模拟输出模块是一种响应模拟输入信号而产生受控电流的设备。它通常用于工业自动化应用，以控制执行器、阀门和其他需要精确电流信号的设备。

主要特点：

模拟输入：该模块接收模拟输入信号，通常是电压或电流信号，表示所需的输出电流。

电流输出：该模块产生与模拟输入信号成正比的受控电流。输出电流可在指定范围内调节。

高精度：该模块提供高精度和稳定的输出电流，确保对所连接设备的精确控制。

隔离：该模块在输入和输出电路之间集成了电气隔离，可保护控制系统免受现场环境中的电气故障和噪声的影响。

应用：

电流源模拟输出模块用于广泛的工业自动化应用，包括：

过程控制：控制石油和天然气、石化和制药等行业的流速、温度、压力和其他过程变量。

机器控制：调节机床、机器人和输送系统中电机的速度和扭矩。

测试与测量：为电子元件和系统的测试和校准提供精确的电流源。

医疗器械：控制医疗应用（如电疗和疼痛管理）中的电流输送。

SCR控制单元

SCR（可控硅整流器）控制单元是一种控制通过 SCR（可控硅整流器）的电流的设备。SCR 是一种半导体器件，可用于打开和关闭大功率电力负载。

主要特点：

SCR控制：控制单元向 SCR 提供栅极信号，触发其传导或阻断电流。

相位控制：控制单元可以控制触发SCR的相位角，从而可以精确控制平均输出电流。

反馈控制：控制单元可以集成反馈控制机制来调节输出电流或其他参数。

保护特性：控制单元可能包括过流保护、短路保护和热保护等保护功能。

应用：

SCR控制单元用于广泛的工业应用，包括：

电机控制：在泵、风扇和输送机等应用中控制交流电机的速度和扭矩。

照明控制：调光和切换白炽灯、荧光灯和 LED 灯。

电源控制：控制加热器、电池充电器和焊接机等应用中的功率流。

温度控制：调节烘箱、熔炉和其他热处理过程中加热元件的温度。

总体而言，电流源模拟输出模块和可控硅控制单元是多功能且可靠的组件，广泛用于工业自动化应用。它们能够精确控制电流和电压，使其成为各种控制任务的宝贵工具。

5SHX0660F0001 电流源模拟输出模块 可控硅控制单元

Current source analog output module

A current source analog output module is a device that generates controlled current in response to an analog input signal. It is commonly used in industrial automation applications to control actuators, valves, and other devices that require precise current signals.

Main features:

Analog input: This module receives an analog input signal, usually a voltage or current signal, indicating the desired output current.

Current output: This module generates a controlled current that is proportional to the analog input signal. The output current can be adjusted within a specified range.

High precision: The module provides high precision and stable output current, ensuring precise control of the connected device.

Isolation: The module integrates electrical isolation between the input and output circuits to protect the control system from electrical failures and noise in the field environment.

Applications:

Current source analog output modules are used in a wide range of industrial automation applications, including:

Process control: Control flow rates, temperature, pressure, and other process variables for industries such as oil and gas, petrochemical, and pharmaceutical.

Machine control: Adjust the speed and torque of motors in machine tools, robots and conveyor systems.

Test and Measurement: Provides accurate current sources for testing and calibration of electronic components and systems.

Medical devices: Control current delivery in medical applications such as electrotherapy and pain management.

SCR control unit

SCR (thyristor Rectifier) control unit is a device that controls the current through the SCR (thyristor rectifier). SCR is a semiconductor device that can be used to turn on and off high-power electrical loads.

Main features:

SCR control: The control unit provides a gate signal to the SCR, triggering it to conduct or block current.

Phase control: The control unit can control the phase Angle that triggers the SCR, so that the average output current can be precisely controlled.

Feedback control: The control unit can integrate feedback control mechanisms to adjust the output current or other parameters.

Protection features: The control unit may include protection functions such as overcurrent protection, short circuit protection and thermal protection.

Applications:

SCR control units are used in a wide range of industrial applications, including:

Motor control: Control the speed and torque of AC motors in applications such as pumps, fans and conveyors.

Lighting control: Dimming and switching incandescent, fluorescent and LED lights.

Power control: Control power flow in applications such as heaters, battery chargers, and welding machines.

Temperature control: Regulate the temperature of heating elements in ovens, furnaces and other heat treatment processes.

Overall, current source analog output modules and thyristor control units are versatile and reliable components that are widely used in industrial automation applications. They enable precise control of current and voltage, making them an invaluable tool for a variety of control tasks.
