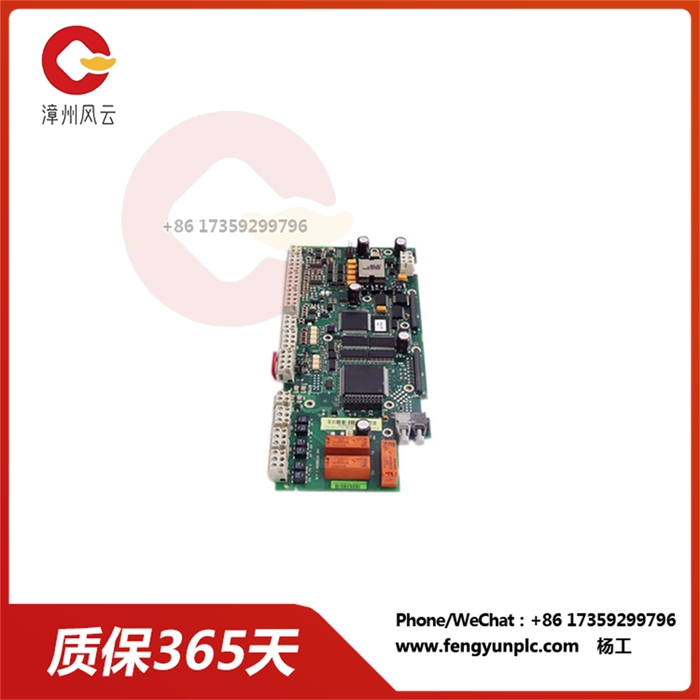

RMIO-12C 模拟量输出模块中央控制处理单元

RMIO-12C 模拟量输出模块中央控制处理单元

RMIO-12C 模拟输出模块。它是一款专为中央控制处理单元 （CPU） 设计的多功能模块，提供 12 个高精度模拟输出通道。RMIO-12C 特别适用于工业控制、测试和测量以及数据采集系统中需要准确可靠模拟信号生成的应用。

RMIO-12C模拟量输出模块的主要特性：

高精度模拟输出通道：RMIO-12C 具有 12 个高精度模拟输出通道，分辨率为 16 位，线性度为 ±0.1%。这样就可以在很宽的范围内精确地生成模拟信号。

灵活的输出范围：每个模拟输出通道都可以配置为各种输出范围，包括 ±10 V、±5 V、±2.5 V 和 0-10 V。这提供了灵活性，可以满足您应用的特定要求。

软件可配置设置：RMIO-12C 允许对各种设置进行软件配置，包括输出范围、失调和增益。这样可以轻松适应不同的信号要求。

低噪声输出：该模块集成了低噪声电路，可最大限度地降低输出噪声并确保信号完整性。这对于需要高精度模拟信号的应用至关重要。

紧凑而坚固的设计：RMIO-12C 专为紧凑而坚固的结构而设计，使其适用于恶劣的工业环境。

RMIO-12C模拟量输出模块的应用：

RMIO-12C 非常适合工业控制、测试和测量以及数据采集系统的广泛应用，包括：

工业控制：RMIO-12C 可用于为执行器、阀门和其他工业设备生成控制信号。

测试与测量：该模块可用于生成精确的模拟信号，用于测试和校准电子设备和仪器。

数据采集：RMIO-12C可用于通过将模拟信号转换为数字数据来从传感器和传感器获取数据。

模拟系统：该模块可用于模拟真实世界的模拟信号，用于培训、研究和开发目的。

自动化测试设备 （ATE）：RMIO-12C可用于ATE系统，以生成测试信号和测量器件性能。

RMIO-12C 模拟输出模块的其他注意事项：

系统要求：仔细考虑系统的具体要求，包括所需的输出范围、信号精度和噪声容限。

软件集成：开发或采购与 RMIO-12C 交互的专用软件，以实现所需的信号生成或数据采集任务。

接地和屏蔽：实施适当的接地和屏蔽技术，以最大限度地减少模拟信号中的噪声和干扰。

散热：考虑模块的散热要求并提供足够的通风。

安装与维护：按照制造商的说明正确安装、配置、维护和排除 RMIO-12C 模块的故障。

RMIO-12C 模拟量输出模块中央控制处理单元

RMIO-12C analog output module. It is a multifunctional module designed for the Central Control processing Unit (CPU) and provides 12 high-precision analog output channels. The RMIO-12C is particularly suitable for applications requiring accurate and reliable analog signal generation in industrial control, test and measurement, and data acquisition systems.

Main features of RMIO-12C analog output module:

High-precision analog output channels: The RMIO-12C has 12 high-precision analog output channels with a resolution of 16 bits and a linearity of ±0.1%. This makes it possible to accurately generate analog signals over a wide range.

Flexible output range: Each analog output channel can be configured for a variety of output ranges, including ±10 V, ±5 V, ±2.5 V and 0-10 V. This provides flexibility to meet the specific requirements of your application.

Software configurable Settings: The RMIO-12C allows software configuration of various Settings, including output range, offset, and gain. This makes it easy to adapt to different signal requirements.

Low Noise output: The module incorporates a low noise circuit that minimizes output noise and ensures signal integrity. This is critical for applications that require high-precision analog signals.

Compact and rugged design: The RMIO-12C is designed for a compact and rugged construction, making it suitable for harsh industrial environments.

Application of RMIO-12C analog output module:

The RMIO-12C is ideal for a wide range of applications in industrial control, test and measurement, and data acquisition systems, including:

Industrial control: The RMIO-12C can be used to generate control signals for actuators, valves and other industrial equipment.

Test and Measurement: This module can be used to generate accurate analog signals for testing and calibrating electronic devices and instruments.

Data acquisition: The RMIO-12C can be used to acquire data from sensors and sensors by converting analog signals into digital data.

Analog Systems: This module can be used to simulate real-world analog signals for training, research and development purposes.

Automated Test Equipment (ATE) : The RMIO-12C can be used in ATE systems to generate test signals and measure device performance.

Other considerations for the RMIO-12C analog Output module:

System requirements: Carefully consider the specific requirements of the system, including the desired output range, signal accuracy, and noise tolerance.

Software integration: Develop or procure specialized software that interacts with the RMIO-12C to achieve desired signal generation or data acquisition tasks.

Grounding and shielding: Implement appropriate grounding and shielding techniques to minimize noise and interference in analog signals.

Heat dissipation: Consider the heat dissipation requirements of the module and provide adequate ventilation.

Installation and maintenance: Properly install, configure, maintain and troubleshoot the RMIO-12C module according to manufacturer's instructions.

RMIO-12C 模拟量输出模块中央控制处理单元
