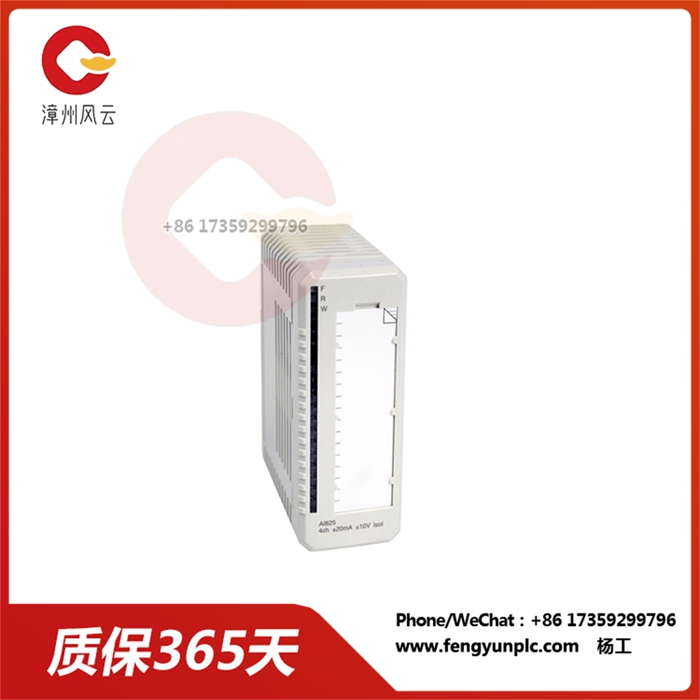

AI825 3BSE036456R1 S800 I/O 模拟量输入模块

AI825 3BSE036456R1 S800 I/O 模拟量输入模块

AI825 3BSE036456R1 S800 I/O模拟量输入模块是ABB生产的一款高性能 工业自动化产品，用于S800 I/O系统。 它设计用于接收和处理来自各种工业传感器和传感器的模拟信号，为过程控制、监控和报警应用提供有价值的数据。

主要特点：

High Accuracy:AI825 模块提供高精度、确保以最小的误差精确测量模拟信号。

宽输入范围：该模块支持各种模拟信号类型的宽输入范围，包括电压，当前和温度。

多渠道支持：该模块提供多个输入通道，可同时处理来自多个传感器或传感器的信号。

隔离：该模块在通道和系统接地之间具有电气隔离功能，可防止噪声和接地环路。

技术规格：

输入类型：模拟电压，当前或温度

输入范围：-10 V 至 +10 V，4 mA 至 20 mA，-40°C 至 150°C（-40°F 至 302°F）（取决于特定型号）

精度：± 0。满量程的 1%

分辨率：16位

更新速率：高达 250 毫秒

工作温度：-25°C 至 70°C（-13°F 至 158°F）

储存温度：-40°C 至 85°C（-40°F 至 185°F）

湿度：5% 至 95% RH（非冷凝）

振动：0。5 g rms，57 至 500 Hz

冲击：5 g，22 ms 半正弦波

应用：

AI825 3BSE036456R1 S800 I/O 模拟量输入模块常用于各种工业自动化应用，包括：

过程控制：监测和控制石油和天然气、化工、食品和饮料等行业的温度、压力、流量和液位等过程变量。

状态监测：通过跟踪振动、温度和其他参数来监测机器的健康和状况，以检测潜在故障并防止故障。

报警系统：根据模拟信号阈值触发报警，提醒操作员注意异常情况或潜在危险。

数据采集：从传感器和传感器收集模拟数据，用于分析、可视化和历史趋势分析。

总体而言，AI825 3BSE036456R1 S800 I/O 模拟输入模块是适用于工业自动化应用的多功能且可靠的组件，可为过程控制、监控、报警和数据采集应用提供准确可靠的模拟信号采集。

AI825 3BSE036456R1 S800 I/O 模拟量输入模块

The AI825 3BSE036456R1 S800 I/O Analog Input module is a high-performance industrial automation product produced by ABB for the S800 I/O system. It is designed to receive and process analog signals from a variety of industrial sensors and sensors, providing valuable data for process control, monitoring and alarm applications.

Main features:

High Accuracy: The AI825 module provides high precision and ensures accurate measurement of analog signals with minimal error.

Wide input range: The module supports a wide input range of various analog signal types, including voltage, current, and temperature.

Multi-channel support: This module provides multiple input channels to process signals from multiple sensors or sensors at the same time.

Isolation: The module has electrical isolation between the channel and system grounding to prevent noise and grounding loops.

Technical specifications:

Input type: Analog voltage, current or temperature

Input range: -10 V to +10 V, 4 mA to 20 mA, -40°C to 150°C (-40°F to 302°F) (depending on specific model)

Accuracy: ± 0. 1% of full scale

Resolution: 16 bits

Update rate: up to 250 ms

Operating temperature: -25°C to 70°C (-13°F to 158°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Humidity: 5% to 95% RH (non-condensing)

Vibration: 0. 5 g rms, 57 to 500 Hz

Shock: 5 g, 22 ms half sine wave

Applications:

The AI825 3BSE036456R1 S800 I/O analog input modules are commonly used in a variety of industrial automation applications, including:

Process control: Monitor and control process variables such as temperature, pressure, flow and level in the oil and gas, chemical, food and beverage industries.

Condition monitoring: Monitors machine health and condition by tracking vibration, temperature, and other parameters to detect potential failures and prevent them.

Alarm system: Triggers alarms based on analog signal thresholds to alert operators to abnormal conditions or potential hazards.

Data Acquisition: Collect analog data from sensors and sensors for analysis, visualization, and historical trend analysis.

Overall, the AI825 3BSE036456R1 S800 I/O analog input module is a versatile and reliable component for industrial automation applications, providing accurate and reliable analog signal acquisition for process control, monitoring, alarm and data acquisition applications.

AI825 3BSE036456R1 S800 I/O 模拟量输入模块
